Monobloc S Air to Water Heat Pump Therma V HM121MR.U34 12kW

Description

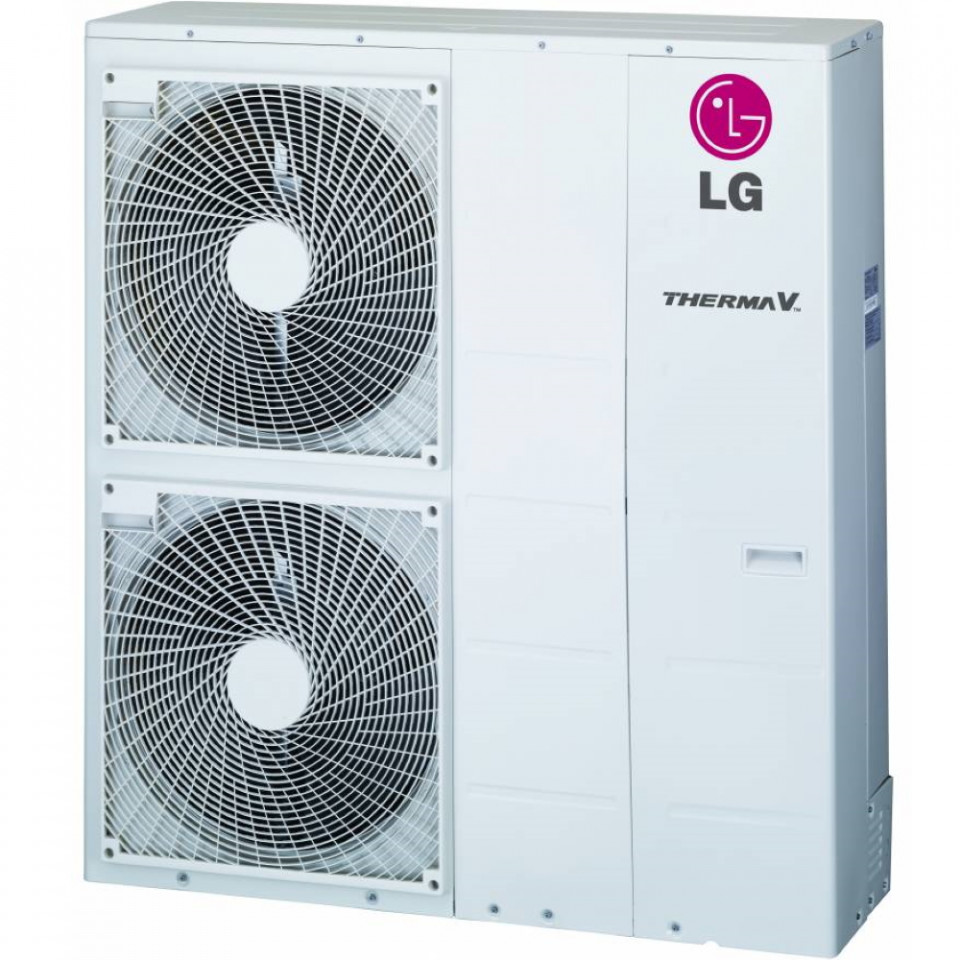

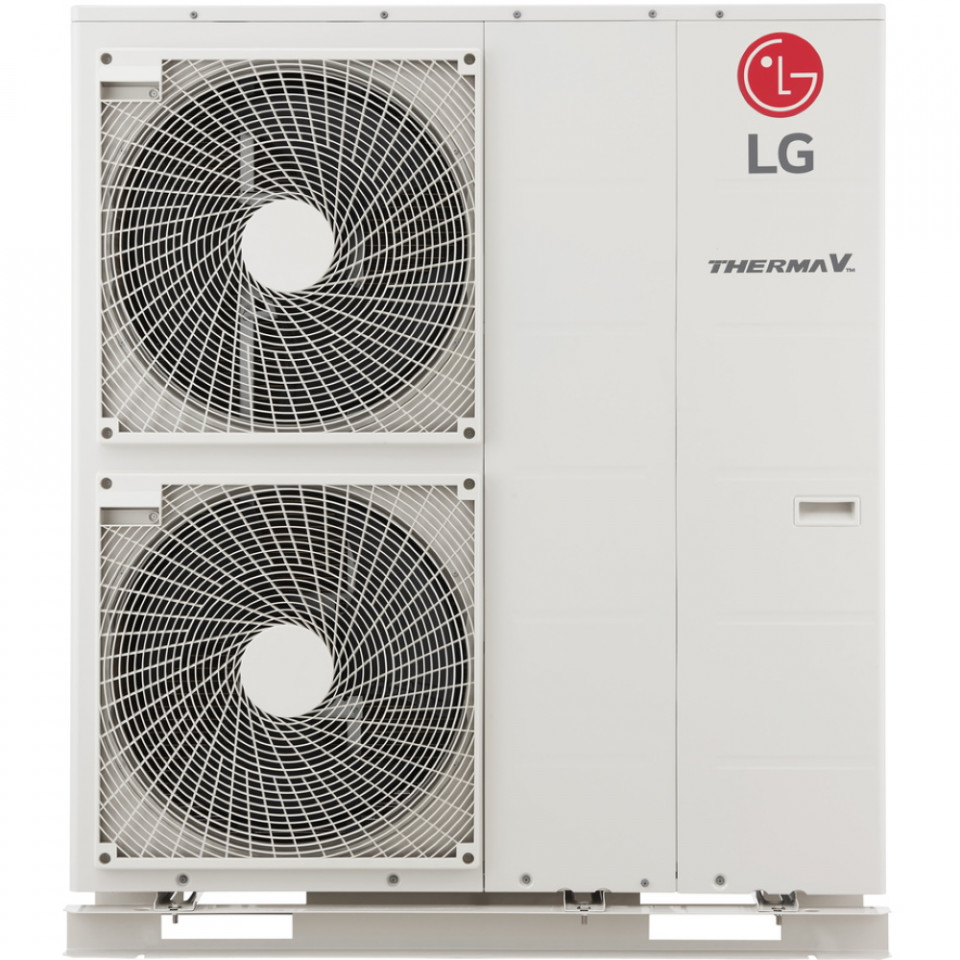

Monobloc S Air to Water Heat Pump LG Therma V HM121MR.U34 12 kW

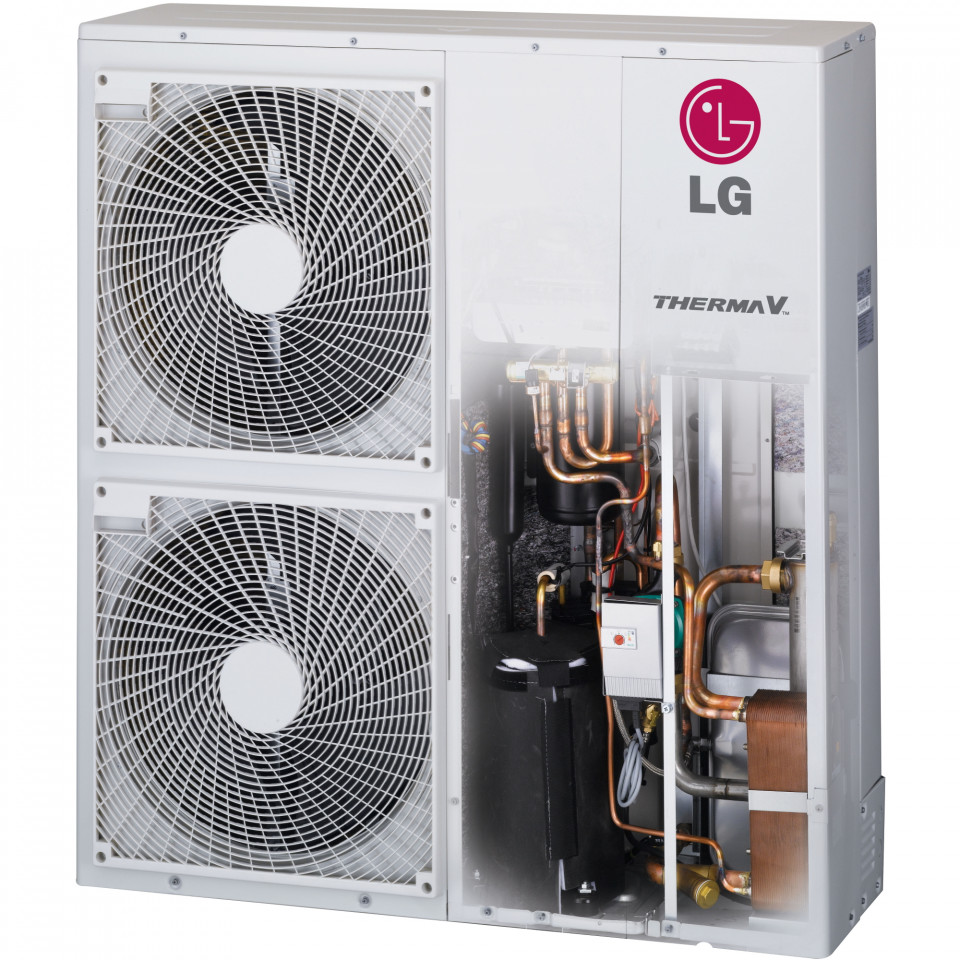

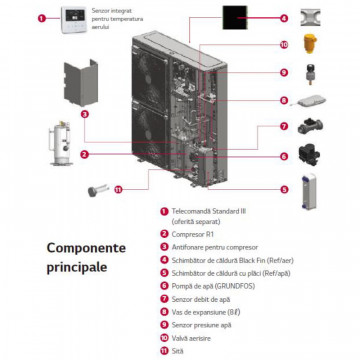

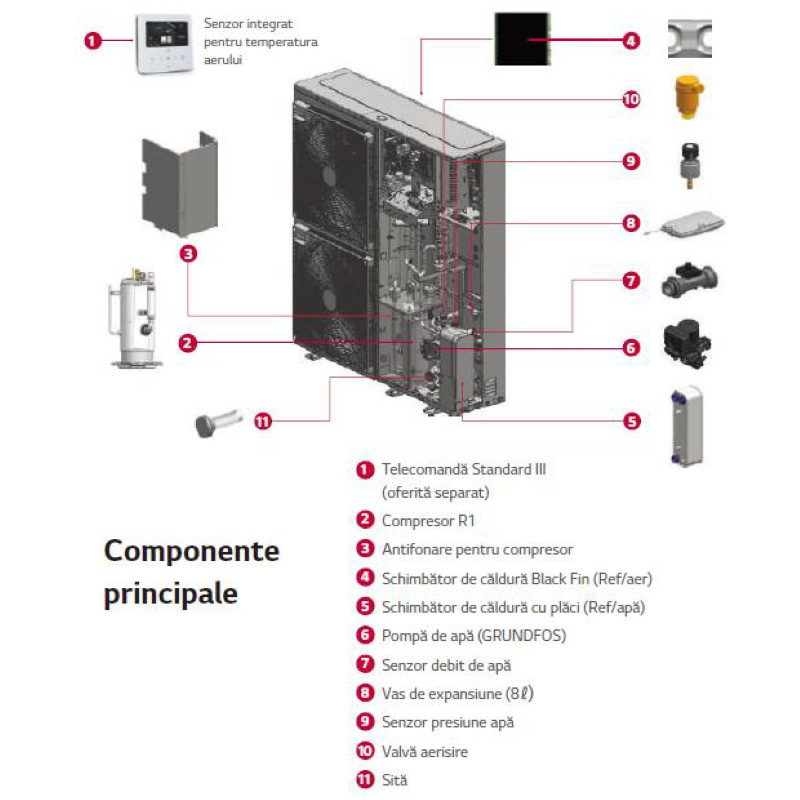

THERMA V Monobloc is a fully packaged piece of equipment, where the indoor and outdoor unit are combined as one module. Therefore, there is no need for refrigerant piping work since Monobloc unit located outside is connected by only water piping. Further, additional water side items such as PHE, Expansion Tank, Water Pump are included in the package.

Excellent Performance

• High Energy Efficiency(SCOP4.45/A+++)
• Excellent Performance at Low Ambient Temperature(100%@-7’C)
• Wide operation Range
• Reduced Noise Level
• Revolutionary Scroll Compressor
• Flash Gas Injection

User Convenience

• New Interface
• LG Wi-Fi Solution(Smart ThnQ)
• 2nd Heating Circuit
• Various Temperature Control Options

Easy Installation & Maintenance

• All In One Concept (No Refrigerant Piping Work)
• Easy Commissioning by PC Tool (LG Heating Configurator)

Revolutionary Compressor

The New Type Scroll Compressor is applied for high-efficiency and reliability. This type of compressor is more advanced compressor compared to the conventional scroll compressor, especially tilting
motion of scroll has been improved. Further, compressor operation range is improved compared to previous model.

• Scroll compressor with simple structure
• High efficiency (low load at low speed / total efficiency)
• Low noise (high speed possible)
• Improved Tilting Motion of scroll
• 20% weight reduction (vs. conventional compressor)

LG WI-FI SOLUTION Simple operation for various functions

• On/Off
• Operation Mode Selection
• Current temperature
• Set temperature
• On/Off Reservation
• Energy Monitoring

Mandatory Accessory: PWFMDD200(LG Wi-Fi Modem) and PWYREW000 (10m extension connect cable in between THERMA V and Wi-Fi module)

Nominal capacity
Nominal capacity Heating 7°C 35°C 12 kW / 7°C 55°C 12 kW / 2°C 35°C 11 kW
Cooling 35°C 18°C 12 kW / 35°C 7°C 12 kW
Rated input power Heating 7°C 35°C 2,61 kW / 7°C 55°C 4,29 kW / 2°C 35°C 3,13 kW
Cooling 35°C 18°C 2,61 kW / 35°C 7°C 4,44 kW
COP Heating 7°C 35°C 4,60 W/W / 7°C 55°C 2,80 W/W / 2°C 35°C 3,52 W/W
EER Cooling 35°C 18°C 4,60 W/W / 35°C 7°C 2,70 W/W
