Oil Burner WM-L20 1-A T monarch

Description

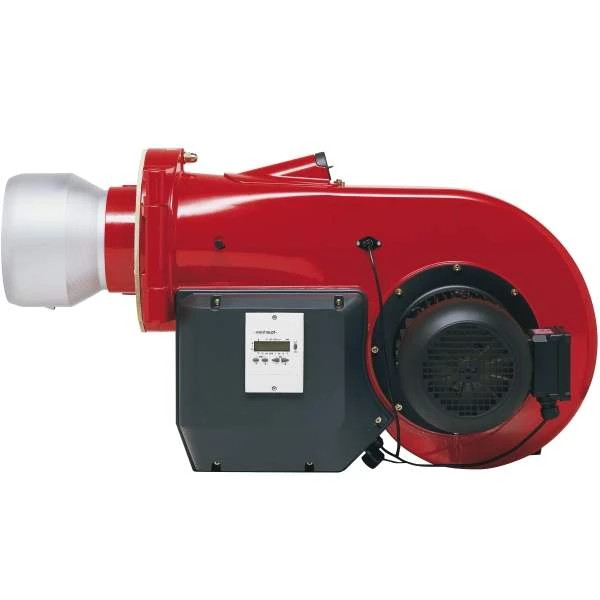

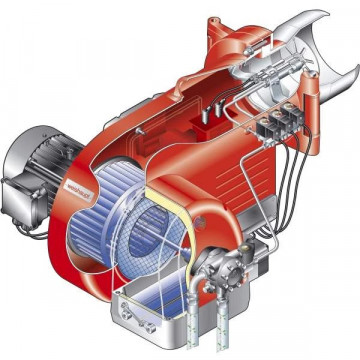

Oil Burner Weishaupt WM-L20 1-A T monarch

Thermal Power = 400-1400 kW

The classic monarch® burner from Weishaupt laid the cornerstone that underlies the brand: reliability. The current range is robust, durable, and equipped with the latest digital technology. Weishaupt monarch® burners are available as gas, oil, and dual-fuel units.

Outstanding price-to-performance ratio
Well-thought-out burner design enables the use of various combustion management systems. That makes it possible to meet customers' requirements cost effectively and to offer a system that will be an all-round good investment.

Versatility
The special matching of the flame geometry to the heat generator's combustion chamber is every Weishaupt burner's recipe for success. The combination of electronic compound regulation and the right Mixing assembly allows customised use on different heat generators thermal process plant.

User-friendly concept
All components, such as those for the control of the fuel and air supplies, are clearly arranged and readily accessible.

Particularly quiet operation
An innovative fan unit and aerodynamic housing design minimises noise development.

Also suitable for biogenic fuels
Weishaupt oil and dual-fuel burners are generally suitable for gas oil and Low-sulphur gas oil (Heizöl EL schwefelarm, per DIN 51603-1). Bio-oil/gas oil blends up to B10 (Heizöl EL A Bio 5 and Heizöl EL A Bio 10, per DIN 51603-6) can also be used in the same way as standard oils without any need for concern – guaranteed

Simple and universal installation
All electrical components have plug connections. The burners can be hinged open to the left or right-hand side.

Futureproof
The digital combustion management system employed by monarch® burners offers the possibility of communication with other systems, enabling the burner to be integrated with building management and other automation systems. Industry standards, like remote control, monitoring, and fault diagnosis, are well understood by Weishaupt.

Special executions
Weishaupt develops and builds burners for almost all applications – including vertically firing versions.

multiflam®
Weishaupt's patented multiflam® technology enables large combustion plant to meet very low emission limits.

Key to the system is a special Mixing assembly that establishes an internal flue gas recirculation. This cools the flame and reduces the formation of nitrogen oxides. The NOx levels that can be achieved are comparable to those of compact burners.

Flue gas recirculation
Weishaupt's 4LN-version burners meet the world's most stringent Emissions limits. A 4LN-version burner is equipped with a flue gas recirculation system that has its control components integrated into the burner.

Gaseous Fuels contain almost no sulphur, and so their flue gases mostly comprise Carbon dioxide (CO₂ ), steam (H₂O), and nitrogen (N₂). This is beneficial to the flue gas recirculation, since there is no ash or soot to contaminate the system.

Special adaptations of the Mixing assembly together with the W-FM200 digital Combustion manager ensure a high degree of flame stability and reliable operational behaviour.

Premix
NOx emission values below 30 mg/kWh are achieved by Weishaupt premix burners.

Premixing followed by surface-stabilised combustion has been state of the art for many years in small condensing boilers. Premix Low-NOx (PLN) burners with NOx Emissions below 30 mg/kWh are the result of further development work at Weishaupt to extend premix technology to burners with larger capacity ranges.

Surface-stabilised combustion relies on a homogeneous gas/air mixture. For that reason, a totally new Mixing assembly was developed for the PLN-version burners. A key feature is the separated gas and air feeds, with the two media not being brought together before the burner tube.
