Oilpur Z A 2120561 Heating oil filter with shutoff for 2 pipe systems

Description

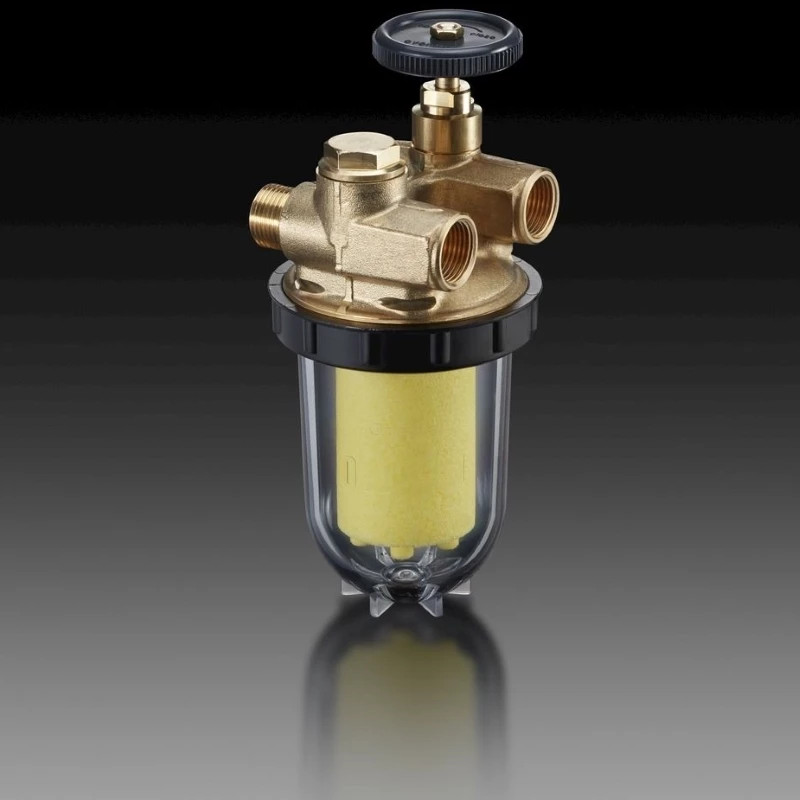

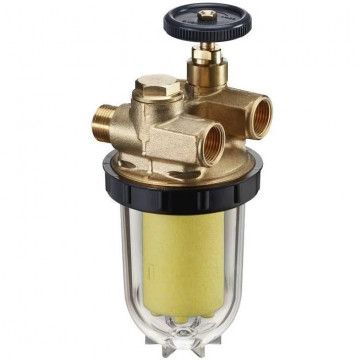

Oventrop Oilpur Z A 2120561 Heating oil filter with shutoff for 2 pipe systems

DN 10, tank side G ⅜ IT, burner side ⅜ ET, sintered plastic 50-75 µm.

"Oilpur" Heating oil filter for two pipe systems

with quick acting isolating valve with double O-ring seal and non-return check valve on the return side. Body made of brass, with bracket, transparent filter cup for suction.

Filter insert: Sintered plastic Siku 50-75 µm

Tank side: Female thread G ⅜ for compression fittings 6, 8, 10 or 12 mm Burner side: Male thread G ⅜ with inner tape for hose connectio
