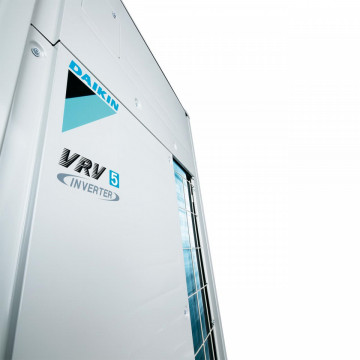

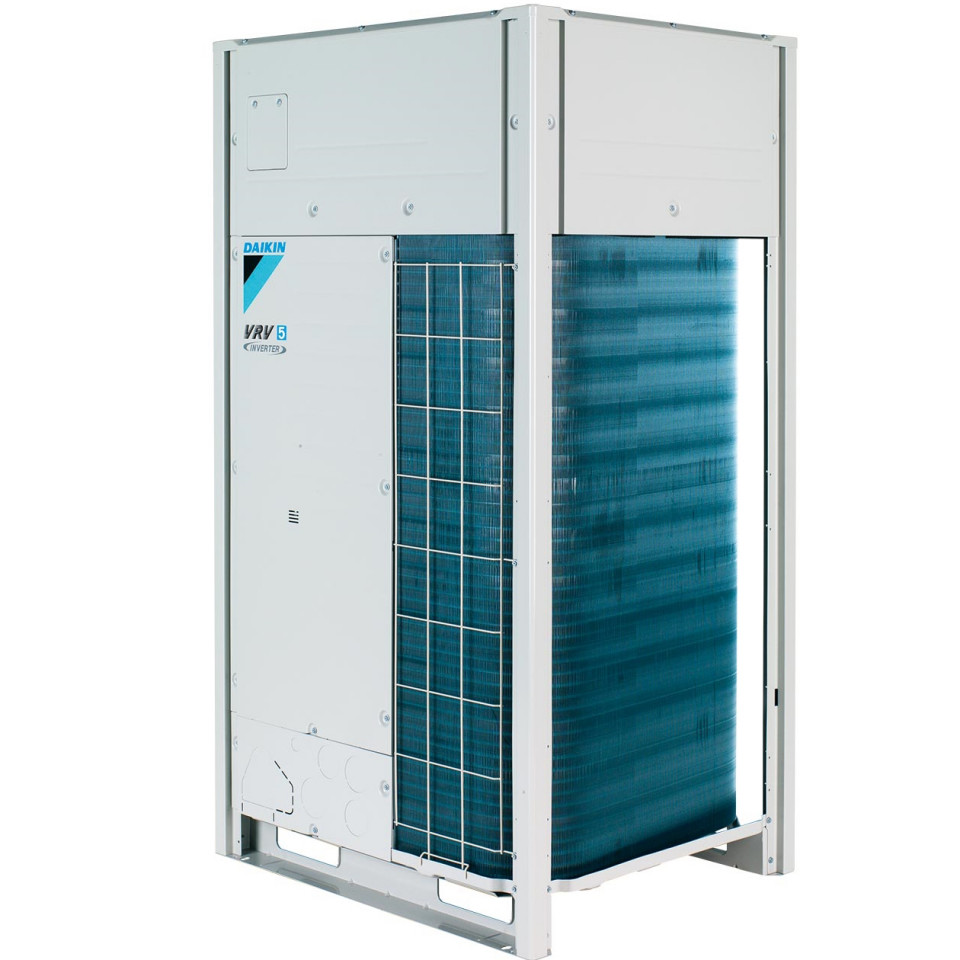

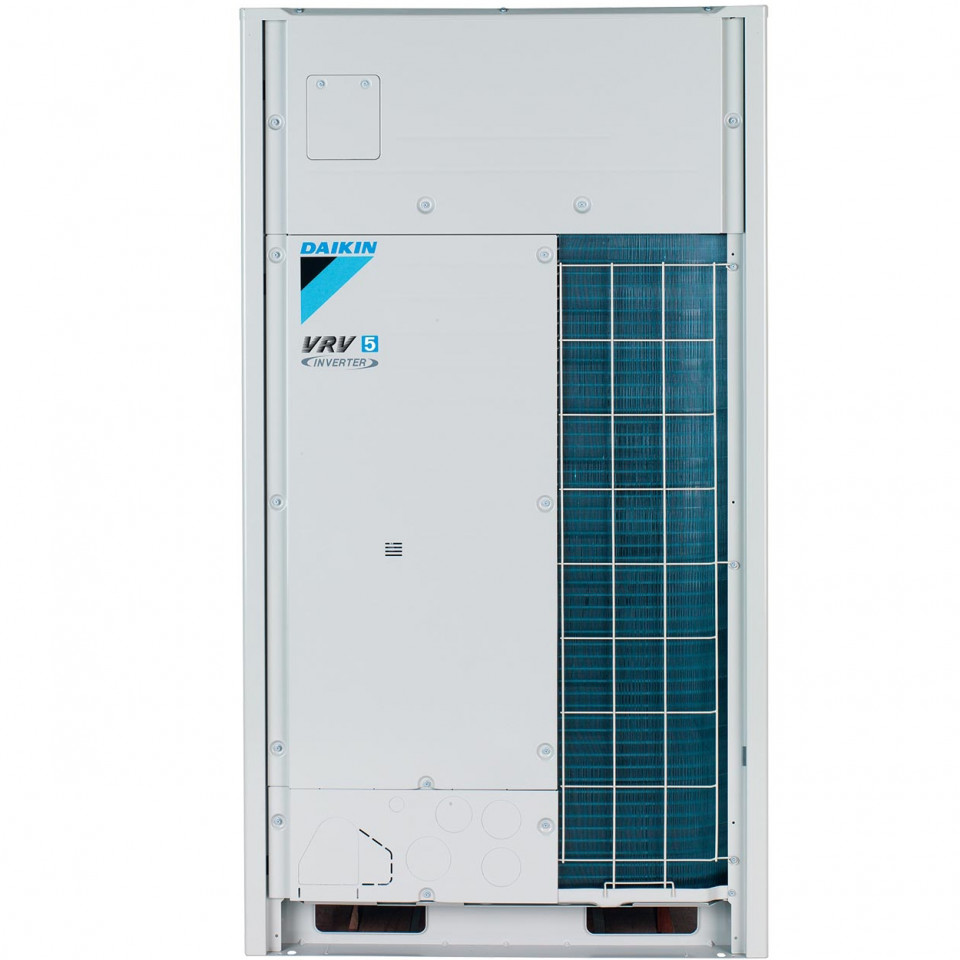

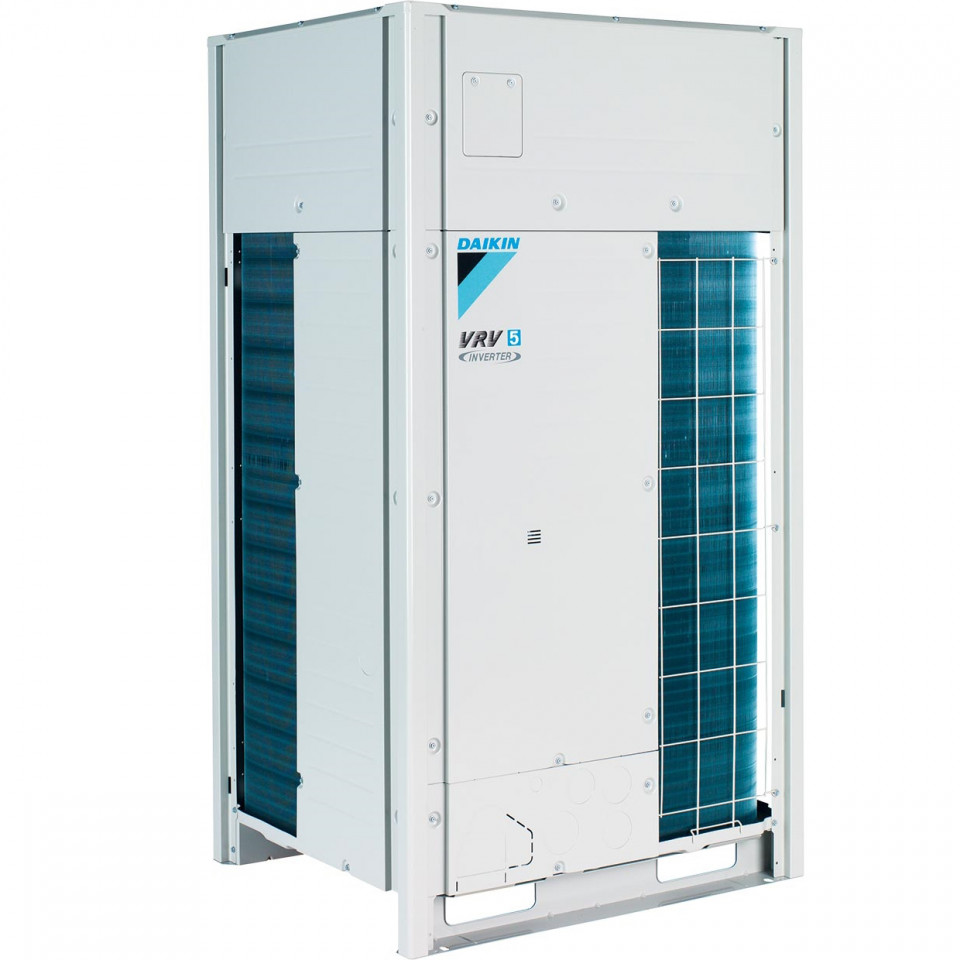

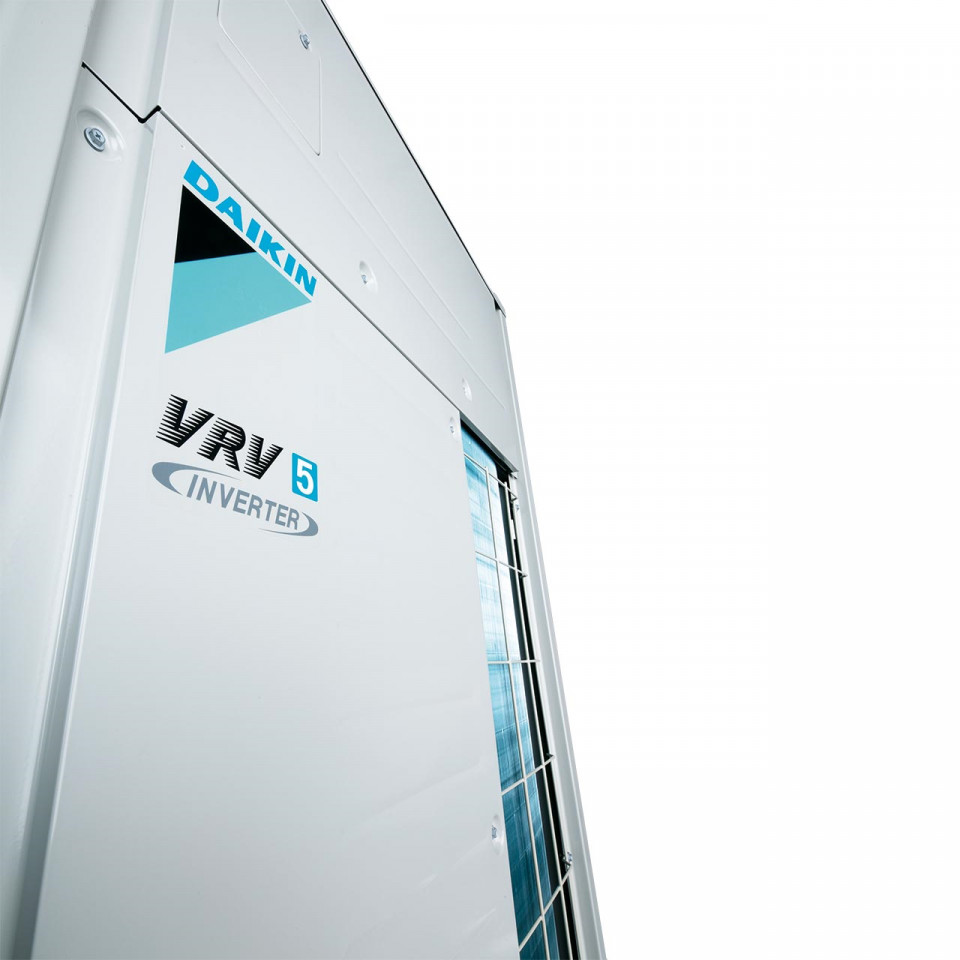

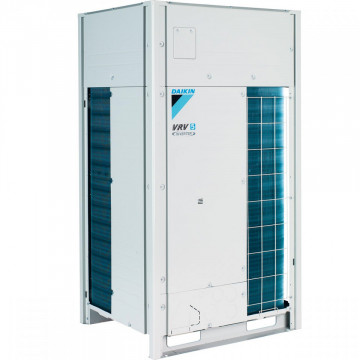

Outdoor unit VRV REYA8A with heat recovery

Description

Outdoor unit VRV 5 Daikin REYA8A with heat recovery

Decarbonisation of buildings made easy VRV 5 Heat Recovery

SUSTAINABLE
Significantly reduces the CO2 footprint of your building
• Reduced indirect impact thanks to high seasonsal efficiency
• ηs,c up to 298.3%, measured with most popular units
• Reduces running costs compared to traditional systems
• Reduced direct impact thanks to lower GWP R-32 refrigerant
• Up to 71% Global Warming Potential reduction compared to R-410A
• Single component refrigerant, easy to recover and reuse
• Reduced F-Gas tightness inspection to only one visit per year

FLEXIBLE
Heat pump technology to fit any commercial building
• Unmatched outdoor unit capacity up to 90kW in heating (28 HP)
• Extensive piping lengths and heights to meet any VRV application
• Quiet operation via 5 low sound steps, bringing sound pressure down to 40 dB(A)
• Completely redesigned BS boxes for faster installation and easier servicing.

UNIQUE SHÎRUDO TECHNOLOGY | Provides peace of mind
• Suitable for any room size: Shîrudo Technology allows the easy installation
of R-32 VRV in any room
• Maximum installation flexibility, thanks to factory-provided refrigerant control measures
• No need for complex studies or field supplied equipment
• 3rd party certification according to the product standard IEC60335-2-40

SUPPORT | Wide network of experts with specialised advice
• Maximise BREAAM/LEED score
• Extra credit thanks to lower GWP of R-32
• Our accredited professionals assist to optimize the design
Our online support software with visual floorplan interface makes design easy and ensures compliance with product standards

WIDEST R-32 PORTFOLIO | Match any application
• Widest range of specifically designed indoor units and air curtains:
11 unit models in 96 variations
• Plug & play ventilation solutions from 150 up to 140.000 m³/h
• Extensive range of intuitive controllers:
• Individual or centralized
• On-premises or in the Cloud

Specifications

Capacity range HP 8
Cooling capacity Prated,c 22.4 kW
Heating capacity Prated, h 22.4 kW, Max. 25.0 kW
Recommended combination 4xFXFA50A2VEB
SEER 7.35
SCOP 4.11
ηs,c 290.8%
ηs,h 161.5%
Dimensions HxWxD 1,685x930x765 mm
Weight 213 kg
Sound power level
Cooling 78.3 dB(A)
Heating 82.4 dB(A)
Sound pressure level Cooling 56.3 dB(A)
Operation range Cool./Heat. Min/Max °CDB/°CWB -5 ~ 46/ -20 ~ 16°C
Refrigerant Type/GWP R-32 / 675.0
Charge tCO2eq/ kg kg 9.00/6.08

Piping connections
Liquid OD 9.52 mm
Gas OD 19.1 mm
H/P/LP gas OD 15.9 mm
Tot. pip. length Sys. actual 1,000 m
Power supply Phase/Freq./ Voltage Hz/V 3N~/50/380-415
Current - 50Hz Max. fuse amps (MFA) 20 A
