Pellet Boiler Grande C-R 28

Description

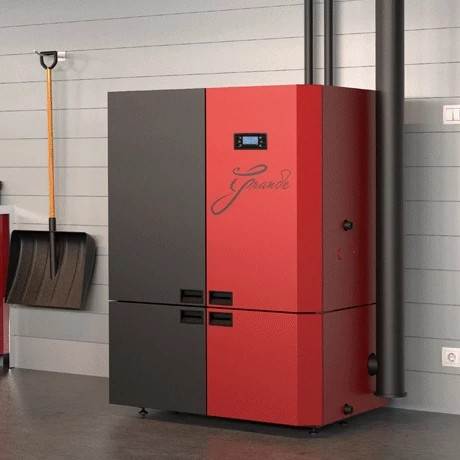

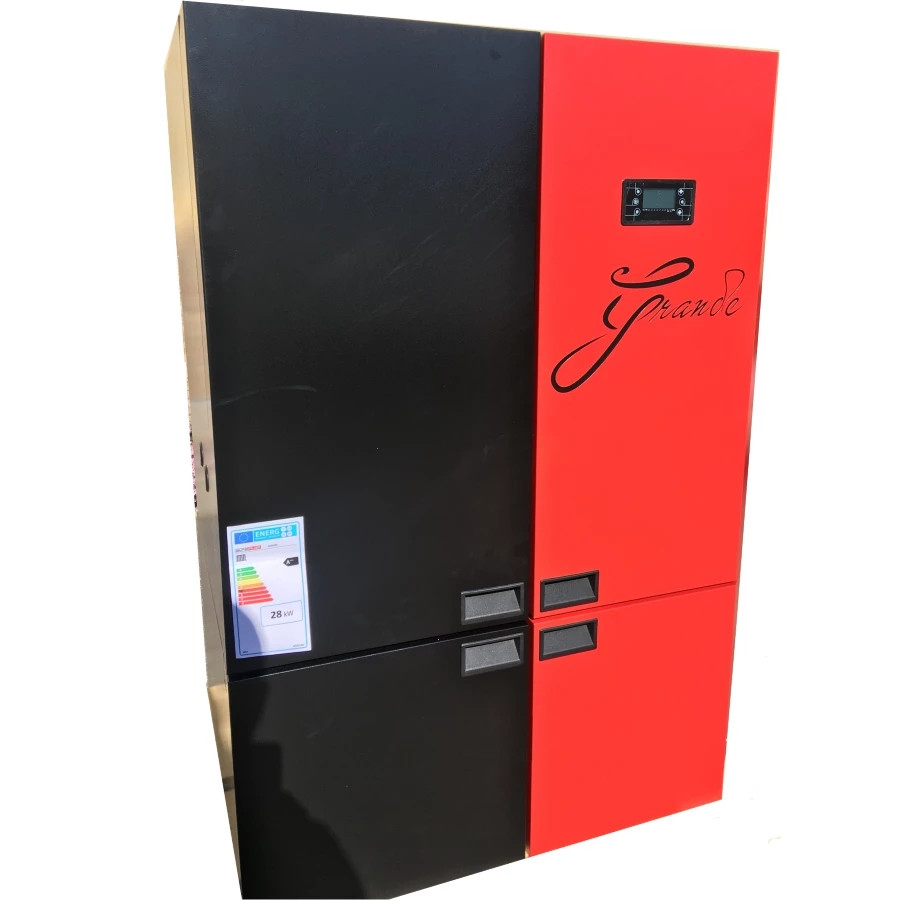

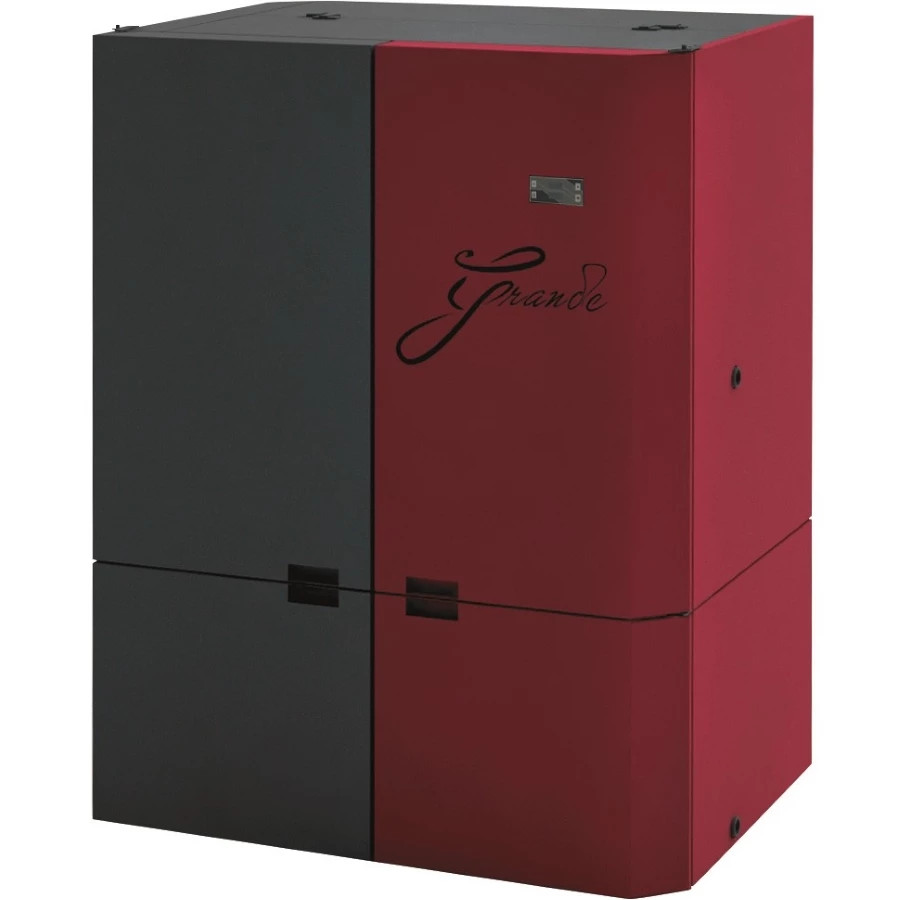

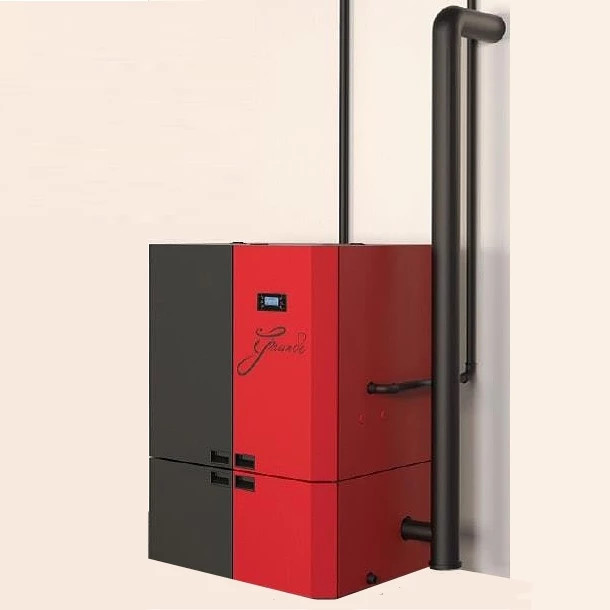

Pellet Boiler Alfaplam Grande C-R 28

• The casing made of quality sheet metal, protected with paint and varnish resistant to high temperatures.
• The steel fire box door.
• The boiler made of boiler sheet metal.
• Thermal insulation of the boiler with mineral wool.

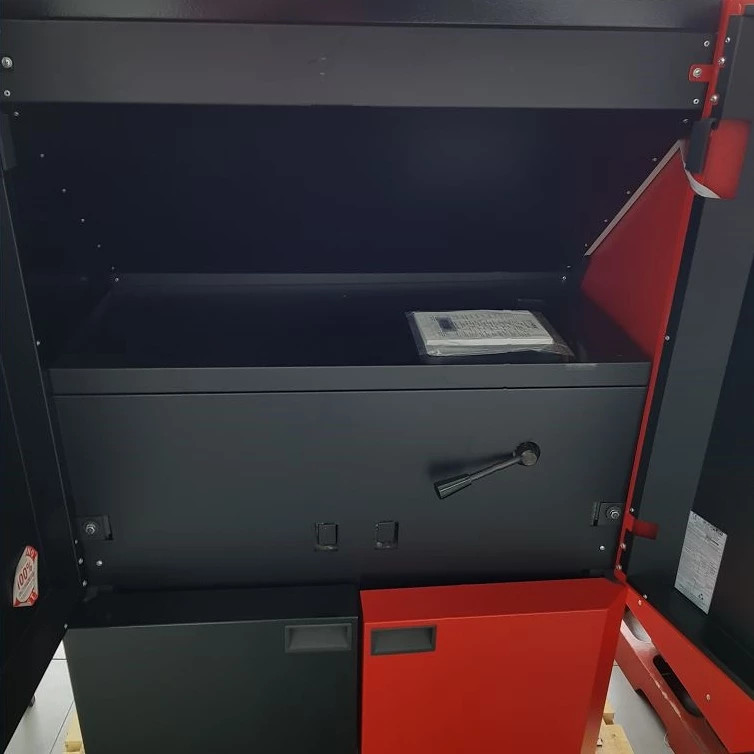

• Compartment for maintenance accessories is located in the upper part of the boiler under the pellet hopper.
• For control of combustion process, the following items are fitted in:
  * very advanced firmware with large space for adjustment and compatibility of various configurations of heating systems;
  * optional buffer connection, additional pellet hopper, pellet level sensor;
  * encoder control enabling continual and even supply of pellet providing better operation;
  * state-of-art LCD Touch Panel;
  * optional: remote control by means of SMS messages and by means of android and iOS application.
• Variable parameters enabling precise boiler operation to a considerable amount.

Specifications

Boiler power 8,65-30.8 kW
Efficiency 91.92-91,94%
Consumption of pellets per hour 1.92 kg / h - 6.82 kg /h
Combustion period in hours 93,8 - 26,4
Emissions of CO (at 10% O2) 155 mg/m³ - 10 mg/m³
Exhaust gas temperature 56,8 - 114,9
Exhaust mass flow 0,0071 - 0,0152
Chimney connection Ø80 mm
Weight 310 kg
Fuel Pellet C1
Boiler Class according to EN 303-5:2012 5
Boiler Class ( fuel) C1
Water content in litres 74 l
Maximum water temperature 95°C
Setting range for water temperature 65°C -80°C
Minimal return temperature 50°C
Maximum working pressure 2 bar
Water-side resistance 38 mbar
Chamber volume 60,44 l
Pellet tank ~ 200 kg
Chimney draft 0,11 (±0,0 2) mbar
Supply voltage 220 V
Current during highest power consumption 1,80 A
Frequency 50 Hz
Highest power consumption during operation of the boiler 78,5 W
Lowes power consumption during operation of the boiler 19 W
Highest power consumption at turning the boiler 280,5 W
Degree of safety IP 20
Heating appliance is running with using a fan YES
Heating appliance is working with under pressure at flue gas outlet YES
Heating appliance is working under non condensing conditions YES
Noise Less than 70dB
