Photovoltaic solar kit 4 kWp M Ecosole PV

Description

Photovoltaic solar kit 4 kWp M with 10 panels Ferroli Ecosole PV

Installing a residential solar power system is a great way to do the right thing for the environment and cut energy costs over the long term. In addition, many governments and municipalities offer financial support for solar power system installation as well as pay you for excess power fed into the grid, so even when youre not using the system it is still working for you.

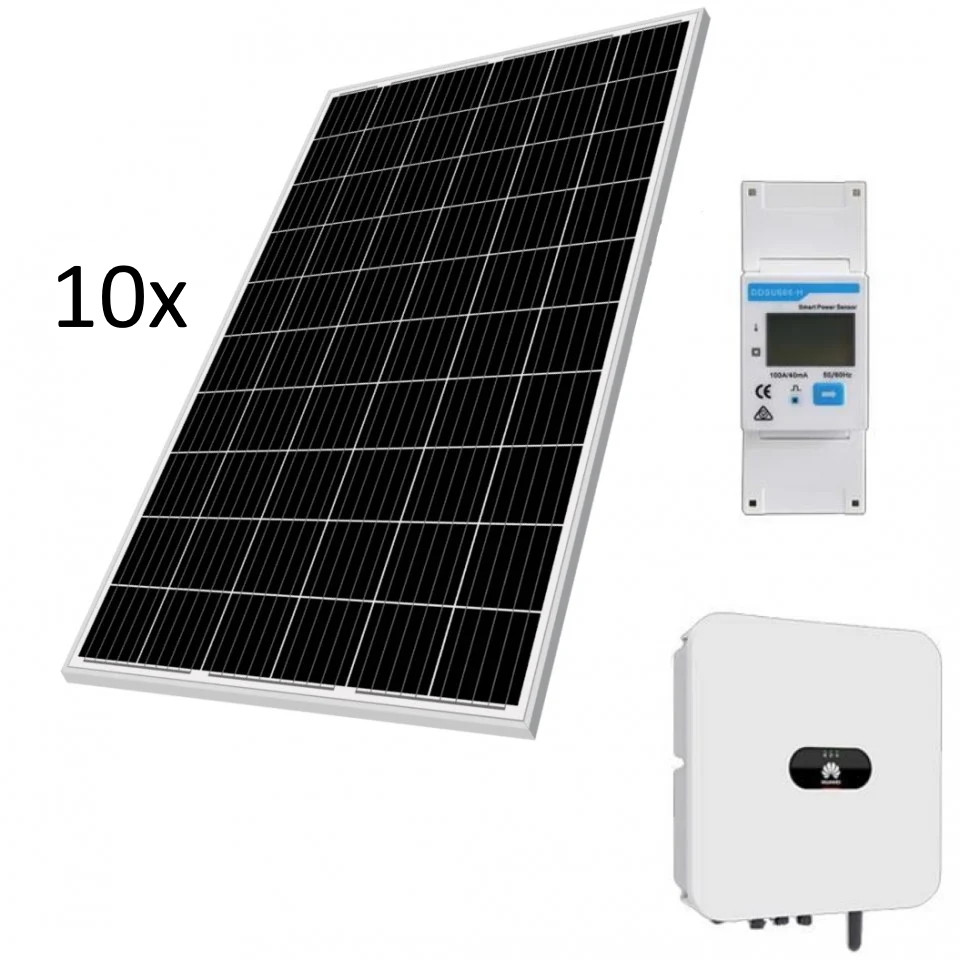

The package includes:

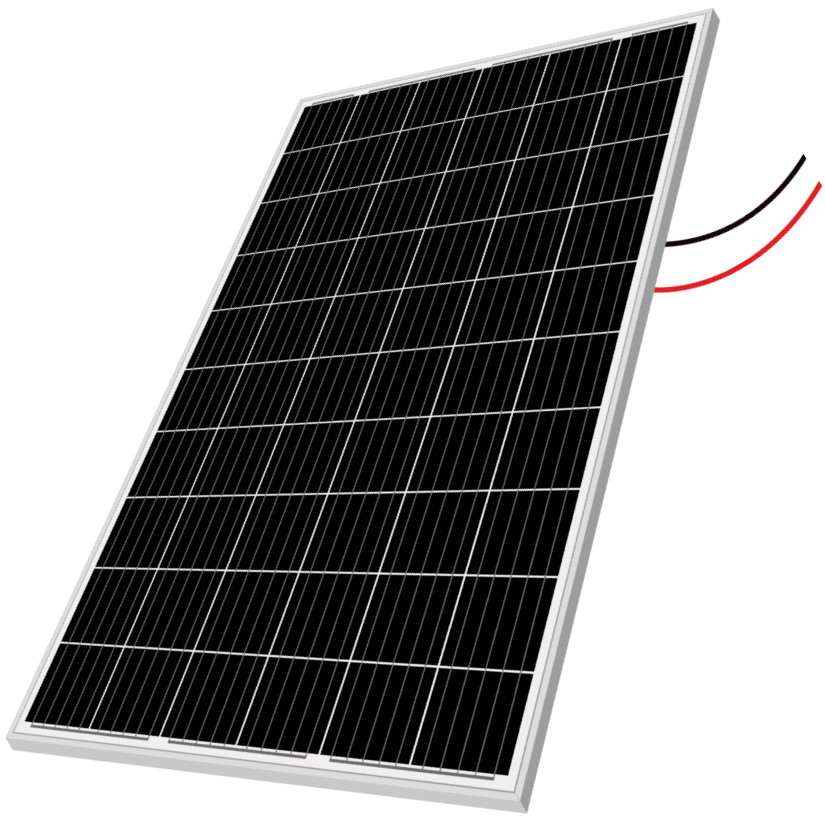

Monocrystalline photovoltaic panels ECOSOLE PV 450 W 10 pieces. Panel weight: 23.5 kg. Size 2094x1038x30 mm. Efficiency: 20.7%. Power tolerance 0~+5w
Support photovoltaic panels for the roof. The panel mounting system is for pitched roofs (tile or sheet). The type of roof must be specified when ordering the package.
Cable set for panels 100 ml. Solar cable set (+/-) 4mm²
MC4 solar cable connectors (1 set = 2 pcs) 4 sets. Nominal current: 30A. Nominal voltage 1000 VDC
Huawei SUN2000-6KTL-L1 inverter. Inverter ON GRID, Single-phase, maximum 6KVA
Smart meter DDSU666-H, single-phase. Huawei meter with smart power sensor.

Ecosole PV operating parameters:

Maximum system voltage: 1000 V/1500 V DC
Operating temperature: -40 ~ +85°C
System fuse capacity: 20 A
Maximum mechanical load in snow: 5400 Pa
Maximum mechanical load in the wind: 2400 Pa
Temp. nominal operating cell: 45°C±2°C
Usage class: Class A
