Photovoltaic system 5 kWp M Vitovolt 300

Description

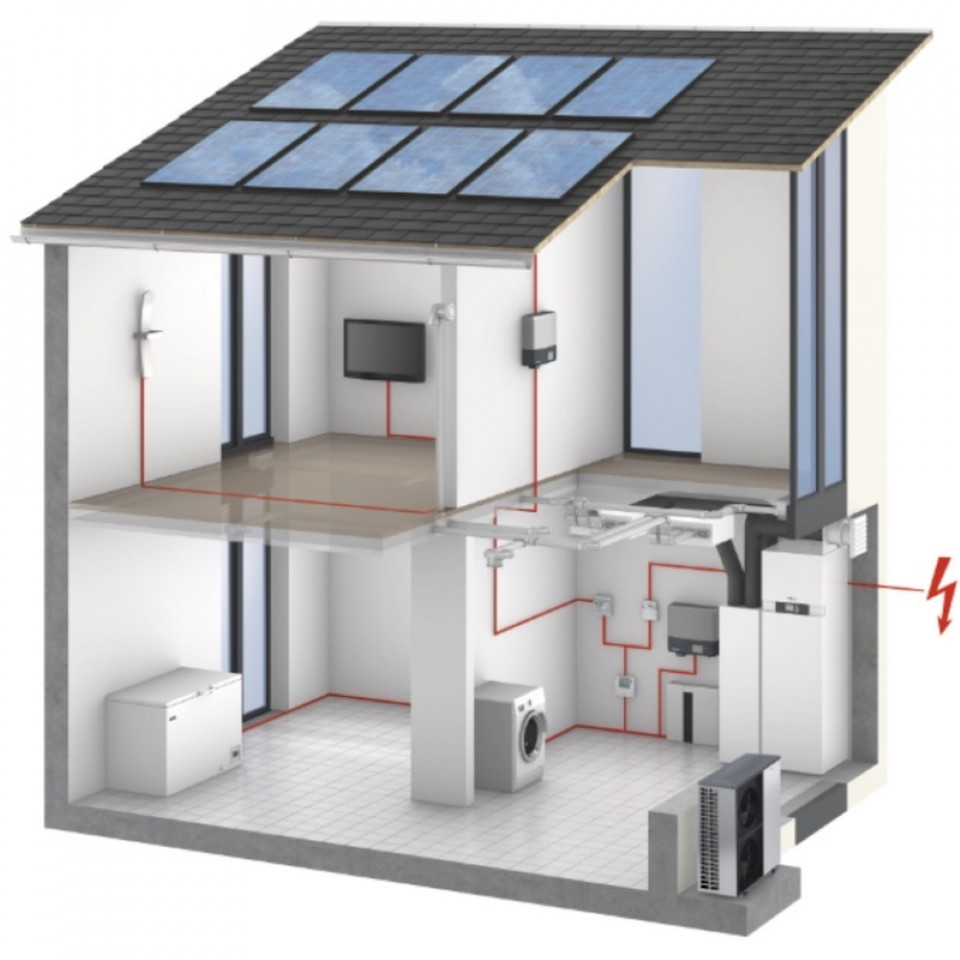

Photovoltaic system of 5 kWp single-phase with Vitovolt 300 panels for a covered area of 28 m2.

The package includes:

Photovoltaic panel Viessmann Vitovolt 300 M405WE monocrystalline chamfer x 14 pieces
Huawei SUN2000L-5KTL inverter
Solar cable set (+/-) 4mm² L= 2 5m MC4 - open.
Panel mounting system.
The panel mounting system is for pitched roofs. When ordering the package, specify the type of roof covering.

A separate offer is requested for a terrace type roof or ground mounting.

Safety accessories Single-phase 1 pc. electrical box IP40 2 pcs. electrical box IP65 1 pc. Separator for fuses 1 pc. Fuses 15A 1 pc. Surge protection PV V20, 1000 V DC 1 pc. Connection block.

Note: "If the cable length of 25 m is not sufficient, then order a 100 m cable and MC4 connectors separately."

Additional accessories (purchased separately):
Single-phase meter DDSU666/5 = 125 euros;
Safety accessories = 429 euros.

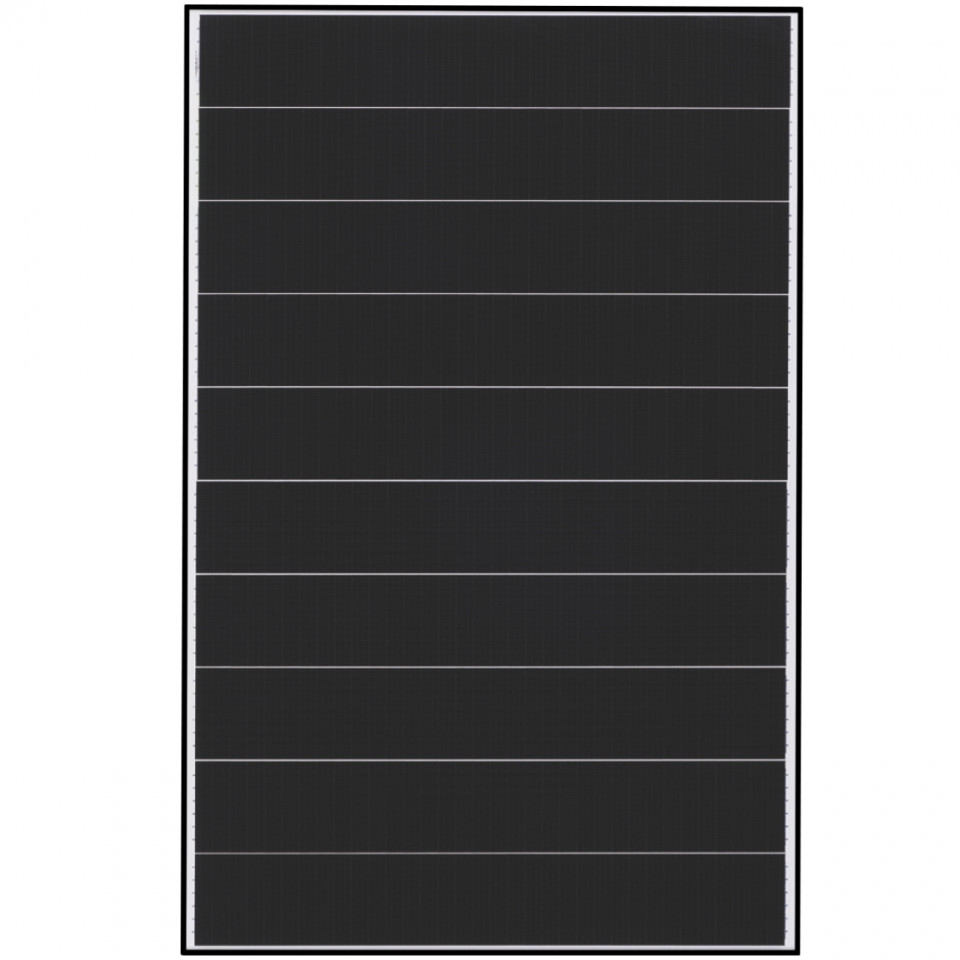

Monocrystalline photovoltaic modules VITOVOLT 300 Type M400WE chamfer 400 WP Rated power for the production of current from solar energy.

Module efficiency up to 20.7%
Shingled PERC cellular technology
High mechanical load for high loads in snow (5400 Pa) and wind/vortex (2400 Pa) through corrosion-resistant aluminum frames
Plus power up to 5 Wp through positive power tolerance
3.2mm anti-reflective glass for high amount of solar energy
High operational reliability: 2 Bypass diode bridges for operational reliability
Stability verified in salt spray and ammonia. It is appropriate on
