Description

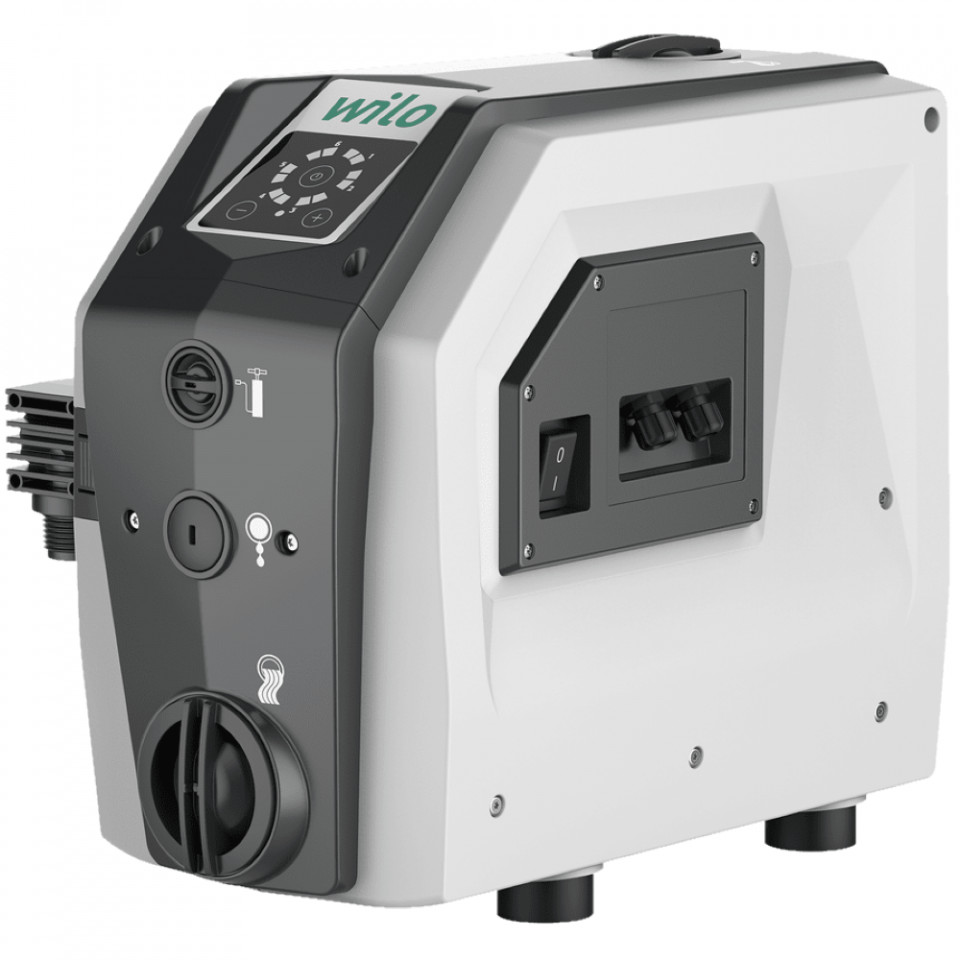

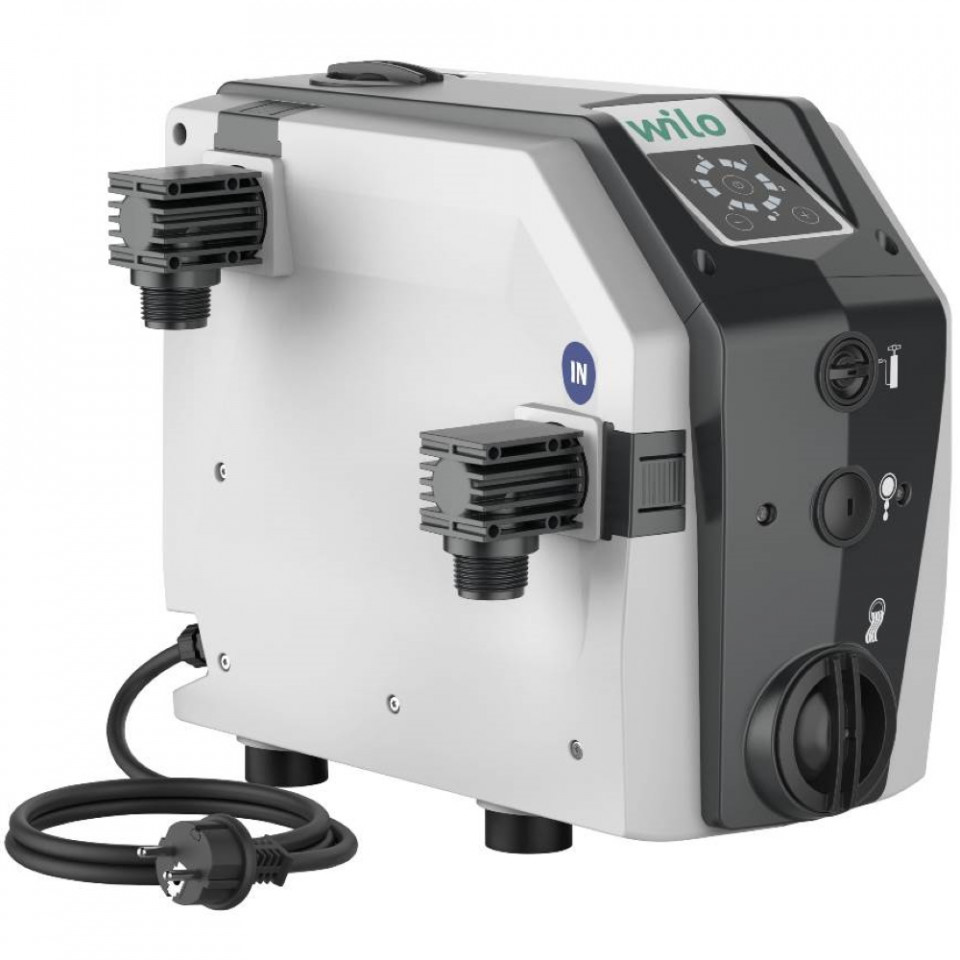

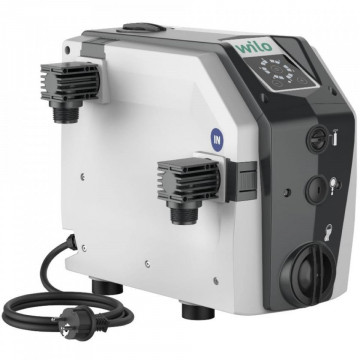

Pressure Boosting Pump Wilo Isar Boost5-E-5

Multistage, self-priming automatic pressure boosting pumps in horizontal design for domestic applications. Suitable for use in water supply, irrigation and rainwater utilization.

Easy to install plug & pump pressure-boosting system in a compact construction. User-friendly, thanks to the display for easy adjustment and monitoring. Quiet operation thanks to variable speed operation.

The pressure-boosting system is equipped with a frequency converter for variable speed control. Therefore, it can operate at a constant pressure and, correspondingly, power consumption is significantly reduced. The nominal pressure can be set at up to 5.5 bar.

The operational reliability is ensured by the following internal safety devices:

• Dry-running protection
• Overpressure
• Excess temperature for the motor and the electronics
• Overcurrent
• Over and undervoltage
• Special features / Product advantages

Easy installation, thanks to ready-to-plug design.
Perfect integration into the customer environment thanks to compact and modern design.

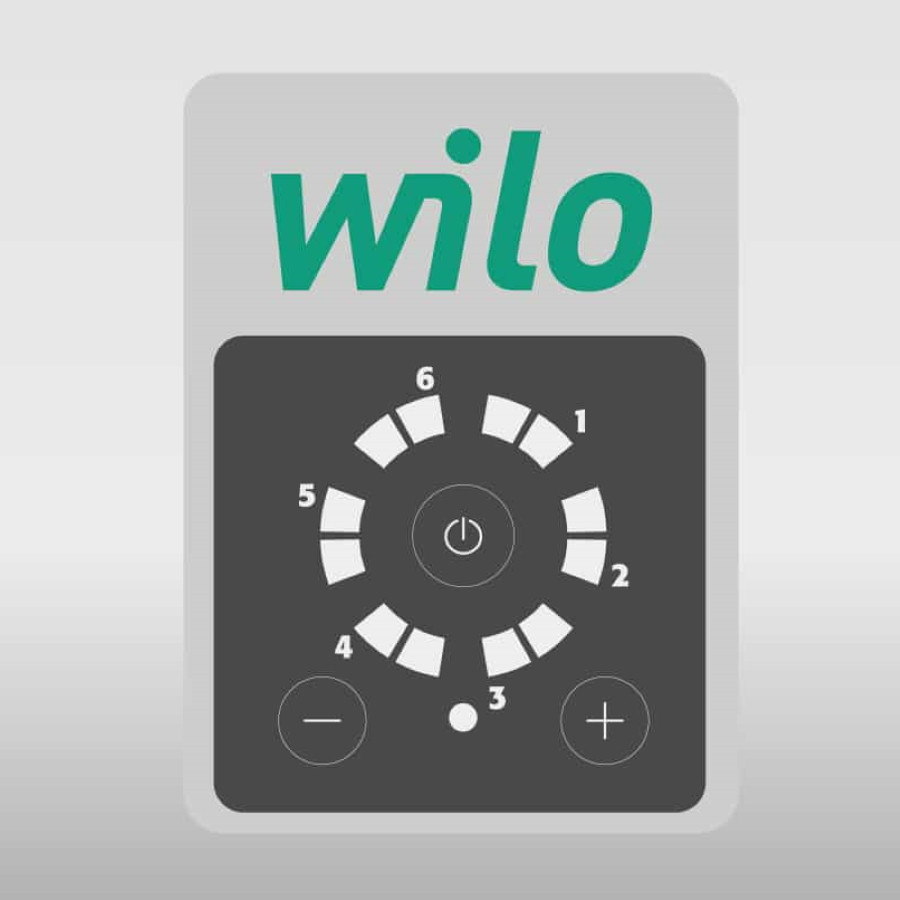

User-friendly operation due to LED display and push buttons.
Low-noise operation thanks to noise-blocking covers.
Built-in frequency converter for a comfortable constant pressure control and a soft start.
Low power consumption thanks to needs-based supply.
Safe operation thanks to extensive integrated protection functions.

Scope of delivery
Pump
Installation and operating instructions

Operating Data

Fluid media: Water 100 %
Fluid temperature: 20.00 °C
Fluid concentration: 100.00 %
Requested flow:
Requested head:

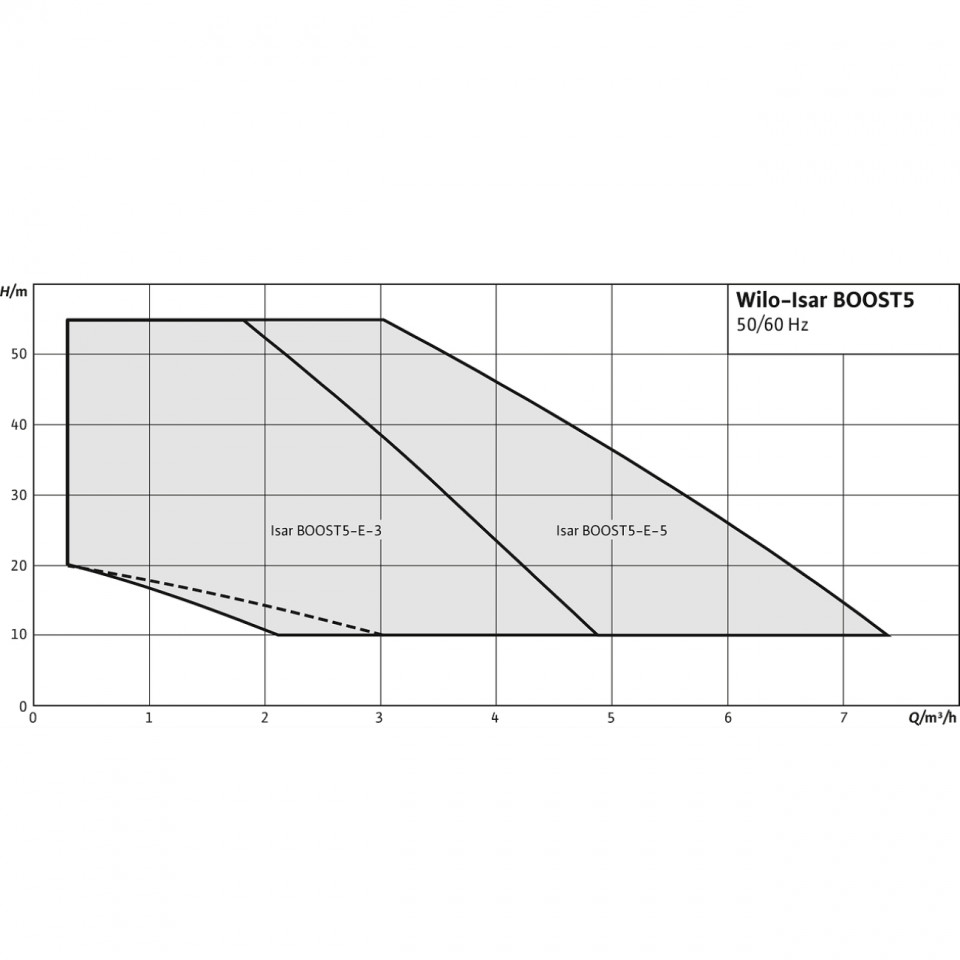

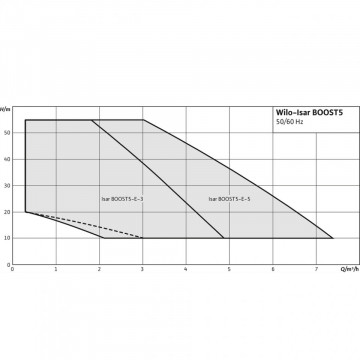

Max. delivery head: 57.97 m

Product data

Maximum operating pressure: 10 bar
Min. fluid temperature: 0 °C
Max. fluid temperature: 40 °C
Max. ambient temperature: 40 °C

Motor data

Mains connection: 1~230V/50 Hz
Voltage tolerance: +-10 %
Rated power: 1.1 kW
Rated current: 10 A
Rated speed: 3600 1/min
Insulation class: F
Protection class: IPX4

Materials

Pump housing: PA66-GF50
Impeller: PPE/PS-GF20
Shaft: 1.4057
Shaft seal: BXPFF

Installation dimensions

Pipe connection on the suction side: G 1, -
Pipe connection on the discharge side: G 1, -

Ordering information

Brand: Wilo
Product description: Isar BOOST5-E-5-G
Net weight, approx.: 15 kg
Article number: 4250017
