Pressure Manager Grundfos PM Plus

Grundfos
RON 826.15 (VAT Included)
Delivery costs are not included
Grundfos
Financing through Online Credit smart by BT Direct
Calculate the rate
SKU 93264954
Limited stock

Description

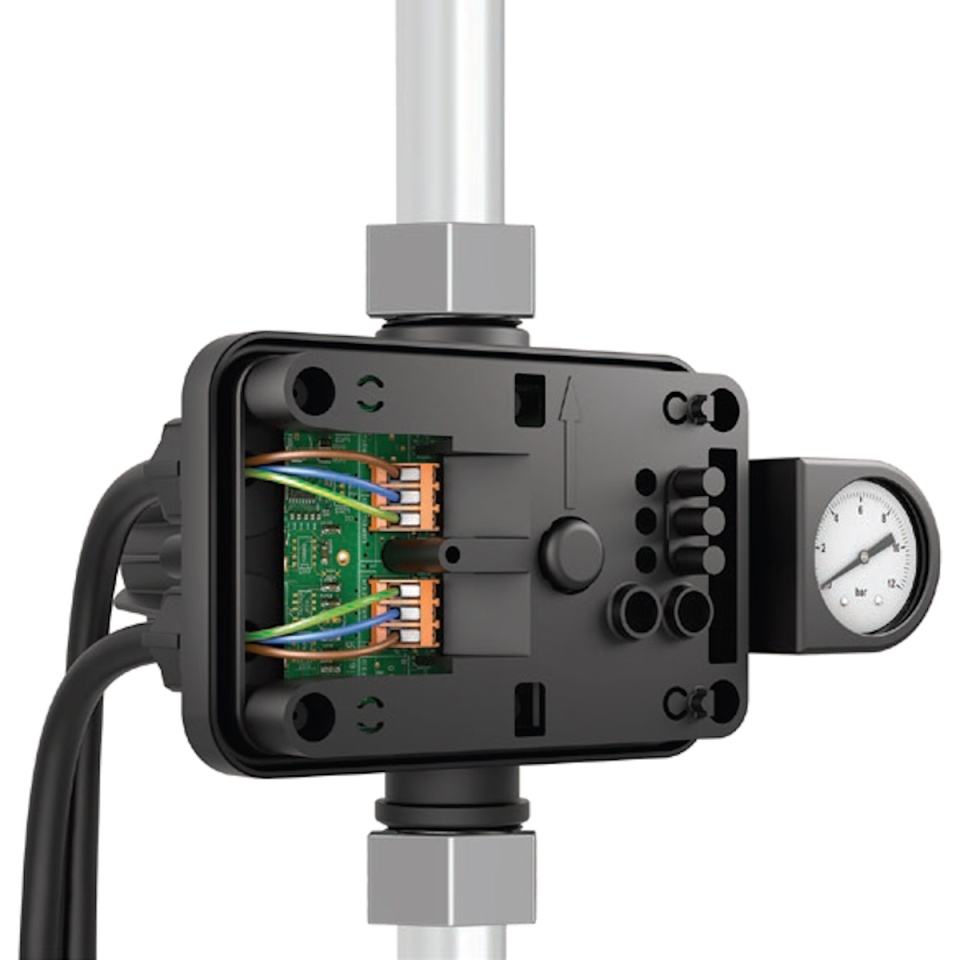

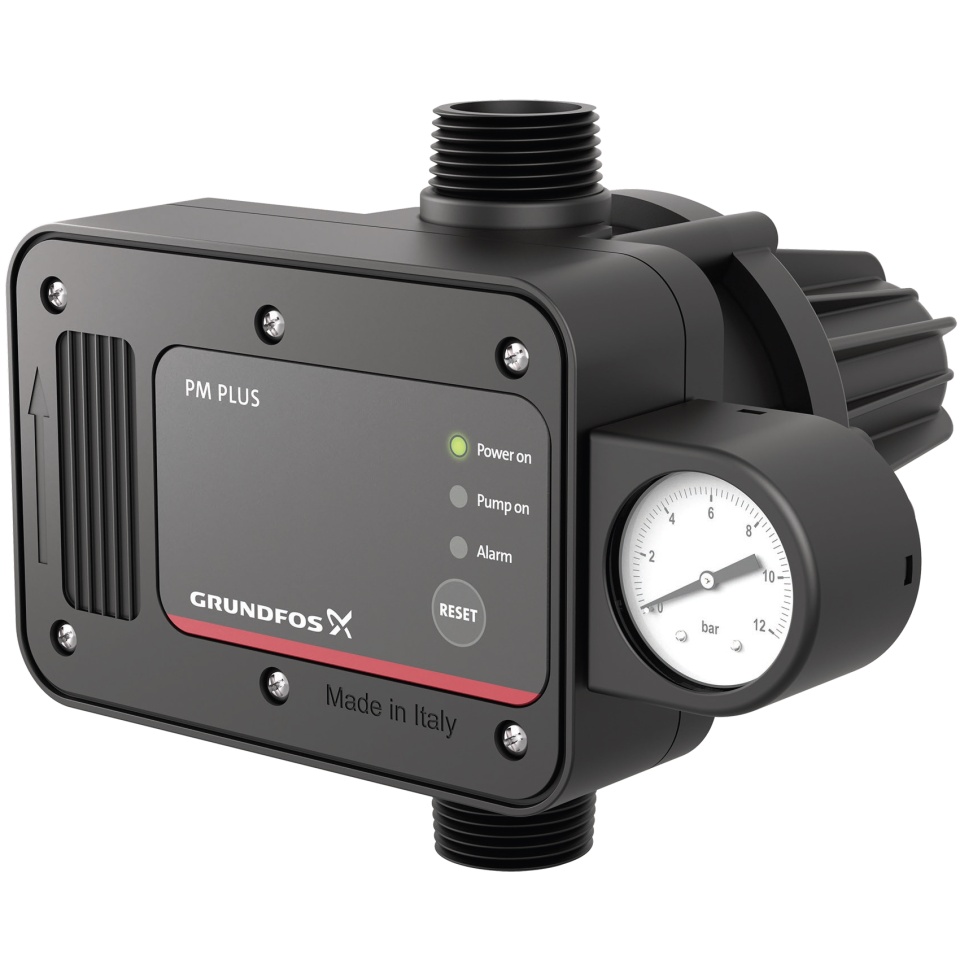

Pressure Manager Grundfos PM Plus

PM PLUS is a pressure manager designed for automatic start/stop control of Grundfos or other pumps for water supply in domestic applications.

PM PLUS is a pressure manager designed for automatic start/stop control of Grundfos or other pumps for water supply in domestic applications.

With adjustable start pressure, PM PLUS can easily be customised to your specific application. It can be installed in systems with or without a pressure tank.
PM PLUS features automatic protection that stops the pump in case of water shortage, preventing dry running. In case of temporary power outage, PM PLUS automatically resets itself once power is restored.

Technical Specifications

Adjustable Start Pressure from 1.5 to 3.0 bar
Supply Voltage 1 x 110-240 V (compatible 230 V)
Frequency 50 / 60 Hz
Max. Power Supported (P1) 1.5 kW (1500 W) at 230V
Max. Current 10 A
Max. Working Pressure 12 bar
Connection 1" (G1) external
Protection Degree IP65
Liquid Temperature 0 - 60 °C
Other Functions Integrated check valve (non-return valve), pressure gauge, Anti-blocking function.

Details

SKU
93264954
Categories
Weight
1.7 kg
Brand
Physical Characteristics
Material
Plastic
Colour
Black
