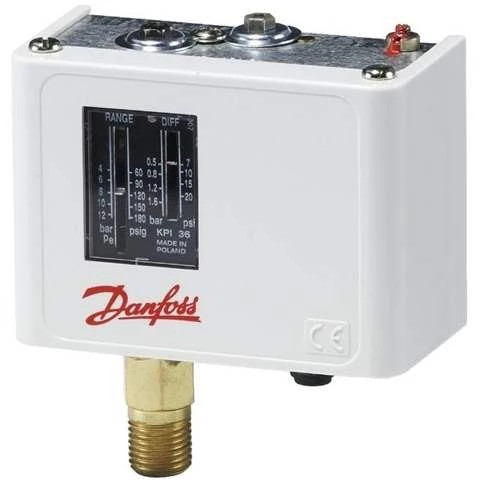

Pressure switch KPI36 060-118966

Description

Pressure switch Danfoss KPI36 060-118966

Regulation range [bar] Pe: 4.00 - 12.00, Differential [bar]: 0.50 - 1.60, Reset function: Auto, Pressure connection type: G, Pressure connection size: 1/4, Enclosure rating IP: IP30, Max. Working Pressure [bar]: 18.0

Technical Data

Gross weight 0.35 kg
Net weight 0.31 kg
Amb. Temp. Note 80 °C/176 °F for max 120 min
Ambient temperature range [°C] [Max] 65 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 149 °F
Ambient temperature range [°F] [Min] -40 °F
Contact function SPDT
Contact rating AC15=4 A, 440 V
AC1=10 A, 440 V
AC3=6 A, 440 V
DC13=12 W, 220 V
Differential [bar] [Max] 1.6 bar
Differential [bar] [Min] 0.5 bar
Differential [psi] [Max] 23 psi
Differential [psi] [Min] 7 psi
Electrical connection Rubber cable gland
Electrical connection size 6-14 mm
EN 60947 electrical properties Pollution degree: 3
Rated impulse voltage: 4 kV
EN 60947 wiring properties Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP IP30
Enclosure rating Nema (~) 1
Identical product 060-119666
Max. test pressure [bar] Pe 18 bar
Max. test pressure [psig] 261 psig
Max. Working Pressure [bar] 18 bar
Max. Working Pressure [psig] 261 psig
Packing format Multi pack
Pressure connection size 1/4
Pressure connection standard ISO 228-1
Pressure connection type G
Pressure Male/Female Male
Pressure range category Medium pressure
Pressure sensing element Bellows
Product accessories Switches accessories
Product description Pressure Switch
Product family name KPI
Product group Switches and thermostats
Product name Pressure switch
Quantity per packing format 36 pc
Regulation range [bar] Pe [Max] 12 bar
Regulation range [bar] Pe [Min] 4 bar
Regulation range [psig] Pe [Max] 174 psig
Regulation range [psig] Pe [Min] 58 psig
Reset function Auto
Serviceable No
