Programmable Thermostat C7 wired

Description

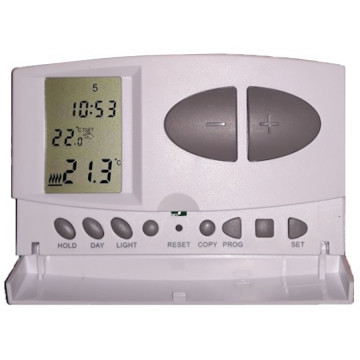

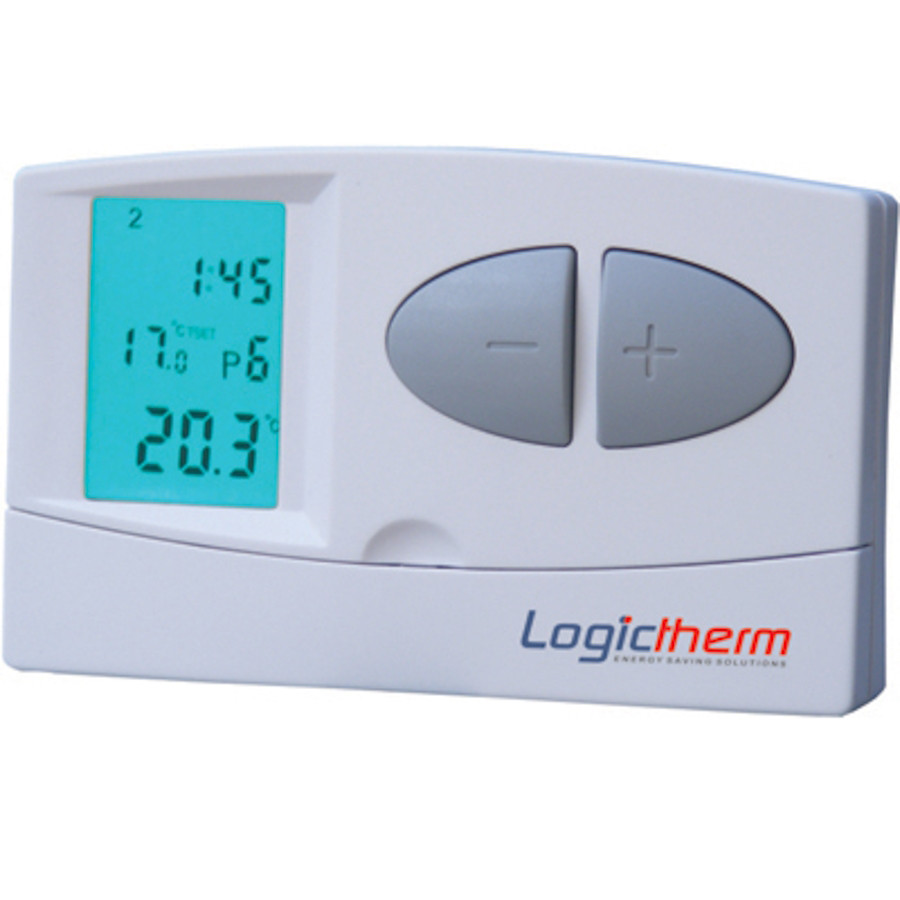

Programmable Thermostat Logictherm C7 wired

Logictherm C7 programmable digital camera thermostat for controlling a heater or air conditioner

C7 is suitable for controlling a heater or air conditioner, being compatible with most thermal power plants in Romania and the EU, regardless of the control voltage (24 V or 230 V).
The program of a day consists of 6 periods of time, with 6 different temperatures. The program repeats cyclically automatically.
The schedule for each day can be chosen independently of the schedule for the other days.
The Copy feature makes it easy to enter repetitive programs. There are 4 manual modes that allow you to temporarily change the default program.
Switching sensitivity is the difference between the set temperature and the temperature at which the thermostat switches on / off the boiler. The sensitivity of the thermostat is ± 0.2 ° C.
The display accuracy is ± 0.5 ° C.
Pump anti-lock function. In order to prevent the pump from stalling at 0 and 00 minutes, the thermostat commands the boiler to start for one minute. The command is given only if the thermostat has not given a start command for 24 hours.
Relay output, switching voltage: 24… 250 V AC;

Thermosensitive element: NTC 10 kOhm

Working voltage: 230 V AC + 10% / - 15%; Power: <10 VA; Frequency = 50 ... 60 Hz

Switching current at 250 V: max. 6 A res., 2 A inductive
