Programmable wireless Thermostat Fer 209

Description

Programmable wireless Thermostat Ferroli Fer 209

Fer 209 is a wireless programmable digital thermostat that allows the control of the ambient temperature in the living space with a precision of 0.5°C.

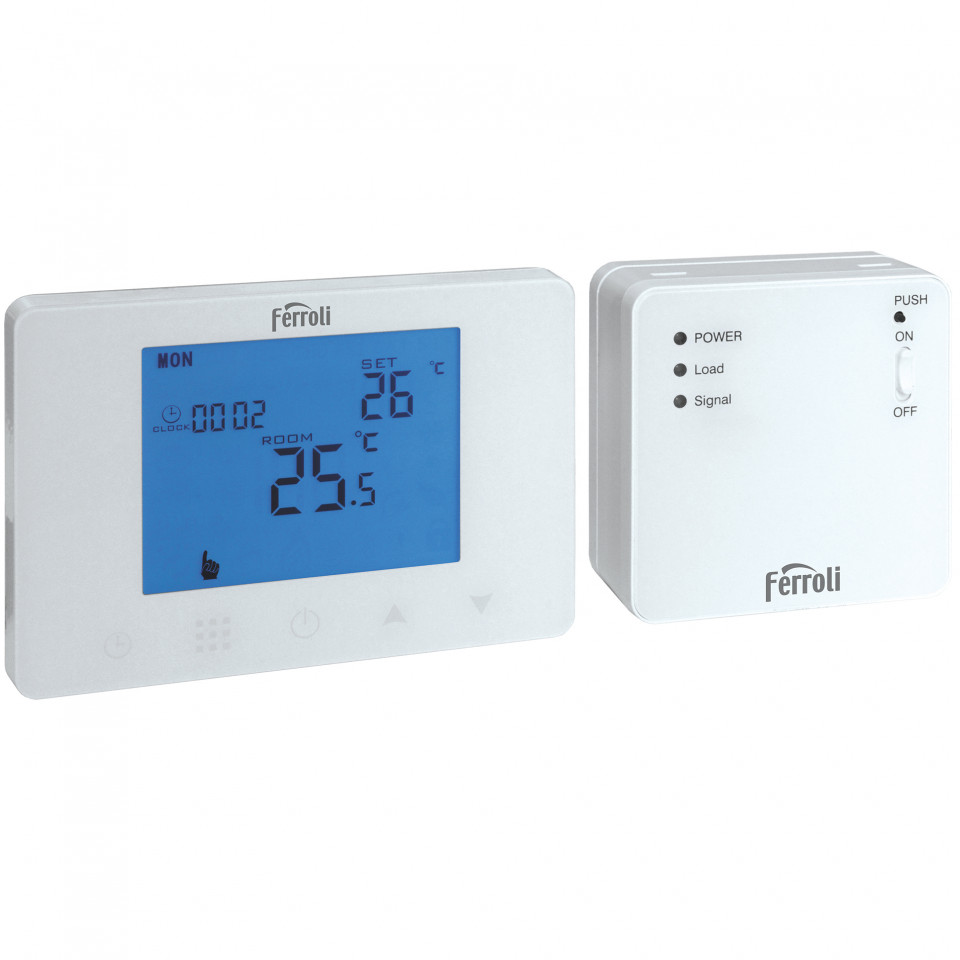

It consists of a thermostat with LCD touchscreen, powered by batteries or via USB cable and an RF receiver that is mounted near the heating source through an ON/OFF wire connection.

Compatible with both gas or electric boilers, as well as wood or pellet boilers, Fer 209 has been designed to be used in the management of heating systems with radiators, underfloor heating, mixed, etc.

The FER 209 programmable radio frequency room thermostat can be placed in any room and has the following characteristics:

Illuminated digital display with touchscreen

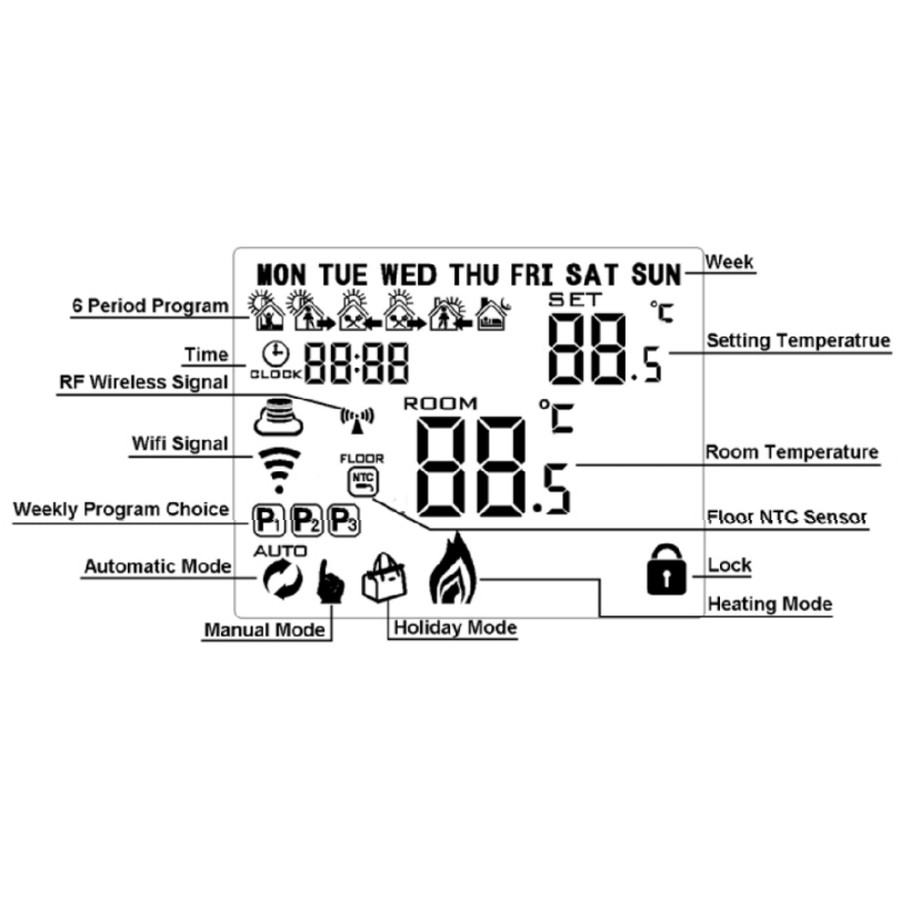

The display shows the set temperature, the room temperature and the exact time
It allows setting the temperature for 6 time periods, using one of the 3 preset programs:
P1: 5+2 days, 6 periods per day

P2: 6+1 days, 6 periods per day

P3: 7 days, 6 periods per day

Holiday Mode: The days and temperature during the holiday period can be set to run in countdown mode
Memory function: when the power supply is interrupted, the thermostat returns to the previously set settings
Child lock function: The device can be locked to avoid changing the settings.
Technical data
Technical data wireless programmable room thermostat Ferroli FER 209
Receiver power supply: 230 Vc.a. 50/60 Hz
Thermostat power supply: 4x AAA 1.5 V alkaline batteries
Temperature limit range: 0..70°C
Display accuracy: 0.5°C
Temperature sensor: NTC (10k) 1%
Temperature setting range: 5 - 35°C
Relay coupling current: max 3 A / 230 V
Isolation condition: Normal environment
Output: Switching relay
Installation: Wall or stand mounting
Dimensions: 130 x 90 x 25 mm
