Purmo TempCo Connect 6M 230V Control Panel with Pump Closing Relay

Description

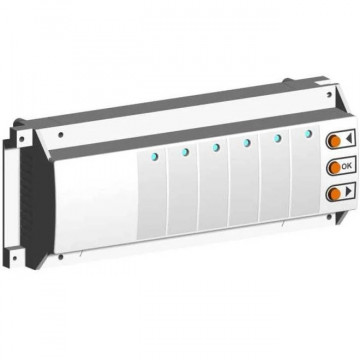

Purmo TempCo Connect 6M 230V Control Panel with Pump Closing Relay (Wired)

for independent room temperature regulation, it can work with a maximum of 6 room thermostats and 12 thermoelectric heads.

230 V supply voltage; 50 Hz
2.5 A / 250 V fuse short-circuit protection
the operating temperature range of the device is 0 - 50 ° C
the dimensions of the strip are 225 x 88 x 31 mm.
inputs

230 V power supply.
6 thermostat circuits
Outputs:

12 circuits for thermostatic heads (max 2.5 A for all loads).
2 circuits for stopping the pump and other relay output devices, 2 NO contacts, 8 A / 250 V.
The connection is very simple and easy to make, because each device (regulators, thermoelectric heads) has a connection place (terminal) designated and marked accordingly.

The connection block is made on the basis of a printed circuit board with a proper arrangement of tracks and glued terminals for connecting cables. The system of internal connections (tracks) ensures the supply of the corresponding terminals and the transmission of the control voltages between the circuits that work together.

On the block there are terminals for connecting 6 independent control circuits (temperature zones) for the heated rooms, each of which can have two heating circuits. If necessary, in case of a larger number of circuits, it can reach max. 15 pcs. the number of thermoelectric heads controlled by a single temperature regulator, by connecting in parallel.

The connection block is also provided with 2 circuits (channels A and B) that allow the independent control of the "temperature drop" in two zones, for the rooms controlled by the controllers connected to circuit A or B. The time settings in zones A and B. are independent - result only from the programming of the thermostat that controls the operation of the thermostats
