Radiator 33/600/2000 DKEK

Description

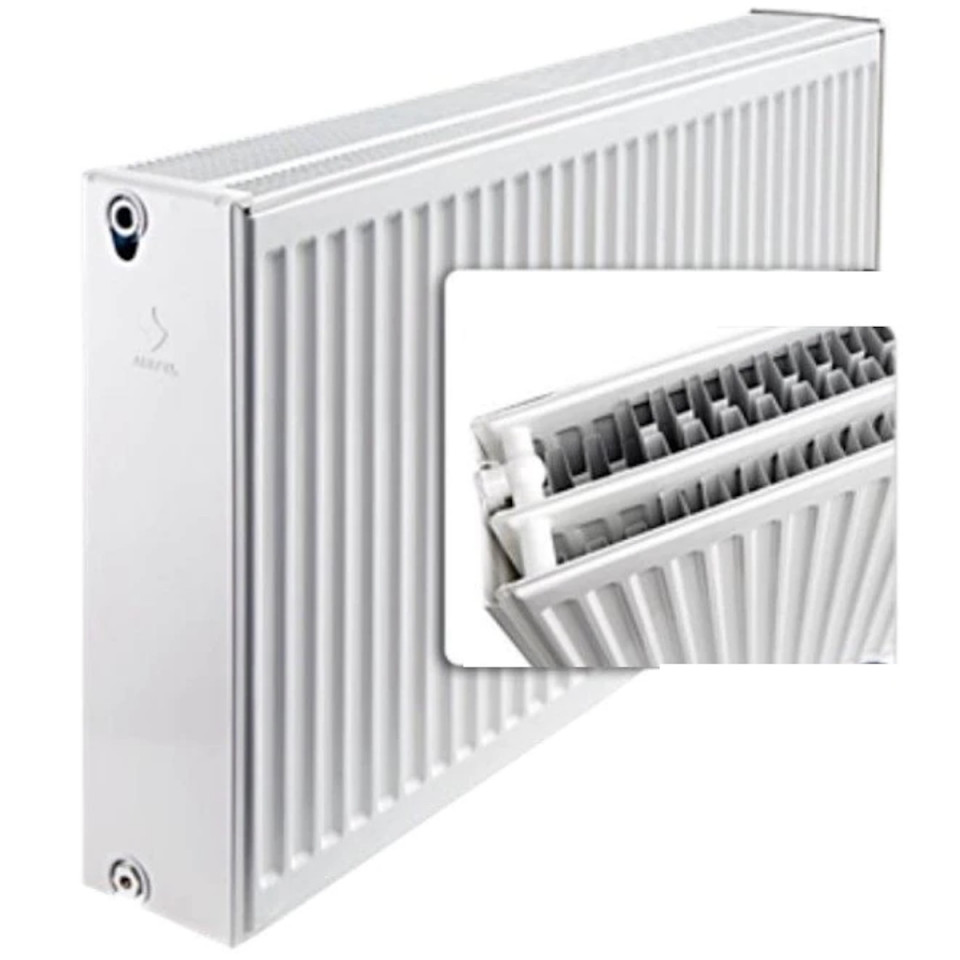

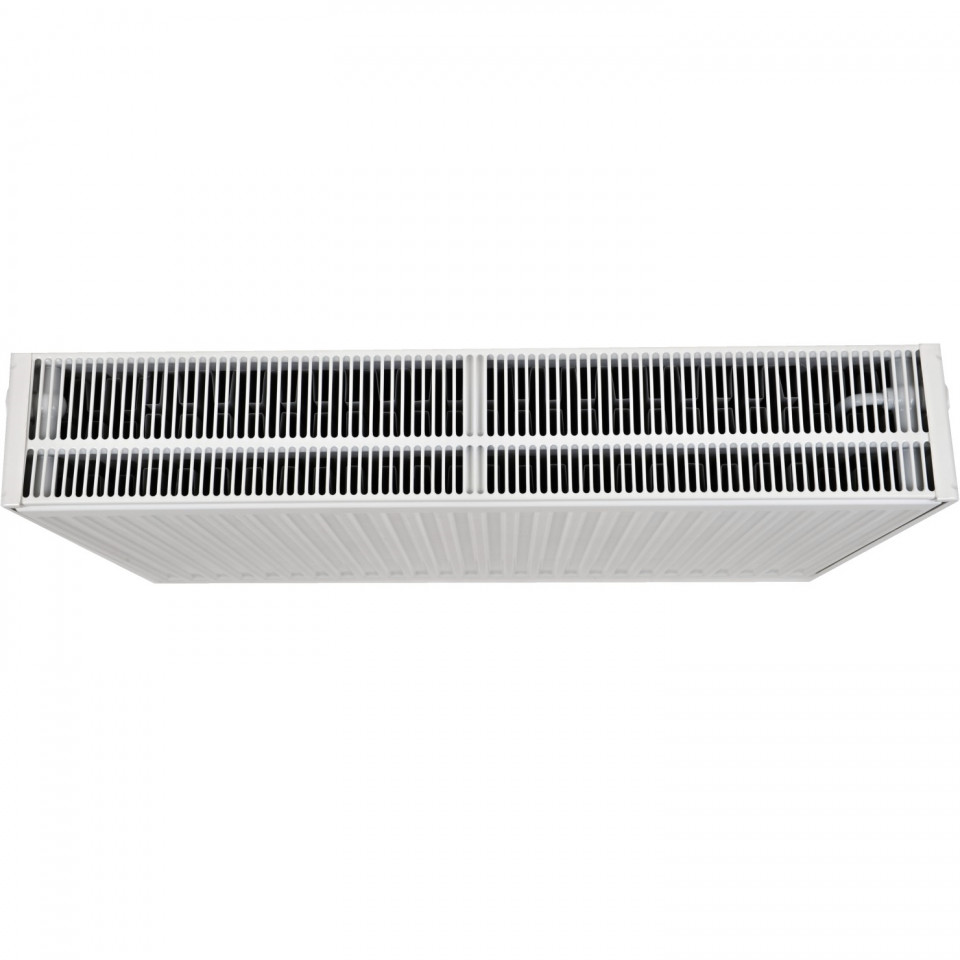

Steel Radiator Airfel 33/600/2000 DKEK

Airfel radiators are produced on a fully automated production line, complying with TS EN 442 standards

The painting technology in the electrostatic field confers a high resistance to corrosion and impact
The very smooth surface due to the spraying of the paint based on epoxy resin applied over the first layer of phosphate paint
Increased calorific power due to the dimensions of the convectors and the optimal distance at which they are located
Safety and durability given by testing radiators in the factory at pressures of 13 bars, with maximum working pressures of 10 bars.
Included accessories: fixing brackets, plug, ventilation valve.

Warranty: 12 years, for installation in own installation, 1 year, in RADET type circuit.

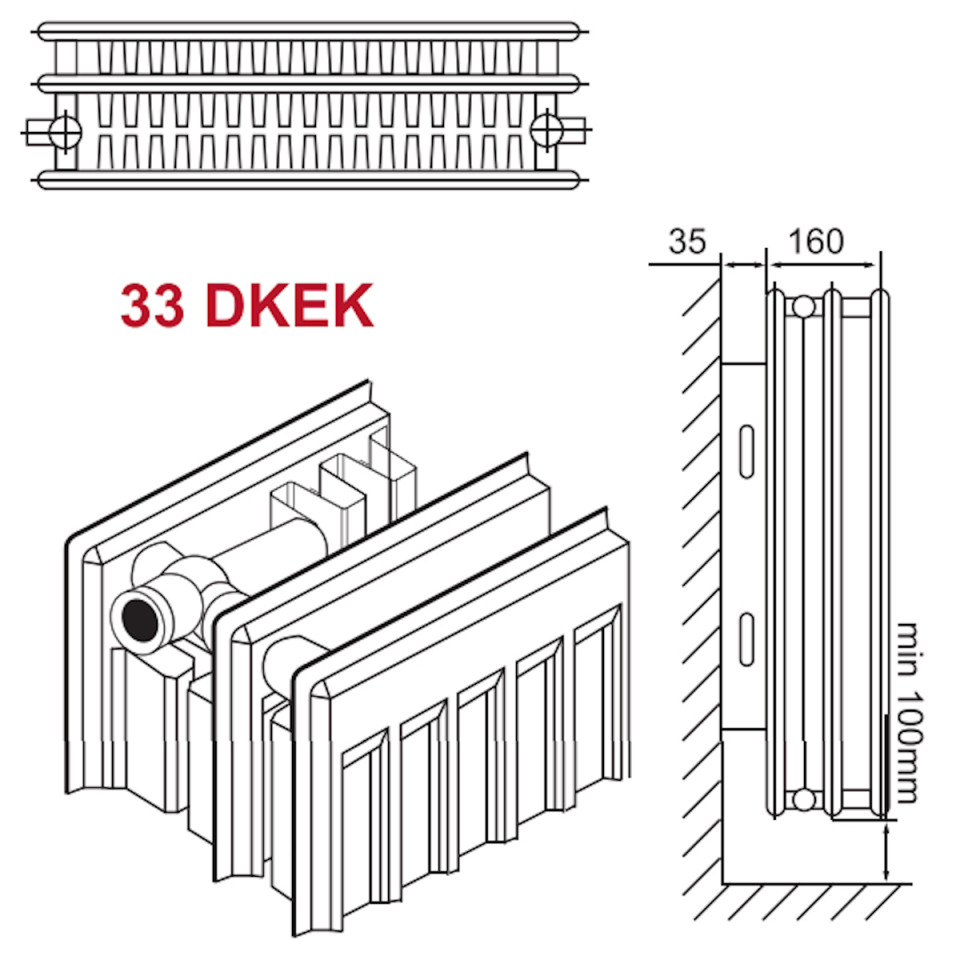

Technical data Steel panel radiator model 33 DKEK:
Thermal power (at internal temperature = 20oC): Q=5988 W (at 90/70oC round-trip), Thermal power: Q=2,261 W (at 75/65oC round-trip)
Dimensions: WxLxH =2000 x160 x 600 mm
max pressure of operation = 10 bar; test pressure =13 bar
Water content = 19.00 liters
