Radio set with 7-day room temperature controller REV24RF SET

Name: Radio set with 7-day room temperature controller REV24RF SET
Brand: Siemens
SKU: REV24RF-Set

RON 1,297^.74 (VAT Included) RON 1,864^.25

Delivery costs are not included

Buy now, pay later from RON 29.48 / Month Details

Financing through Online Credit smart by BT Direct

Calculate the rate

How can we help you?

Call us: +40751049108 (Mo-Fr 9-18)

Ask for details

Send us a message

Description

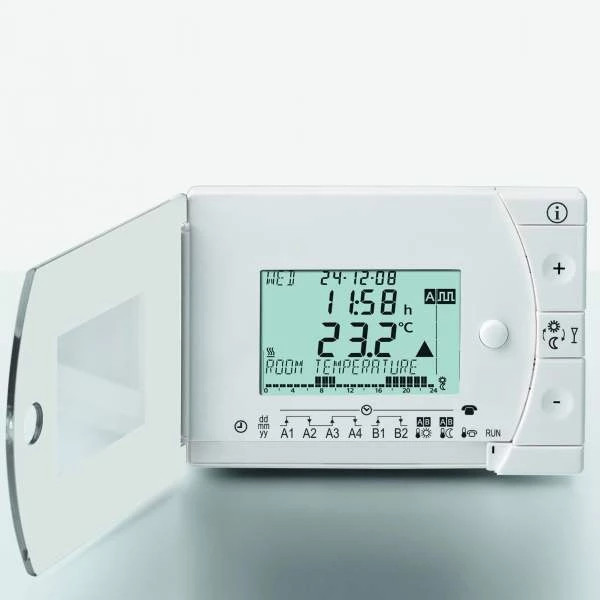

Radio set with 7-day room temperature controller REV24RF SET

The REV24RF chronothermostat has the integrated transmitter, otherwise it has the same features as the REV24: self-training digital room chronothermostat (patented PID mode), with switching for 7 days (3 periods daily), usable in heating or cooling systems
Available operating modes:
- 7-day automatic mode with max. 3 periods of heating or cooling
- Continuous comfort mode
- Continuous energy saving mode
- Protection against frost or overheating
- Exceptional day (24 hour operation) with max. 3 periods of heating or cooling
Works with bidirectional radio transmission
Advantageous in renovated or rebuilt buildings (wireless automation)
REV24 Set can regulate the temperature in: single-family houses, holiday homes, apartments, offices, commercial spaces
REV24RF can order the following equipment:
Solenoid valve for instant heaters or atmospheric burners
Burners with gas or liquid fuel blowers
Circulation pumps from heating installations
Direct electric heating equipment
Zonal control valves
Air conditioning and cooling equipment
Thermostat color: white RAL9003 (NCS S 0502-G); mounting plate color: gray RAL7038
Features chronothermostat REV24RF
Power supply voltage = 3 V DC; Batteries (AA alkaline): 2x1.5 V; battery life: approx. 2 years
Protection class: II cf. EN 60 730-1
Sensitive element: NTC 10 kΩ ± 1% at 25 ° C; measuring range: 0-50 ° C; time constant: max. 10 min
Status and display resolution: setting points = 0.2 ° C; current value measurement = 0.1 ° C; display current value = 0.2 ° C; display time = 1 min.
Temperature setting range = 3-35 ° C
EC conformity: electromagnetic compatibility 2004/108 / EEC; low voltage current directive 2006/95 / EC; directive R & TTE EN 301 489-3; EC approval 0359
Product safety: radio equipment EN 301 489-3
Degree of protection IP20; climatic conditions (in operation): 3K3 cf IEC 60 721-3; temperature 5-40 ° C; humidity <85% r.h.
Weight REV24RF / REV24 Set = 0.29 / 0.45 kg
Dimensions 94x134.5x30 mm

RCR10 / 868 receiver features:
Electrical voltage = AC 230 V + 10 / -15%
Power <10 VA; frequency: 45–65 Hz
Protection class: II cf. EN 60 730-1
Weight = 0.16 kg; dimensions = 88x114x31.5 mm
Wireless chronothermostat REV 24 Set Installation, Service.
