Refix HW 25 diaphragm expansion vessel
RON 945.68
(VAT Included)
RON 781.56
(VAT excluded)
Delivery costs are not included
Sold by:
Abama Systems
How can we help you?
Description

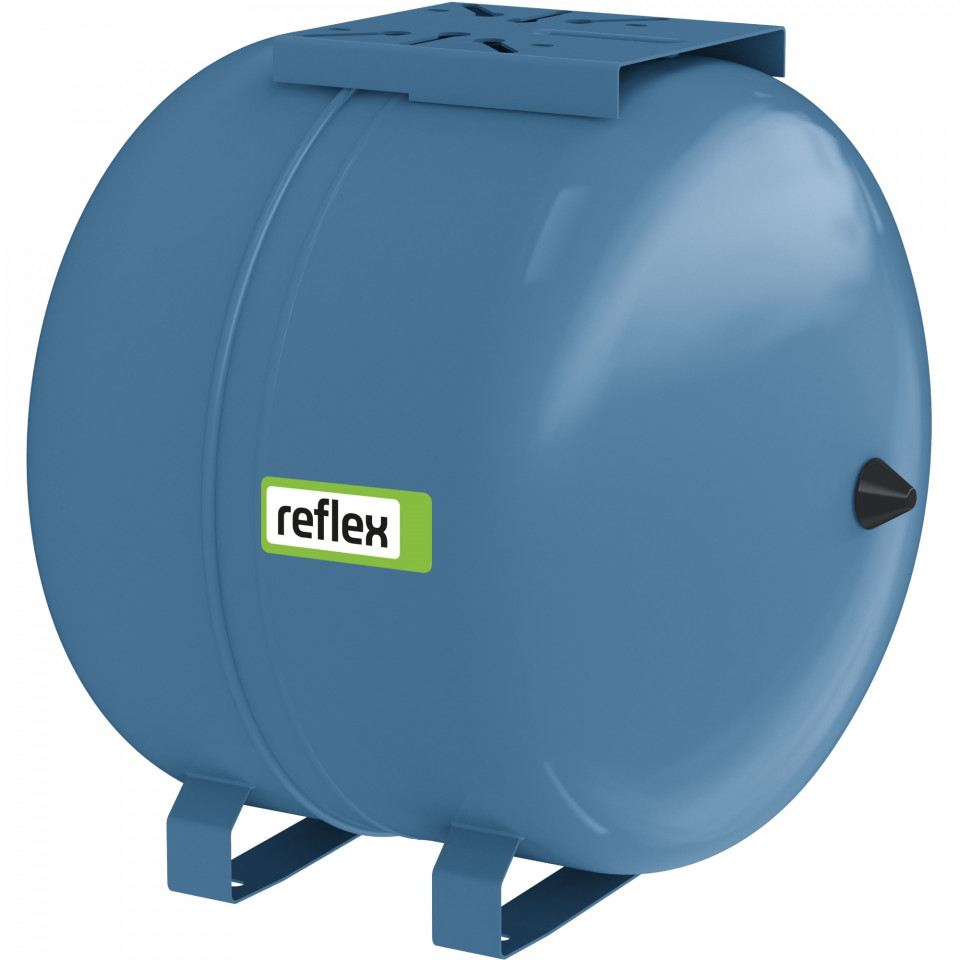

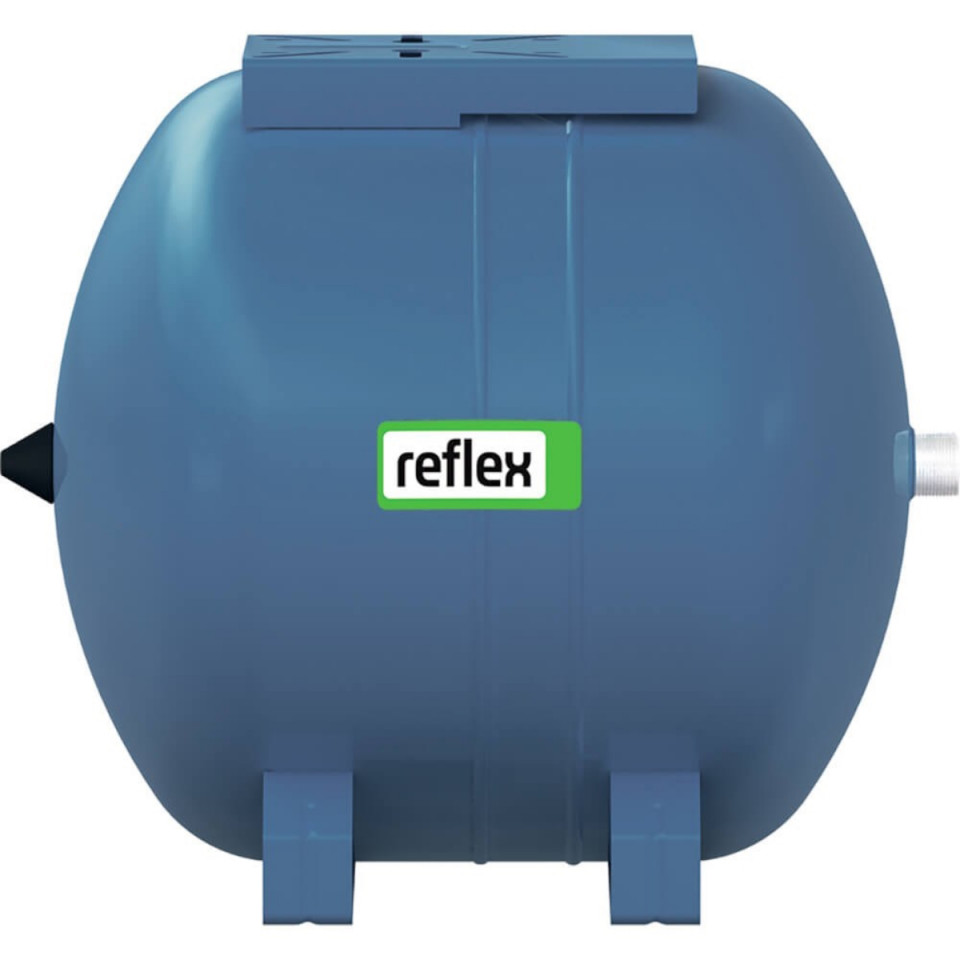

Reflex Refix HW 25, diaphragm expansion vessel for domestic water systems, blue, 10/1.5 bar
Expansion vessel for domestic water systems that are not used in DIN 1988 compliant drinking water systems. With flange plate for simple pump assembly.
Vessels fitted according to DIN EN 13831. Approval according to Pressure Equipment Directive 2014/68/EC.
- Tank's surface and parts in contact with water are protected against corrosion
- Durable epoxy resin coating
- Bladder according to DIN EN 13831 / replaceable from 50 litres
Type: HW 25
Colour: blue
Nominal volume: 25 l
Max. useful volume: 18,2 l
Max. perm. operating temperature: 70 °C
Max. perm. operating pressure: 10 bar
Factory provided gas supply pressure: 1,5 bar
Connection: G 3/4"
Diameter: 280 mm
Height: 301 mm
Width: 518 mm
Wide bases: 227 mm
Depth: 270 mm
Bracket depth: 214 mm
Tilt dimension approx.: 411 mm
Weight: 5,05 kg
Details
SKU
7200310
Categories
Weight
5.1 kg
Brand
Physical Characteristics
Volume
16-30 liters
Material
Steel
Colour
Blue
