Reflex Exdirt D 3/4 VM dirt separator with thread
RON 663.86
(VAT Included)
RON 548.64
(VAT excluded)
Free delivery
Sold by:
Abama Systems
How can we help you?
Description

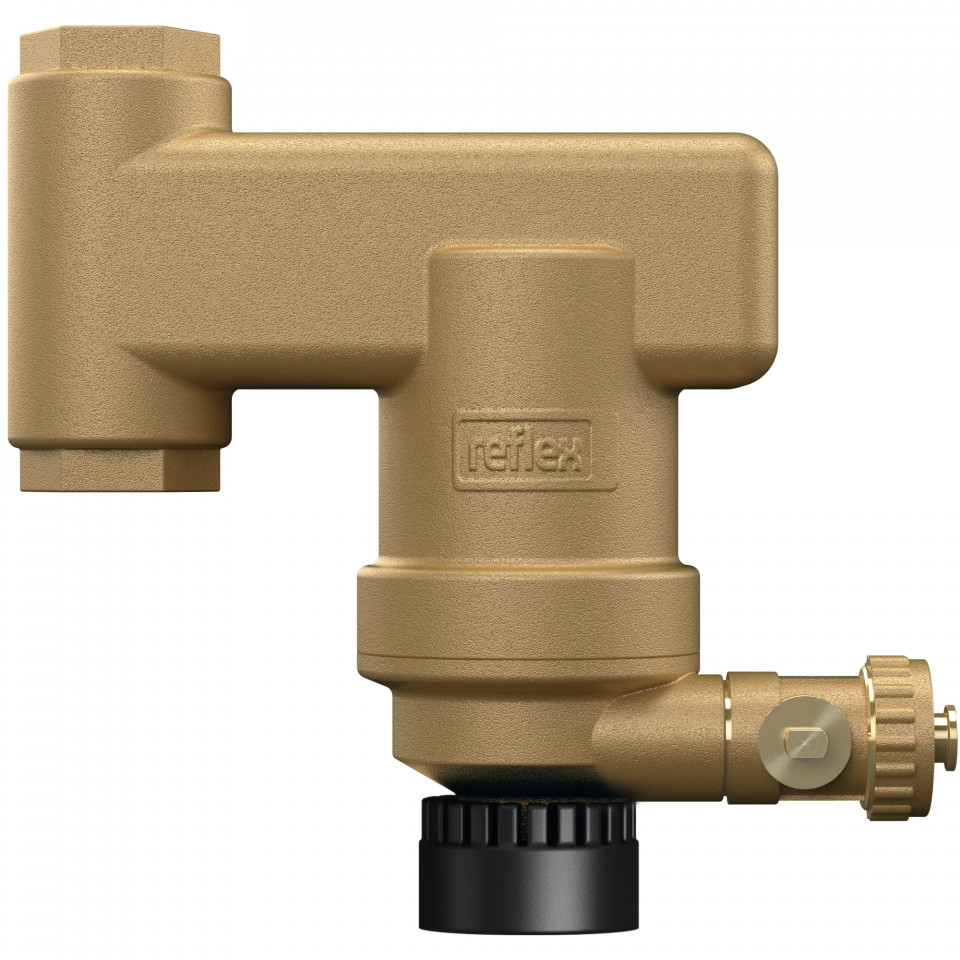

Reflex Exdirt D 3/4 VM, dirt separator with thread, 110 °C, 10 bar
Reflex Exdirt Magnet

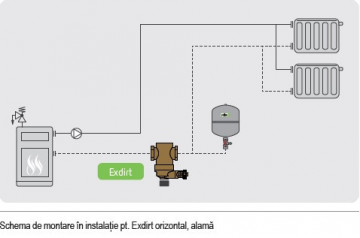

Dirt and sludge separator for heating and cooling water systems or closed liquid-filled plant systems.
Suitable for the media water and water/glycol mixtures up to a mixing ratio of 50/50%.
Integrated high energy permanent magnet easy clip with plug function for a quick connection without additional assembly effort on the sludge and dirt separator. High performance magnet comprising an isostatic pressed neodymium washer, that is inserted in a TPE plug-in washer. Highly efficient separation and fixing of ferromagnetic particles from the flow directly in the separator chamber thanks to axially-aligned magnetic field. Particles are specifically and permanently removed from the system by simple pulling out of the plug-in magnets from the separator housing, and subsequent cleaning without any interruption to operation. For maintenance tasks, the plug-in magnet can be removed from the separator housing by simply pulling it out.
The cleaning and emptying of the dirt collection chamber is possible via a dedicated desludging ball valve without any necessity to interrupt operation.

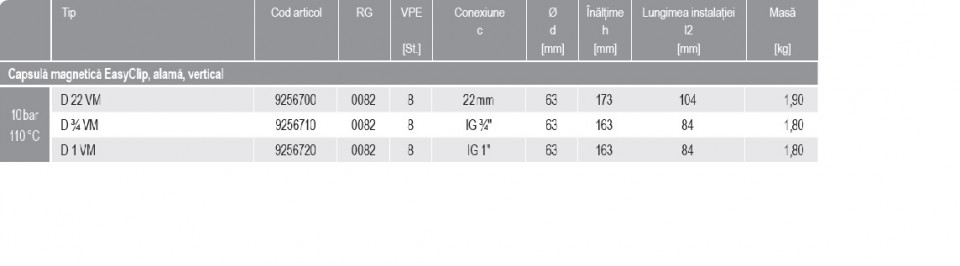

Type: D 3/4 VM
Housing material: brass
Installation variant: vertical
Connection: IG 3/4"
Cleaning connection: G 3/4"
Connection variant: thread
Max. volume flow: 1,2 m³/h
Diameter: 63 mm
Height: 163 mm
Width: 175 mm
Installation length: 84 mm
Weight: 1,80 kg
Dirt and sludge separator for heating and cooling water systems or closed liquid-filled plant systems.
Suitable for the media water and water/glycol mixtures up to a mixing ratio of 50/50%.
Integrated high energy permanent magnet easy clip with plug function for a quick connection without additional assembly effort on the sludge and dirt separator. High performance magnet comprising an isostatic pressed neodymium washer, that is inserted in a TPE plug-in washer. Highly efficient separation and fixing of ferromagnetic particles from the flow directly in the separator chamber thanks to axially-aligned magnetic field. Particles are specifically and permanently removed from the system by simple pulling out of the plug-in magnets from the separator housing, and subsequent cleaning without any interruption to operation. For maintenance tasks, the plug-in magnet can be removed from the separator housing by simply pulling it out.
The cleaning and emptying of the dirt collection chamber is possible via a dedicated desludging ball valve without any necessity to interrupt operation.
Type: D 3/4 VM
Housing material: brass
Installation variant: vertical
Connection: IG 3/4"
Cleaning connection: G 3/4"
Connection variant: thread
Max. volume flow: 1,2 m³/h
Diameter: 63 mm
Height: 163 mm
Width: 175 mm
Installation length: 84 mm
Weight: 1,80 kg
Details
SKU
9256710
Categories
Weight
1.8 kg
Brand
Physical Characteristics
Connection
3/4
Material
Brass
Colour
Golden
Filter Type
Magnetic, for Heating
