Reflex N 35 expansion vessel
RON 344.45
(VAT Included)
RON 284.67
(VAT excluded)
Delivery costs are not included
Sold by:
Abama Systems
How can we help you?
Description

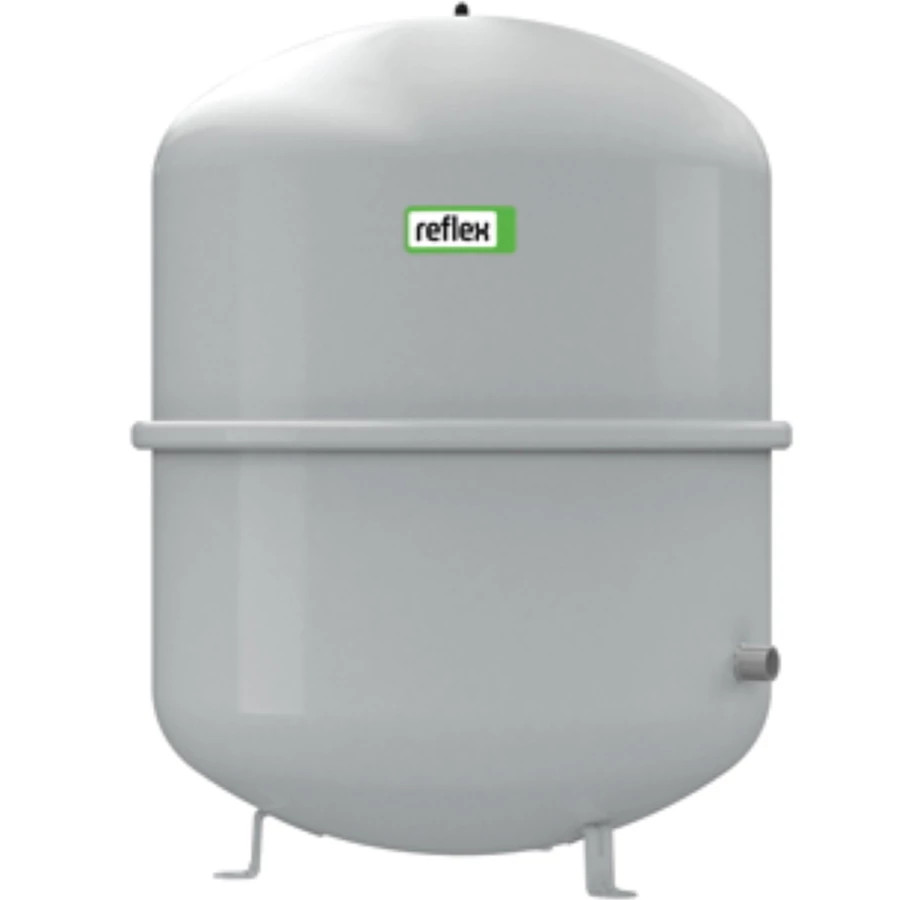

Reflex N 35, expansion vessel, grey, 4/1.5 bar
Reflex Reflex N 35
Diaphragm expansion tank for sealed heating and cooling water systems. Vessels fitted according to DIN EN 13831. Approval according to Pressure Equipment Directive 2014/68/EC.
Colour: grey
Nominal volume: 35 l
Max. useful volume: 17,5 l
Max. permissible system temperature: 120 °C
Max. perm. operating temperature: 70 °C
Max. perm. operating pressure: 4 bar
Factory provided gas supply pressure: 1,5 bar
Connection: R 3/4"
Diameter: 376 mm
Height: 466 mm
High water connection: 130 mm
Tilt dimension approx.: 599 mm
Weight: 5,60 kg
Diaphragm expansion tank for sealed heating and cooling water systems. Vessels fitted according to DIN EN 13831. Approval according to Pressure Equipment Directive 2014/68/EC.
- Durable epoxy resin coating
- Non-replaceable diaphragm according to DIN EN 13831
- 35 litres and above upright
- For antifreeze additive of at least 25 – 50 %
- With threaded connections
- Max. permissible system temperature 120 °C
- Max. operating temperature 70 °C
Colour: grey
Nominal volume: 35 l
Max. useful volume: 17,5 l
Max. permissible system temperature: 120 °C
Max. perm. operating temperature: 70 °C
Max. perm. operating pressure: 4 bar
Factory provided gas supply pressure: 1,5 bar
Connection: R 3/4"
Diameter: 376 mm
Height: 466 mm
High water connection: 130 mm
Tilt dimension approx.: 599 mm
Weight: 5,60 kg
Details
SKU
8208401
Categories
Weight
5.6 kg
Brand
Physical Characteristics
Volume
31-50 liters
Material
Steel
Colour
Grey
