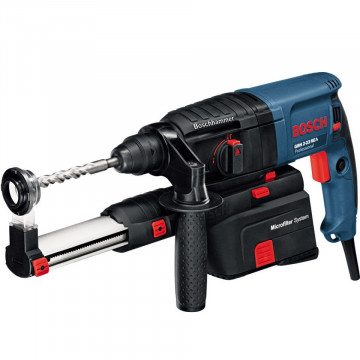

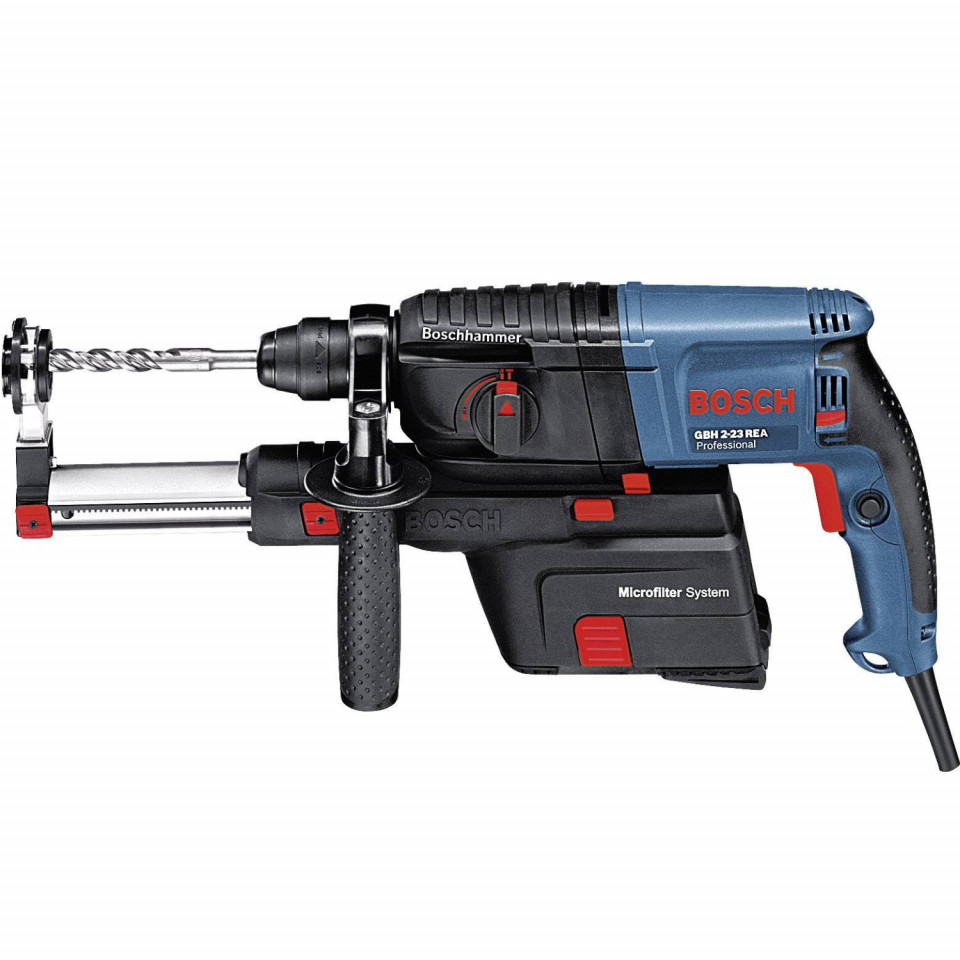

Rotary Hammer GBH 2-23 REA Professional

Description

Rotary Hammer Bosch GBH 2-23 REA Professional

The most compact solution for dust-free drilling

• Convenient working due to particularly compact design
• Integrated, removable dust extraction unit for clean, dust-free working
• Convenient working even overhead due to particularly compact design

Technical Data

Speed control  Yes
Right/left rotation Yes
Dust extraction Yes
Rated power input W 710
Impact frequency at rated speed bpm 0–4400
Impact energy per stroke J 0–2.5
Rated speed rpm 0–1000
Tool holder SDS-plus
Spindle collar diameter mm 43 (Euro-Norm)
Maximum drilling diameter without dust extraction:
– Concrete 23 mm
– Brickwork (with core bit) 68 mm
– Steel 13 mm
– Wood 30 mm
Maximum drilling diameter with dust extraction:
– Concrete 16 mm
– Brickwork (with core bit) 68 mm
Suction capacity l/min 450
Dust box capacity (for level drilling)
– Drill hole 6 x 30 mm 100 Drillings
– Drill hole 8 x 30 mm 60 Drillings
– Drill hole 12 x 50 mm 16 Drillings
Weight according to EPTA-Procedure 01/2003 kg 3.6
Weight without dust extraction kg 2.9
Protection class / II

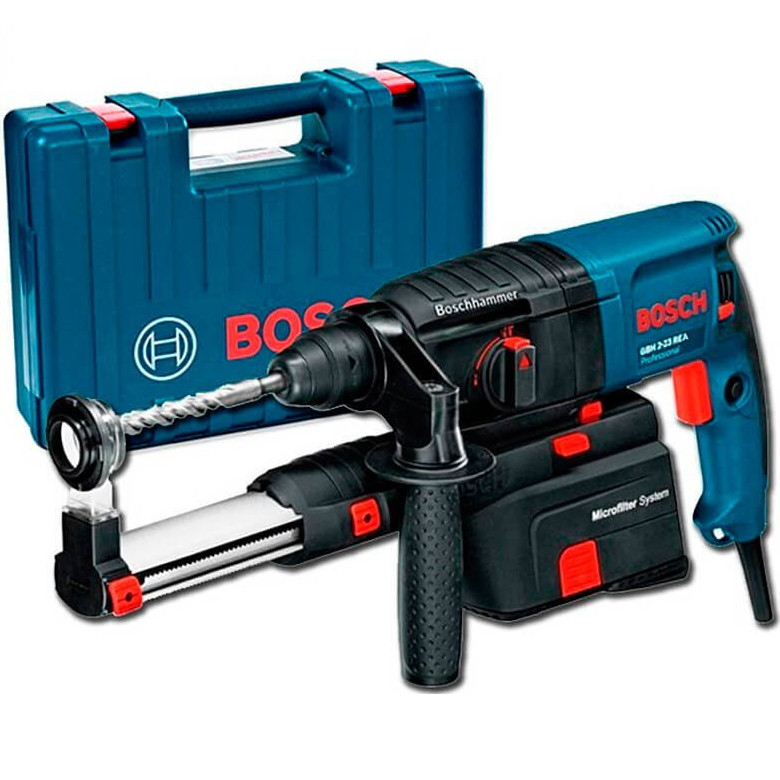

Package includes:

• Dust extraction unit
• Carrying case
• Voltage 240 V
• Auxiliary handle
• 5 x seal ring
