Sanicubic 2 Pro WP NM

Description

SFA Sanicubic 2 Pro WP NM

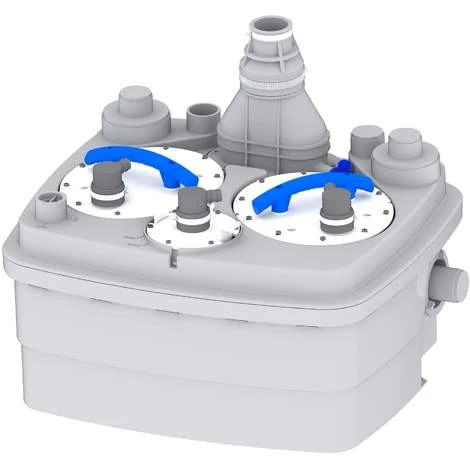

The Sanicubic 2 Pro is a high performance macerator pump for commercial use. It contains two separate, load balanced pumps with high performance macerating systems and will operate alternatively. In the event of inflow overload, both motors run at the same time or in the unlikely event that one motor fails, the other one will take over.

• Takes waste from WC’s, basin, bath, shower, bidet, washing machine, dishwasher and sink.
• Tough, reliable macerator ideal for busy business environments and commercial situations
• New design with easily removable motor for servicing and maintenance
• Pumps up to 11m vertically or 110m horizontally

The Sanicubic 2 Pro is a tough, reliable macerator pump which contains two separate load balanced macerator systems which operate alternately ensuring even wear of motors. It is ideal for busy business and commercial situations. The unit can handle waste water from WC’s, a basin, sink, washing machine, dishwasher, shower, bath, and bidet. The Sanicubic 2’s new design means the motors are easily removable for servicing and maintenance as is the water level indicator. It has two alarms for ultimate safety a hard-wired alarm and a remote wireless alarm. The Sanicubic 2 Pro has four inlets, the centre height of inlets is 140mm and it discharges through 50 mm pipework. It has a working temperature of 35ºC, however it will handle temperatures up to 75ºC for short periods. The Sanicubic 2 has a tank capacity of 45 litres and a flow rate 13m³/h. It can be connected to a Building Management System. The Sanicubic 2 Pro comes with a 2 year warranty.

Designed, made and tested in the factory in France and with 60 years of expertise and innovation, the Sanicubic 2 offers you peace of mind and with the back up from our service team there’s never been a better time to install a SFA.

SANICUBIC 2 Pro datasheet

Number of available inlets 5

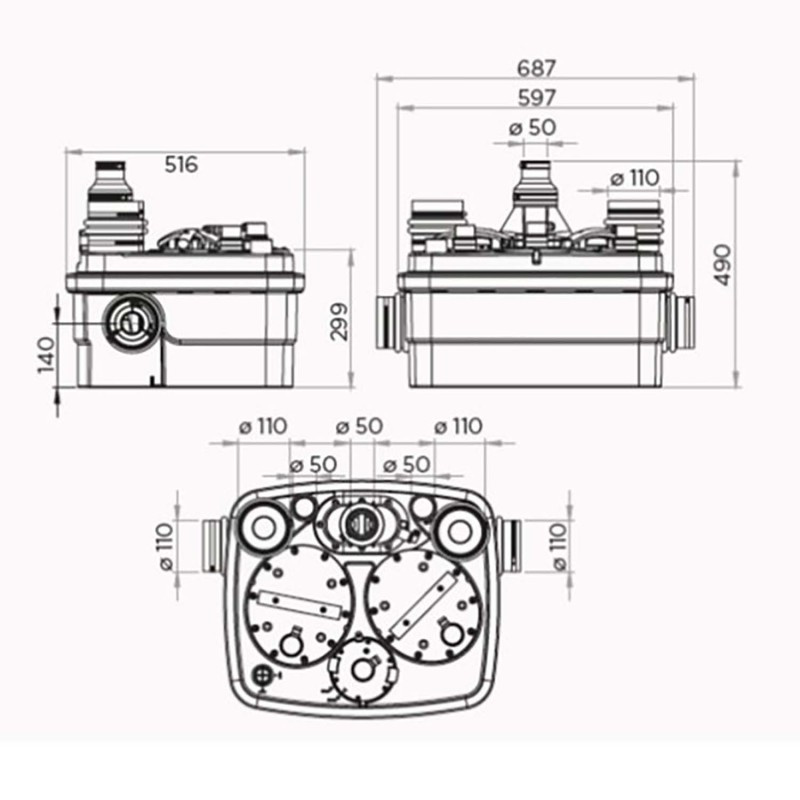

Inlet diameter • 1 inlet DN 40/50 (Ø ext. 40/50 mm) • 4 inlets DN 40/50/100/110 (Ø ext. 40/50/100/110 mm)

Motor power 2 x 1500 W

Supply voltage 220-240V/50Hz

Electrical class 1

IP rating IP68

Maximum incoming water temperature 70°C intermittently (max 5 min)

Discharge pipe diameter DN40 (Ø ext. 50 mm)

Control box IP rating IPX4

Weight (including accessories) 35 kg

Maximum recommended depth 11 m

Tank volume 45 L

Vent diameter 50 mm

Maximum depth (Q eq 0 L/min) 13 m

ON/OFF level 140/60 mm

Alarm level 210 mm

Possible connections

Connection options: blackwater from several toilets, greywater from bathroom, kitchen, laundry
