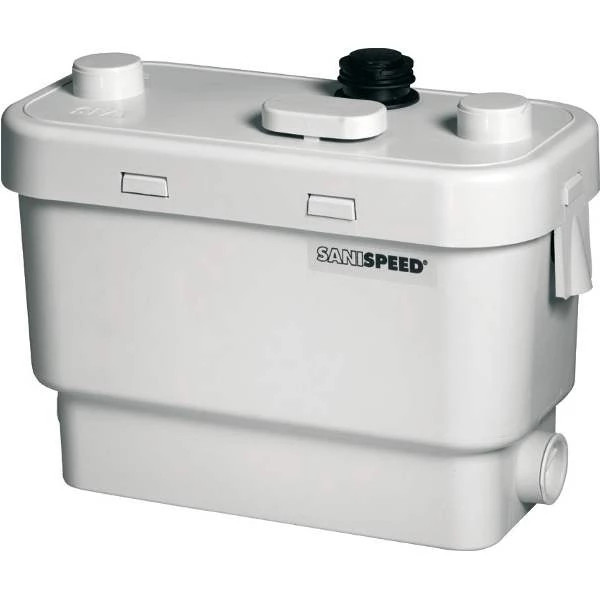

Sanispeed

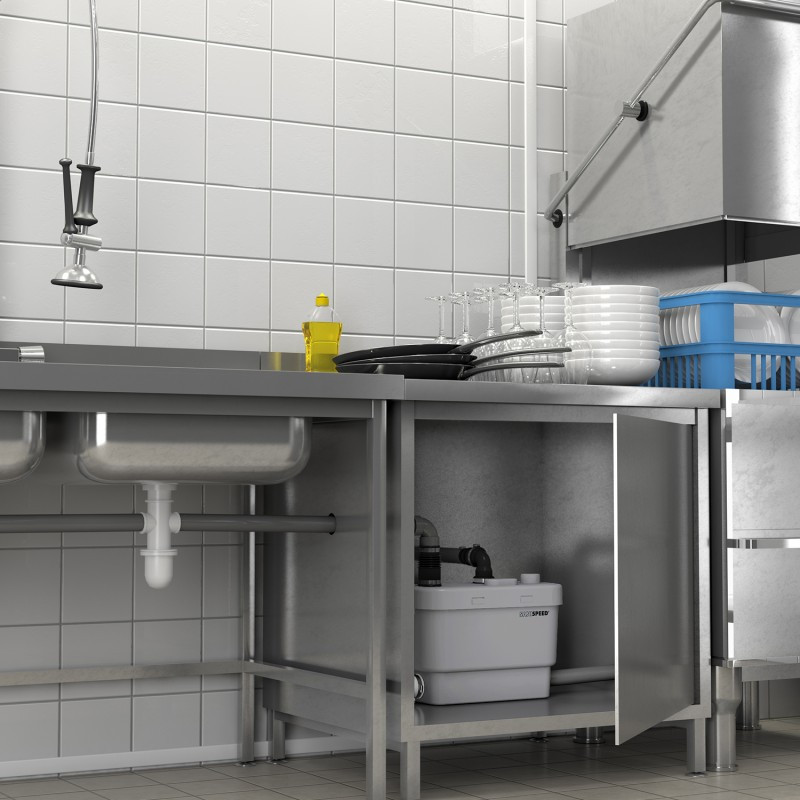

The Sanispeed is ideal for pumping waste water from appliances and sinks in light commercial applications. It has four inlets so can connect a range of appliances and sinks to the one unit. It has a quiet motor and fits below counters or in cupboards to easily hide the unit from sight. It discharges through 32 mm pipework and has a working temperature of 35ºC, however it will handle temperatures up to 75ºC for short periods. The Sanispeed also contains a carbon filter to neutralise odours and the unit meets European standard EN12050-2

The Sanispeed comes as standard with a 2 year warranty. A Sanialarm can be fitted to this product for added peace of mind if required.

Designed, made and tested in our factory in France and with 60 years of expertise and innovation, the Sanispeed offers you peace of mind and with the back up from our service team there’s never been a better time to install a SFA.

PUMP TECHNICAL DATA

Maximum flow rate 110 L/min
Shut-off head (Q=0 l/min) 9 m
IP rating IP 44
Tank volume 10,4 L
Free passage 8 mm
Discharge pipe diameter Ø ext.32 mm
Inlets diameter 4 inlets Ø ext. 40 mm
Low inlets height
(compared to ground level) 46 mm
Activation level ON
(compared to ground level) 115 mm
Activation method Membrane
Maximum admissible waste
water temperature 75°C (max 5 min)
Weight 6.8 kg
Non-return valve included

MOTOR DATA

Electrical power supply
Single-phase 220-240 V / 50-60 Hz
Electrical power rating 400 W
Maximum current input 2 A
Electrical class I
Thermally protected
Oil-filled

MATERIALS

Motor body Polyamide
Pump cover plate Polyamide
Impeller Polyamide
Motor shaft Stainless steel
O-Ring Nitrile
Sealing ring Nitrile
