Seismic sensor for solenoid valves M90W

Description

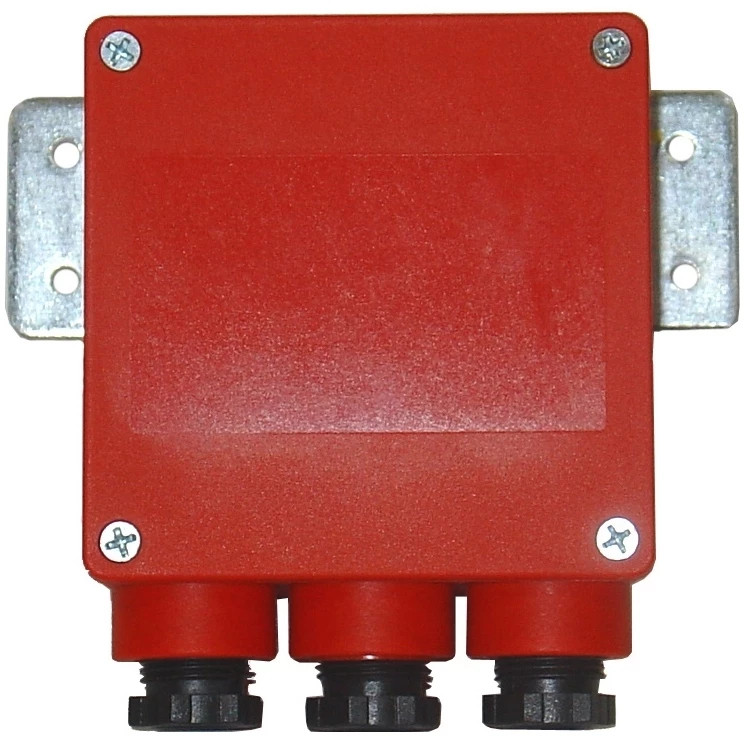

Seismic sensor for solenoid valves Madas M90W

Device that, combined with a gas safety solenoid valve, controls its closure in the event of:

• seismic event (with analysis over time and based on the frequency of the accelerations)
• remote control (e.g. gas detector, emergency closure)

The device has a relay alarm output that can be used for remote signals and to disconnect the power supply, thus eliminating any sources of ignition or explosion. The sensor can be connected electrically to normally closed/open solenoid valves with manual reset (also already installed).

The seismic sensor has been tested in accordance with: ASCE 25-06 (USA) - TS12884 (Turkey).

Specifications

Ambient temperature (TS) : -20 ÷ +60°C
• Supply voltage : 12 Vdc - 12 V/50 Hz - 24 Vdc - 24 V/50 Hz - 110 V/50 Hz - 230 V/50-60 Hz*
• Supply voltage tolerance : -15% ... +10%
• Electric wiring : cable gland PG 11
• Absorbed power : 3 VA
• Protection rating : IP65
• In compliance with : EMC Directive 2014/30/EU - LVD Directive 2014/35/EU - RoHS II Directive 2011/65/EU
* Only single-phase, the device does not work if it is powered with three-phase voltage.
