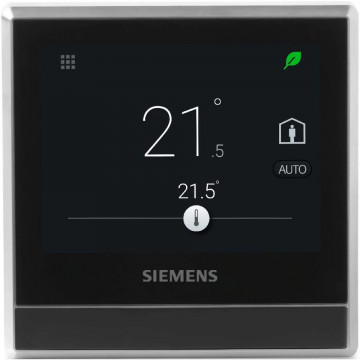

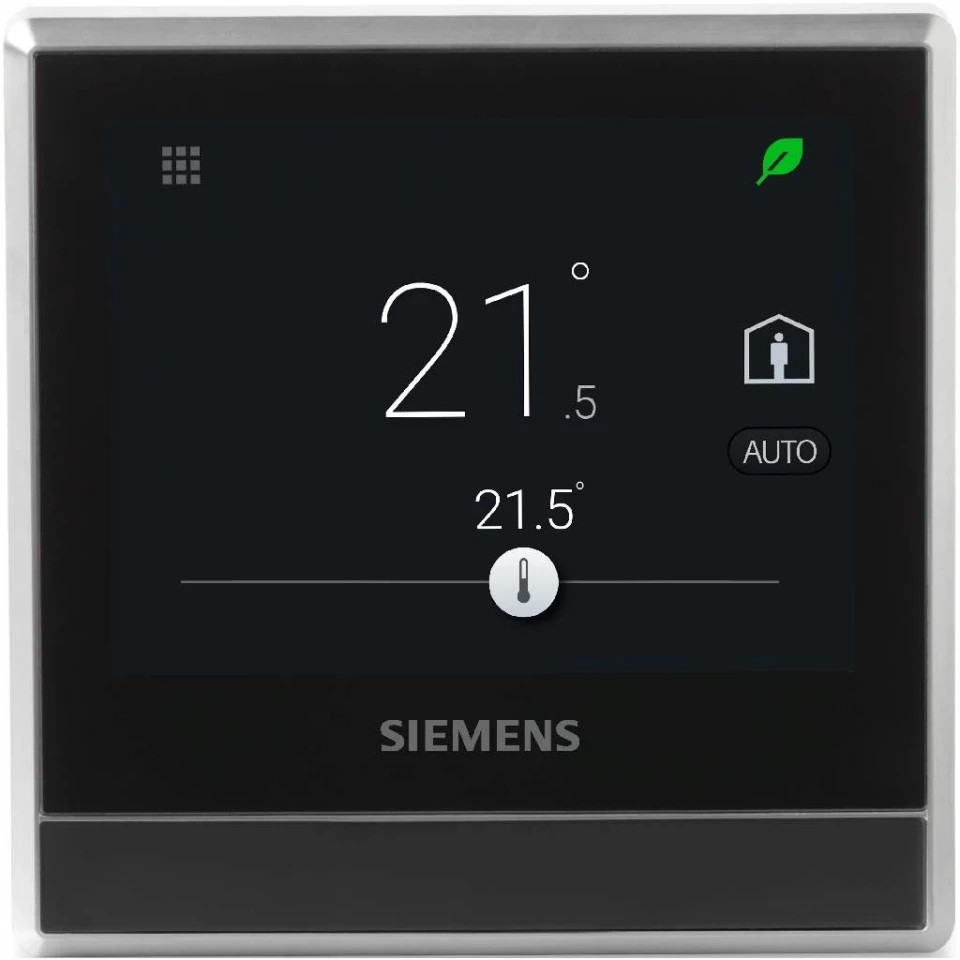

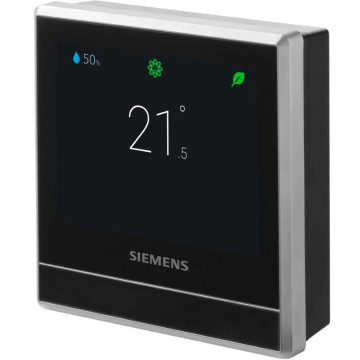

Siemens Smart Thermostat RDS110

Description

Siemens Smart Thermostat RDS110

Siemens RDS110 is a smart room thermostat connected to the internet,
which can be controlled from your mobile phone or tablet. The Siemens RDS110 thermostat can be used either directly, via the touchscreen interface or on the phone (using the Google Play / App Store application).

Illuminated 90 mm color LCD touch screen for intuitive use

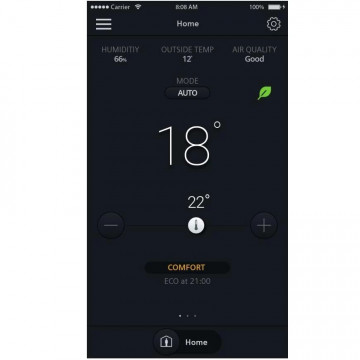

Mobile smartphone app
Algortim PID patented, self-learning
"Green leaf" button for energy-optimized operation
Integrated sensor for air quality indication
Automatic operation according to a time schedule
Multifunctional inputs for window contacts, remote management sensors, etc.
Outputs for 2 relays for heating, humidifier, dehumidifier or hot water boiler equipment.
Complies with Class IV of the Eco Design Directive.
Siemens' new RDS110 smart thermostat features 6 high-precision sensors:

temperature sensor
humidity sensor
light sensor
proximity sensor
presence sensor
organic particle detection sensor.
All these sensors being incorporated in the RDS110, allow the thermostat to operate completely autonomously.

Siemens RDS110 thermostat features:

Direct selection of temperature and operating mode
RoomOptiControl function with Green leaf button for energy-optimized use
Air quality indicator: “Good”, “Okay”, “Poor” (Good / OK / Poor)
Temperature setting limitation, for use in public spaces
Standby screen protector to prevent unauthorized access
Manual touchscreen switching between "Home", "Away" and "OFF"
Room temperature control via integrated temperature sensor or remote mounted sensor
Patented self-learning algorithm with PID response, which guarantees optimal temperature control in any type of room / home
Optimized start-up function, which ensures the set temperature is reached in the shortest time
Limit the floor temperature via a remote sensor to an electric underfloor heating system
Room humidity control via integrated humidity sensor
Detects a person's presence via the integrated PIR sensor
2 Multifunctional, optional and configurable inputs for: - Window contact, eg - Remote temperature sensor - Floor sensor - Outdoor sensor - Remote humidity sensor
Output with 2 relays for: - Heating equipment - Extra outlet for a domestic hot water boiler, humidifier or dehumidifier
Periodically control the pump / valve as anti-lock protection
Menu navigation expert, for easy guidance through thermostat functions and settings
Ability to remotely upgrade the thermostat firmware.
The indicated "Green leaf" informs the User that the system is operating in an energy optimized manner. When the leaf is red, it means that the thermostat setting has been changed. Pressing the red leaf returns to energy-optimized operation.

Siemens RDS 110 wifi thermostat data sheet.

Electrical voltage: AC 230 V (+ 10% / -15%); Frequency: 48… 63 Hz. Electric power consumed: Max. 9 VA. Fuse Safety: max. 10 A
Radio parameters: 2.4… 2.4835 GHz frequency band. Maximum radio frequency power 18 dBm. WLAN standard: IEEE 802.11b / g / n (HT20), WLAN channel: 1 ~ 13.
Temperature setting range: 12… 35 ℃. Temperature measurement range: 0… 50 ℃. Accuracy at 25 ℃: ± 0.5 K. Temperature display resolution: 0.5 K.
Humidity measurement range: 0% ... 100%. Accuracy at 25 ℃: ± 5% r.h. Humidity display resolution: 1%
Interface connections: Micro USB. Electrical cable connection: max. 2.5 mm2 (14… 20 AWG).
Thermostat weight = 231 gr, Total package weight = 435 gr. Thermostat dimensions: 91x91x26 mm.
