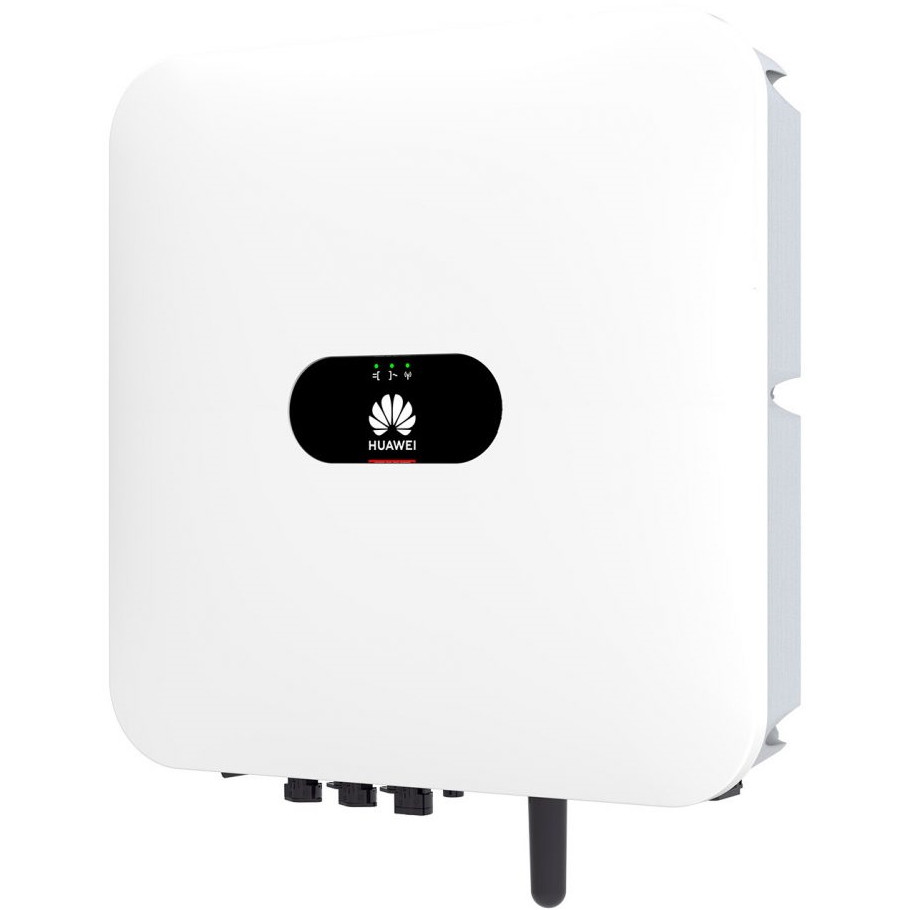

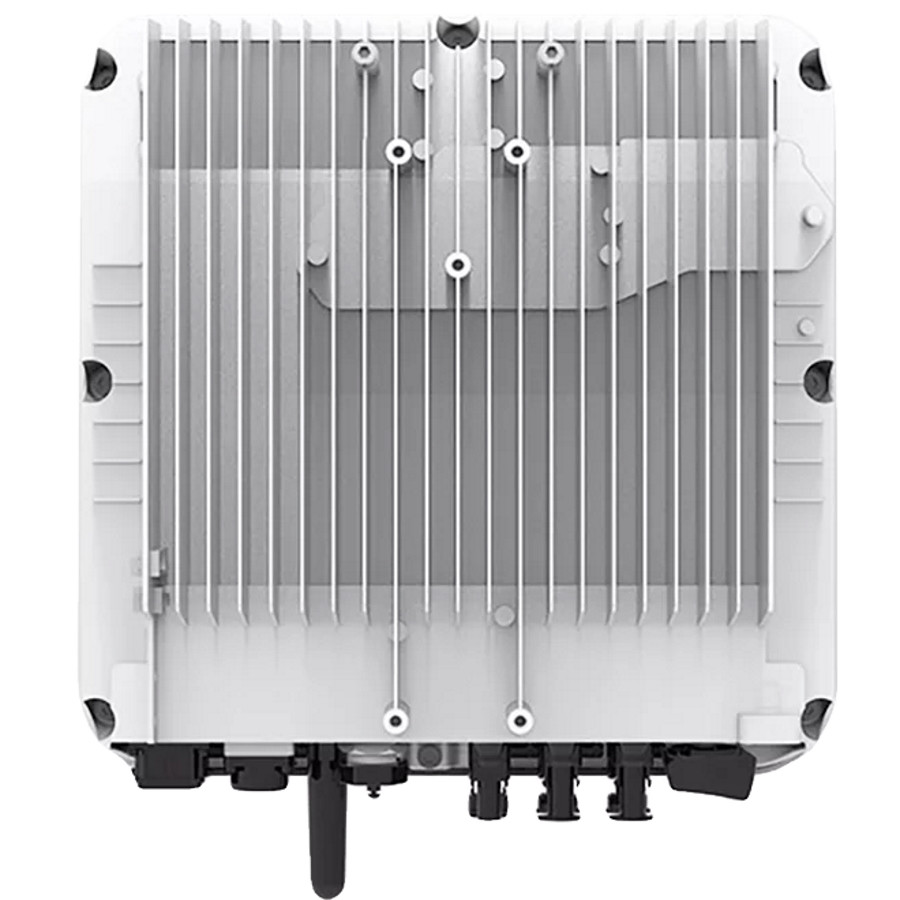

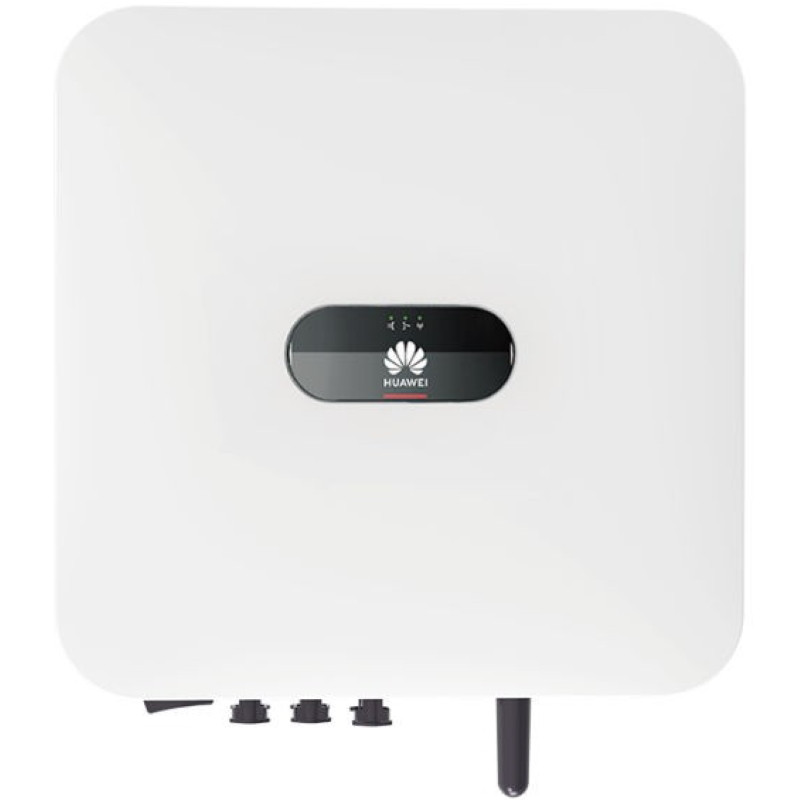

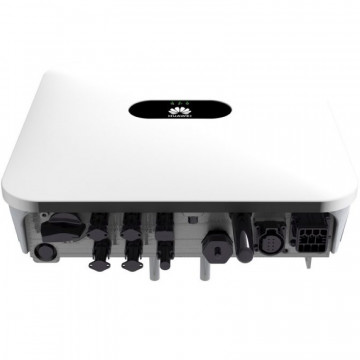

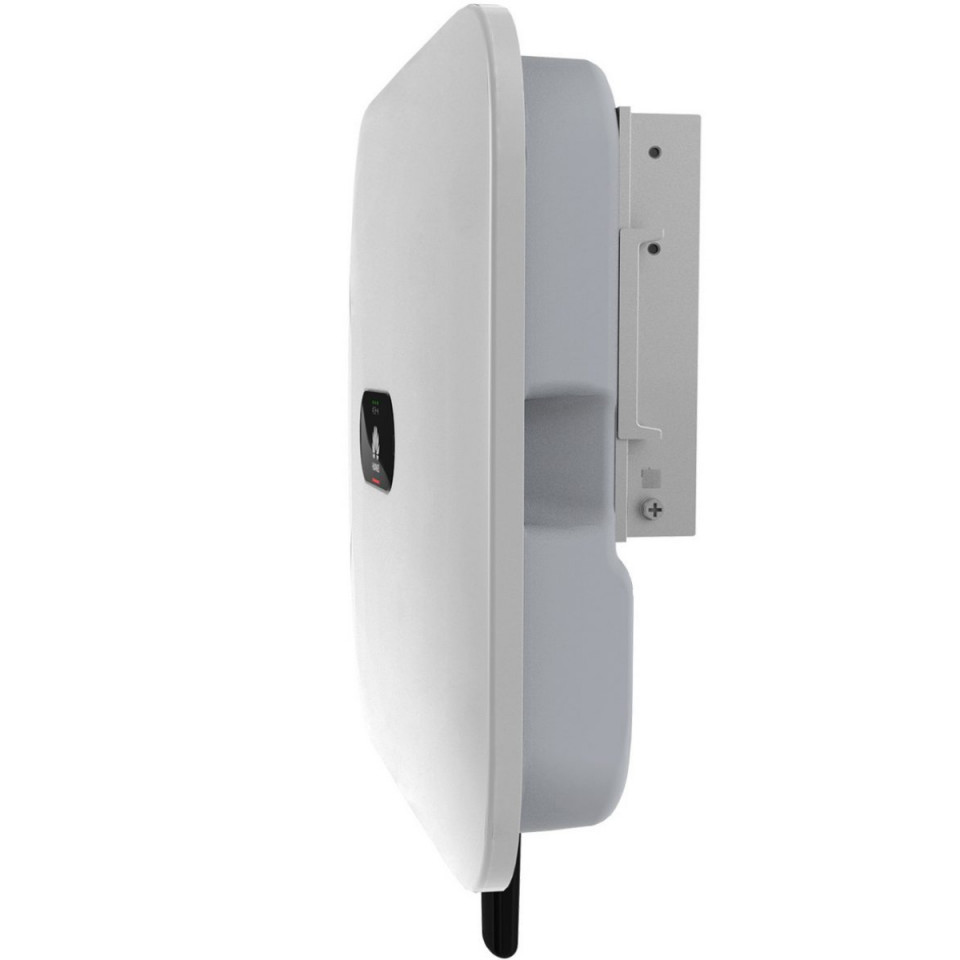

Smart Energy Controller SUN2000-6KTL-L1 6kW

Maximum input voltage

• No battery connected: 600 V
• LG-RESU battery connected: 495 V

Maximum input current (per MPPT)

12.5 A

Maximum short-circuit current (per MPPT)

• No battery connected: 18 A
• LG-RESU battery connected: 15 A

Operating voltage range

• No battery connected: 80–600 V
• LG-RESU battery connected: 350–450 V

Startup voltage

100 V

MPPT voltage range

90–560 V

Rated input voltage

360 V

Power supply

2

Number of MPPTs

2

Battery normal voltage

450 Vdc

Battery voltage range

350-600 Vdc

Battery maximum current

15 A

Battery type

• Li-ion
