Smart Thermostat netatmo
Description

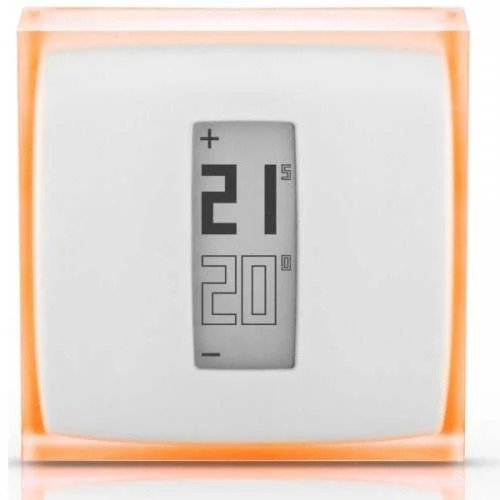

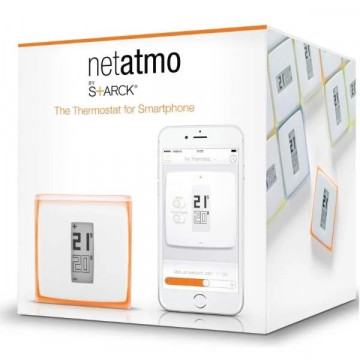

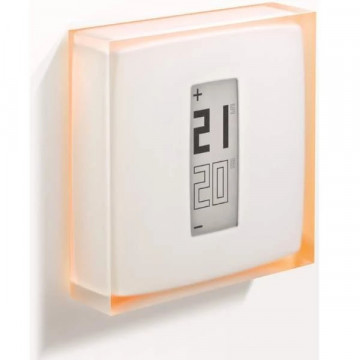

Smart Thermostat netatmo
Programmable Thermostat with smart operation. E-Paper display. Translucent plexiglass cube designed by Starck. Can be customised with 1 of the 4 available colours. Temperature can be directly adjusted on the Thermostat. Designed for indoor use only. Withstand 95% relative humidity.
Control your heating remotely
Use your Netatmo Thermostat to change your home's temperature; from your bed or from the other side of the world.
Schedule your heating for your return from a holiday.
Right temperature at the right time
The Thermostat uses your answers to 5 questions to create a schedule that’s based on your habits and lifestyle; so you only use the heating when you need it.
Auto-Adapt function
The Netatmo Thermostat’s Auto-Adapt function uses your home’s insulation and the outdoor temperature to programme when your heat should switch on. So you can have the temperature you want at just the right time.
Auto-Care function
Thanks to its Auto-Care function; the Netatmo Thermostat can tell you when its batteries are low; or notify you of a problem with your heating system’s operation.
Product size
Thermostat & Relay: 83x83x22 mm
Sensors and measurements
Temperature (measurements):
Range: 0°C to 50°C (± 0.1°C)
Temperature (setpoint):
Range: 5°C to 30°C (± 0.5°C)
Units: °C only
Power
Thermostat: 3 AAA batteries (up to 2-year lifespan*)
Relay: 220/240 V
Setup and compatibility
The Netatmo Smart Thermostat is compatible with most types of boiler, whichever energy you use: electricity, gas, fuel oil, wood or heat pump. Not sure yours is a match? Visit check.netatmo.com.
Replaces wired and wireless thermostats
Dry contact Thermostat and Relay, potential free (ON/OFF)
Switching current: max 4 (1) A
Switching voltage: max 250 VAC
Maximum switching capacity: 120 VA (4A load @ 30V, 1A load @ 110V/120V or 0,5A load @ 220V/240V)
Power factor: cos φ > 0.8
Pack contents
1 Smart Thermostat
1 Relay
1 mobile stand and 1 wall-bracket
1 wall mounting plate (132 x 132mm)
1 boiler adaptor
1 mains adaptor
4 color adhesives
3 AAA batteries
4 screws and 4 anchors
Requirements
High-speed wireless internet connection needed. Public hotspots not supported
Connectivity specifications
Between the Relay and the Internet box: Wi-Fi 802.11 b/g/n (2.4GHz). Open/WEP/WPA/WPA2-personal (TKIP and AES)
Between the Thermostat and the Relay: radio long-range (868 MHz)
