Smatrix Base PRO Controller X-148 Modbus RTU

Description

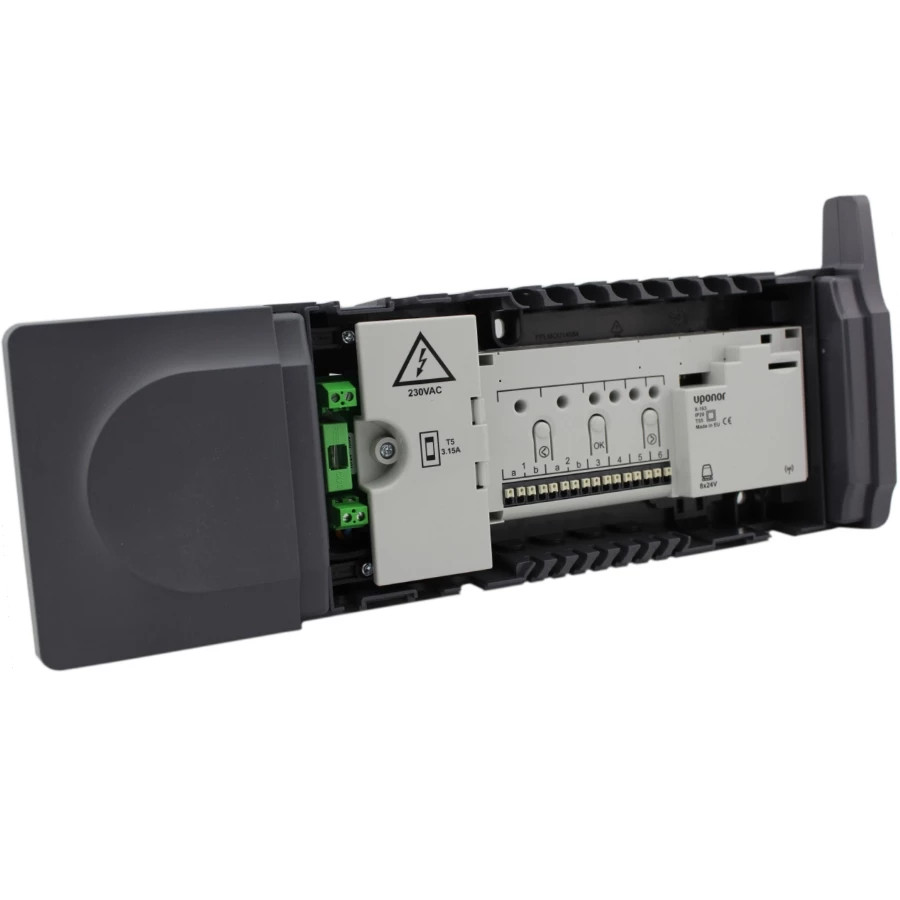

Uponor Smatrix Base PRO Controller X-148 Modbus RTU

Uponor Smatrix Base PRO is available for integration into a Building Management system via KNX or Modbus RTU, but also as a standalone solution with user friendly touch screen:

• autobalancing optimizing energy use and comfort. • up to 6 room thermostats and 8 actuators (24V) per controller and 6 channel expansion module option (with M-140). • pump and boiler relays • valve and pump exercise

Uponor Smatrix Base Pro controller X-148 ModBus RTU • Read data points, e.g. outdoor / room / floor or humidity level. • Read and write data points: e.g. room setpoint.

Uponor Smatrix Base PRO X-147 uses a microSD card for cloning (interface settings), automatic backup (settings and thermostat registration data), manual restoration of backup, data logging (room data, controller data, system data and events) and upgrading software.

The Uponor Smatrix Base PRO Controller X-148 Modbus RTU is preloaded with the correct software for connection and integration to a building management system (BMS) through a Modbus RTU connection over RS-485.
The BMS gets access to the following in the Base PRO system.

Read:
• Outdoor temperature
• Room temperature
• Floor temperature
• Humidity level
• Actuator status
• Pump or boiler status
• General purpose input (GPI) status
• Loss of thermostat connection
• Dynamic heat curve offset in integrated heat pump

Read and write:
• Room setpoint
• Min/max levels for setpoint
• Activation of setpoint overrride for analog thermostats
• Min/max levels for floor temperature
• Heating/Cooling state
• Heating/Cooling offset
• Comfort/ECO
• Autobalancing on/off
• Cooling not allowed for a room
• Comfort setting
• Integrated heat pump defrost state*
• Relative humidity (RH) control
