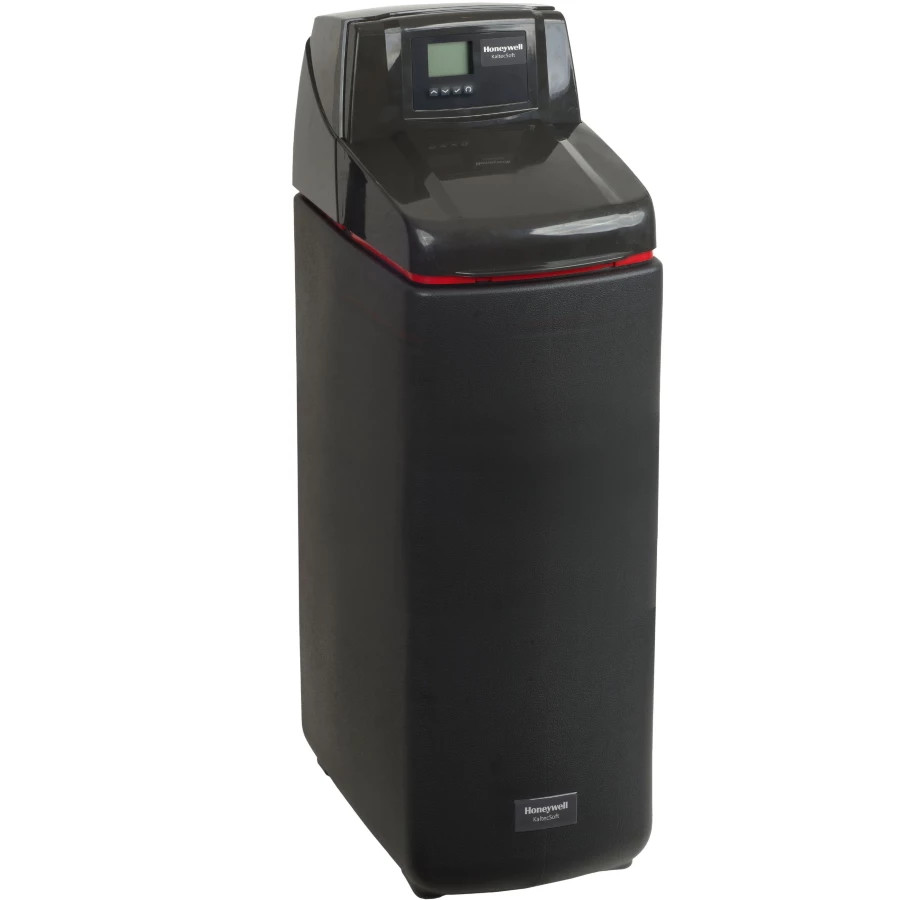

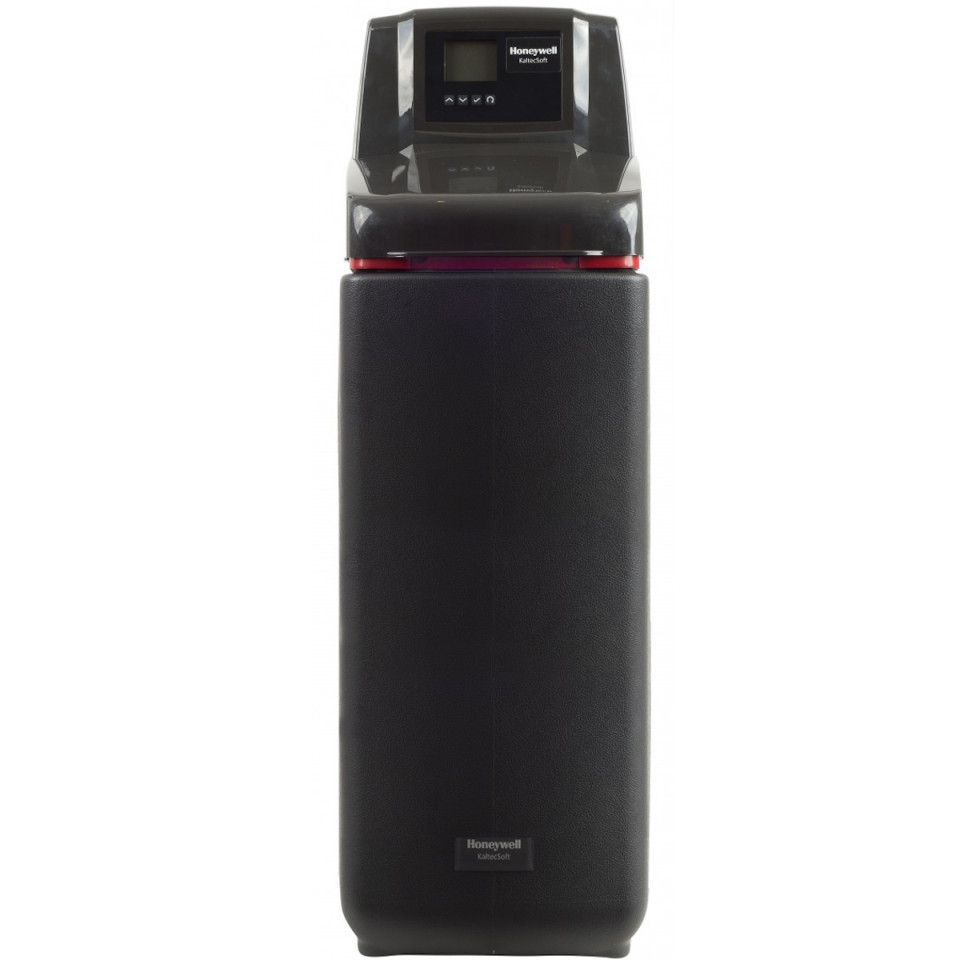

Softening device KaltecSoft KS30I-60

Description

Softening device resideo KaltecSoft KS30I-60

APPLICATION

Calcium carbonate dissolved in water is a valuable mineral but may create serious problems to private households as soon as the water is heated. A solid layer of lime scale, is formed preferably on hot surfaces. This scale lowers the heat efficiency of water heaters and boilers and reduces the life time of expensive appliances connected to the water supply.
KaltecSoft is designed to provide a cost efficient solution to protect your water installations. KaltecSoft combines the proven ion exchange technology with a state-of-the-art control valve. Regeneration is volume controlled to ensure minimum consumption of water and salt.
KaltecSoft is easy to install and simple to operate.

SPECIAL FEATURES

• Compact sizes: KS30E-30 and KS30I-30 can be installed under the sink
• Multiblock:
– bypass function
– one sampling valve for measuring the hardness both of the fresh water (in bypass position) and the
treated water (in operating position)
• Proportional brining - Before each regeneration, the device checks the consumed amount of water and regenerates proportionally to the water consumption
• Automatic capacity adjustment
• Compliant with the requirements of the DM174 regulation (KS30I-xx)
• Simple operation
• Easy installation

Technical Data

Nominal diameter: DN20
Average volume of the drinking water which can be soften by reducing the hardness from 21°dH up to 8°dH / 37°fH up to 15°fH: 5000 liter
Connection/Sizes
Dwelling units:3 - 8
Electrical connection: 230 V / 50 Hz
Pressure values
Max. flow rate: 3 m3/h
Operating pressure range: 1 - 8 bar
Operating temperatures
Drinking water temperature range: 5 - 30°C
Ambient temperature range: 5 - 40°C
Nominal flow rate @Δp=1.0bar acc. to EN 14743: 1.68 m3/h
Quantity of ion-exchange resin:20 l
