Solar system with 2x Flat panels Tesy SP 08 260 CSL and Tank 200 liters

Description

Solar system with 2x Flat panels Tesy SP 08 260 CSL and Tank 200 liters

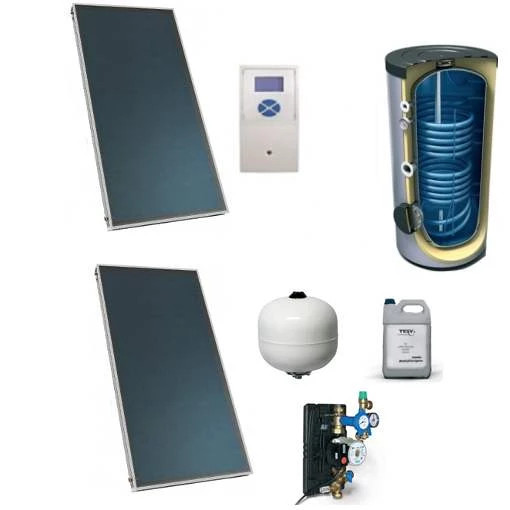

Tesy solar panel system that includes:

2 flat solar panels SP 08 200 CSL
Solar boiler EV7/5S2 200 liters
Hydraulic group FlowBox 8010 Single
Expansion tank 12 liters VS12
ELIOS X3 solar automation
Concentrated antifreeze liquid 10 liters
2 Automatic deaerators RS341 S00 DN 16 KIT
Automatic aerator MV 15 SOL
Clamping system for copper pipe
Thermal probe fixing system
The package does not include the solar panel mounting system.

Solar panel technical data:
Effective solar panel surface: 2.1 sq m; Absorber surface: 1.87 sq m
Selective solar panel coating: ETA plus
Maximum operating pressure of solar panels: 6 bar; Maximum operating temperature: 160°C;
Collector efficiency: 77%;
Solar panel net weight: 31 kg;
Width = 966 mm; Height=2176 mm; Depth = 90 mm.
In addition to the temperature regulation function, digital solar automation has many options and advanced functions for system management and performance optimization.

Solar controller features:
-2 exits;
- temperature display for 24 hours;
-solar cooling function
- "antifreeze" function
- pump anti-blocking function

Boiler features:
Boiler capacity = 200 liters
Serpentine thermal power=30/20 kW
Serpentine surface = 0.75/0.54 m2
Hot water production = 648+468 liters/h
Thermal losses = 2.5 kWh/day
Max. temperature boiler 95°C; maximum pressure = 8 bar
Boiler dimensions ØxL = 600x1200 mm
Real weight = 70 kg
