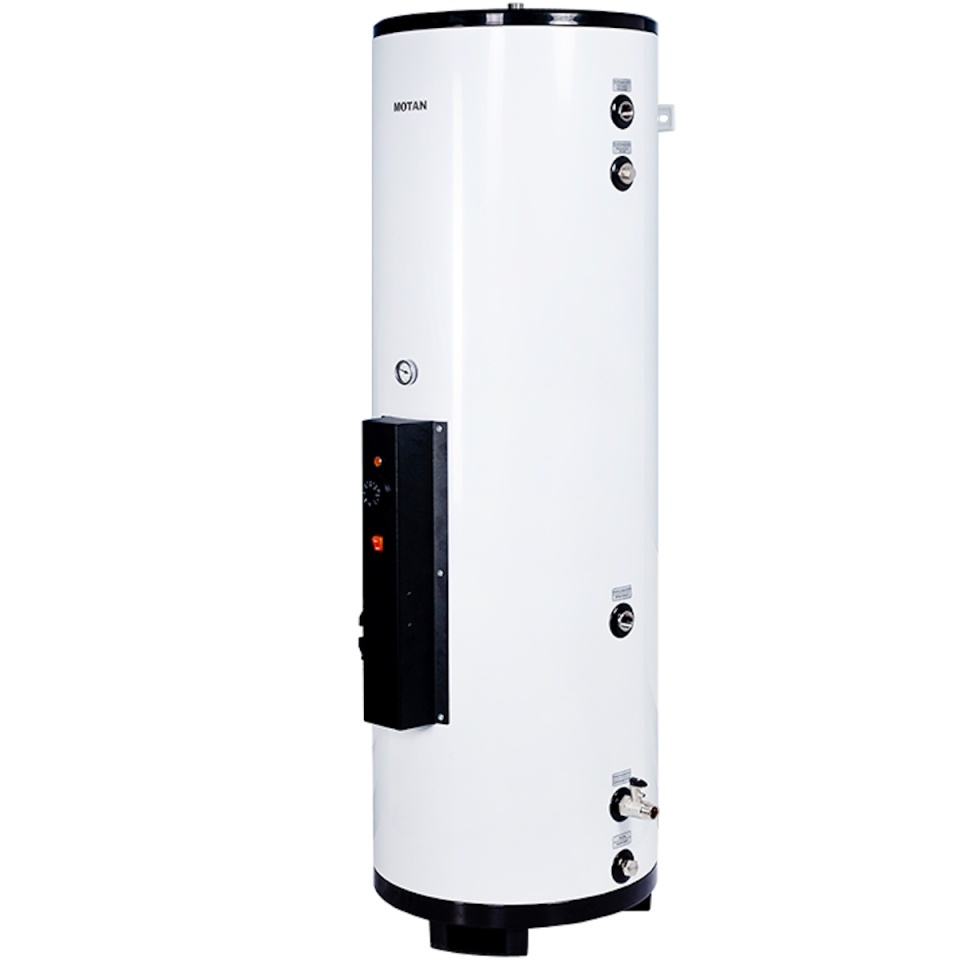

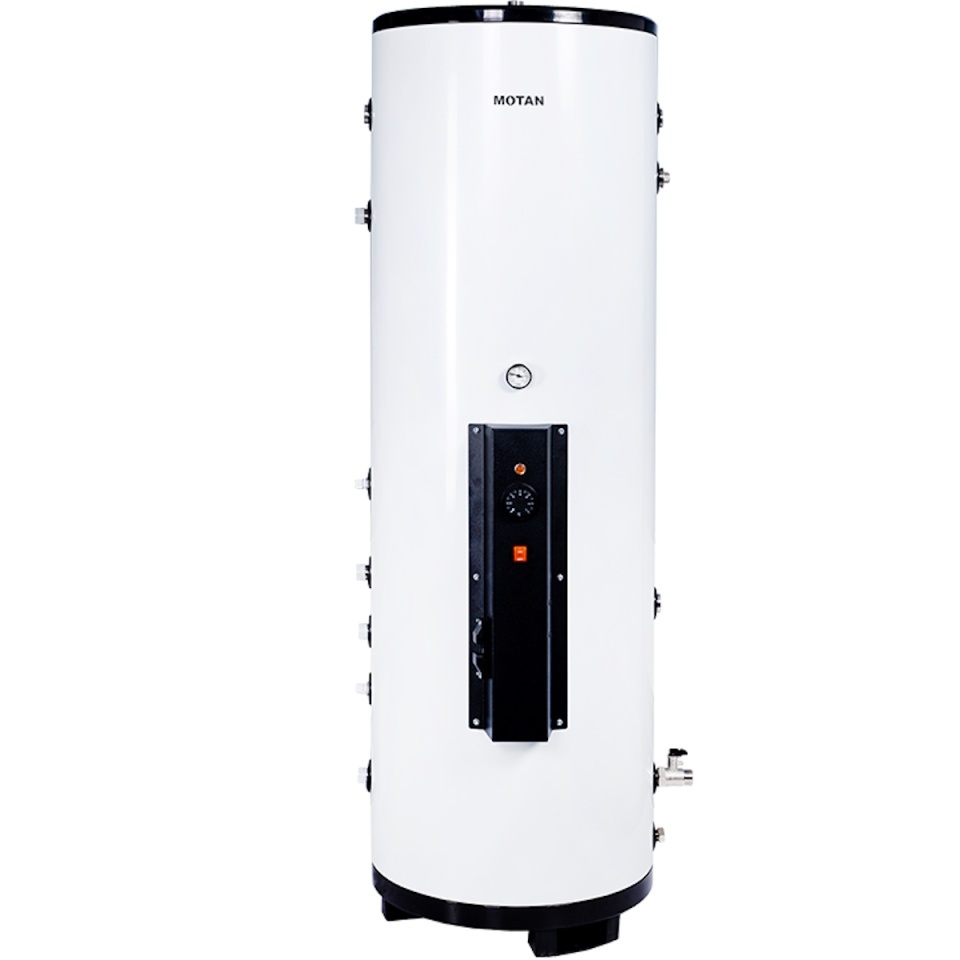

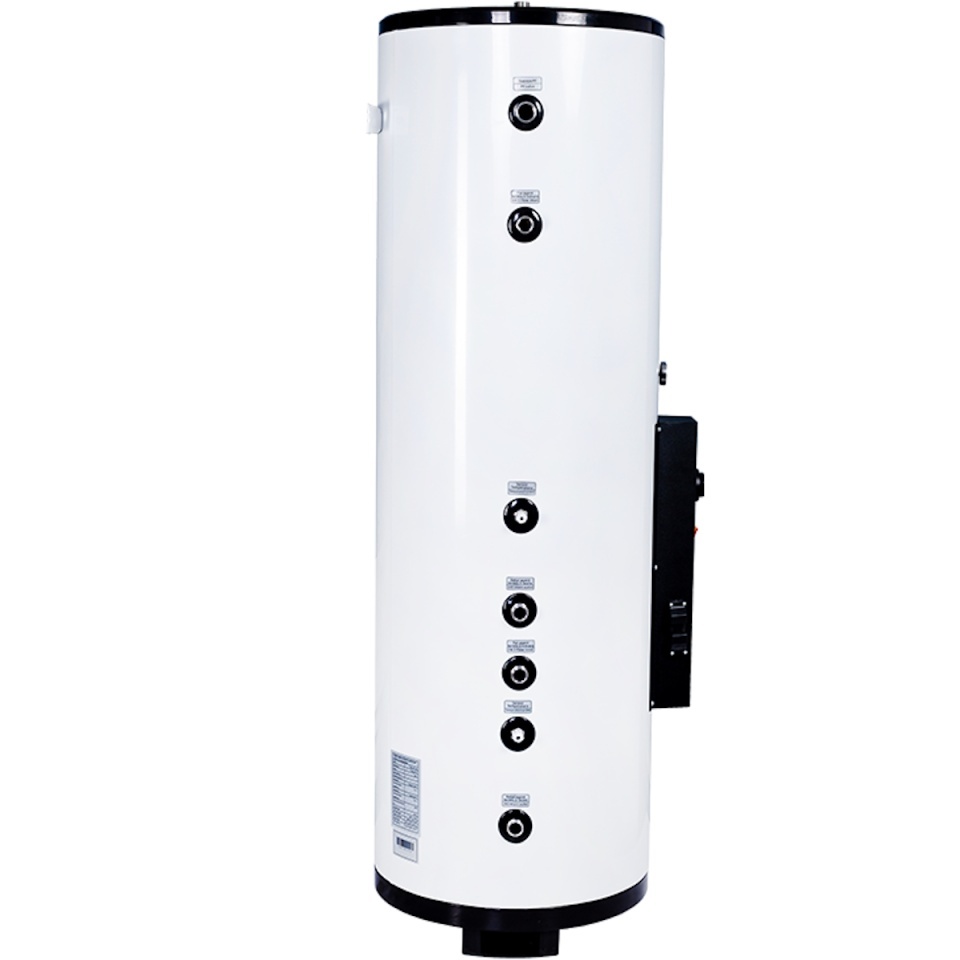

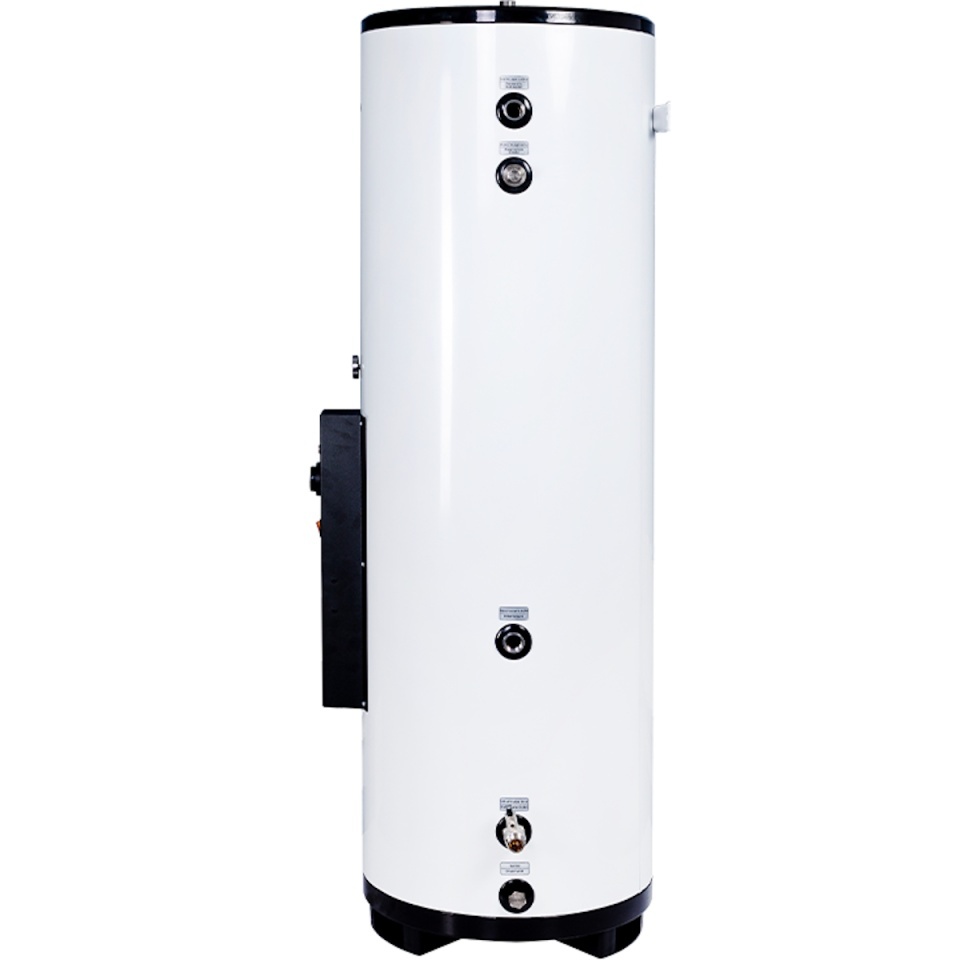

Stainless steel DHW Tank with 2 coils WKT-HC-300

Description

Stainless steel DHW Tank with 2 coils Motan WKT-HC-300 for heat pumps and solar plants

The WKT-HC 300 liter tank with 2 coils is used for domestic hot water preparation, being suitable for heat pumps and solar panels.

made of STAINLESS STEEL
2 embossed STAINLESS STEEL coils
overtemperature and overpressure protection systems
equipped with magnesium anode for anti-corrosion protection;
equipped with OPTIONAL electrical resistance
reduced heat loss (EFFICIENT INSULATION).

Specifications

Tank capacity 300 liters
Inner body material INOX, Casing: painted galvanized sheet
Insulation: polyurethane foam, Insulation thickness: 50 mm
Spiral surface 1: 2.2 m2, Spiral surface 2: 1 m2
Diameter: Ø560 mm, Height: 1895 mm
Weight: 63 kg
Mounting: vertical, on the floor
Maximum working temperature: 80ºC
Maximum working pressure CH circuit: 3 bar
Maximum working pressure ACM circuit: 6 bar
Electrical resistance (optional) - 6 kW (380 V AC)
Protection degree: IPX4.
