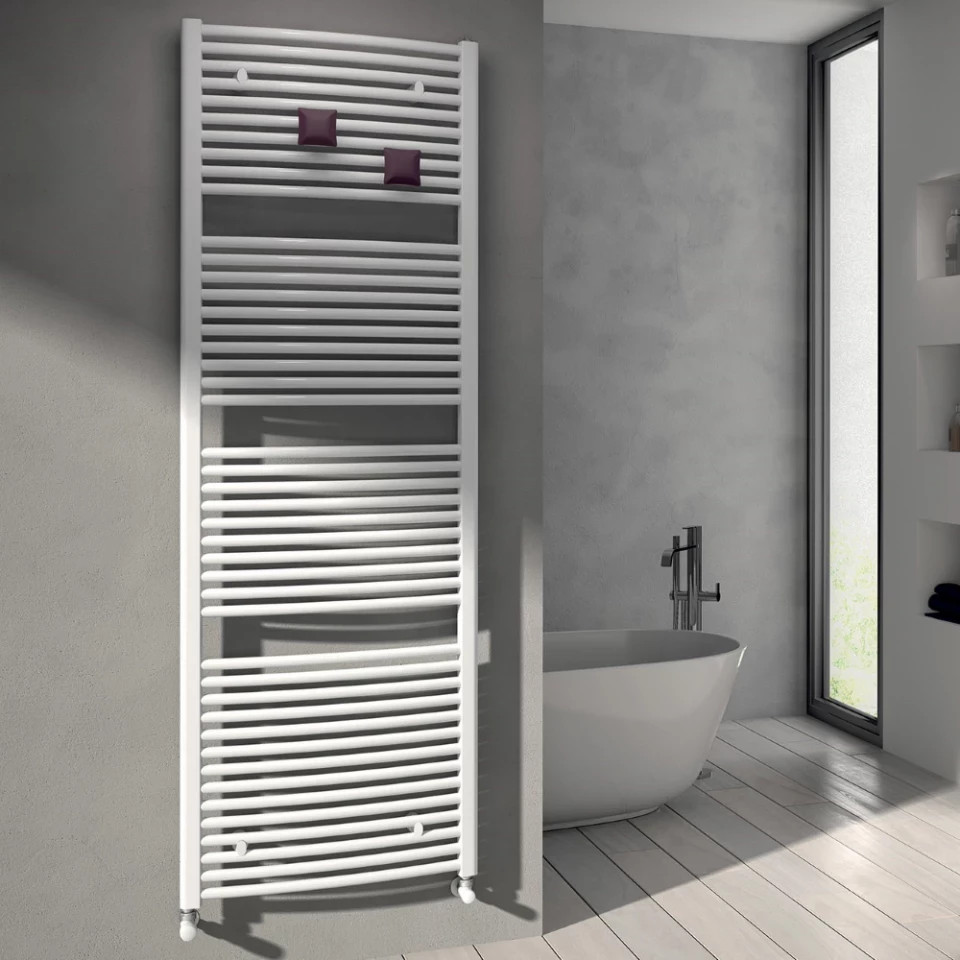

Steel towel Warmer Radiator Venus 5/12

VENUS with its linear and accurate shape allows excellent use and excellent ease of cleaning. Available in 4 heights and 4 widths, also in the version with 50 mm connections. With the insertion of the electric resistance (optional) it can work even in periods when the system is off.

CONSTRUCTION FEATURES

• steel towel warmer radiator with horizontal elements featuring round tubes with a 23 mm diameter
• side manifolds with a 40 x 30 mm semioval section
• manifold threading and central connections (50 mm) 1/2” Gas right
• maximum working pressure 8 bar
• maximum working temperature 95°C
• Colour: White

Thermal power: Q=662 W (at 90/70/20˚C)
Dimensions: WxH = 497x1.118 mm
Water content = 5.1 liters;
