Name: Storage Tank BA120L-V1
Brand: Motan
SKU: BA120L-V1
Price: 5027.79 RON
Availability: InStock

Description

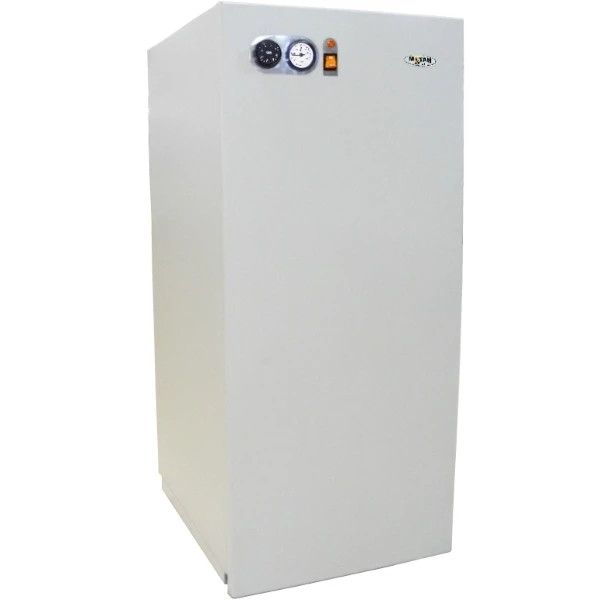

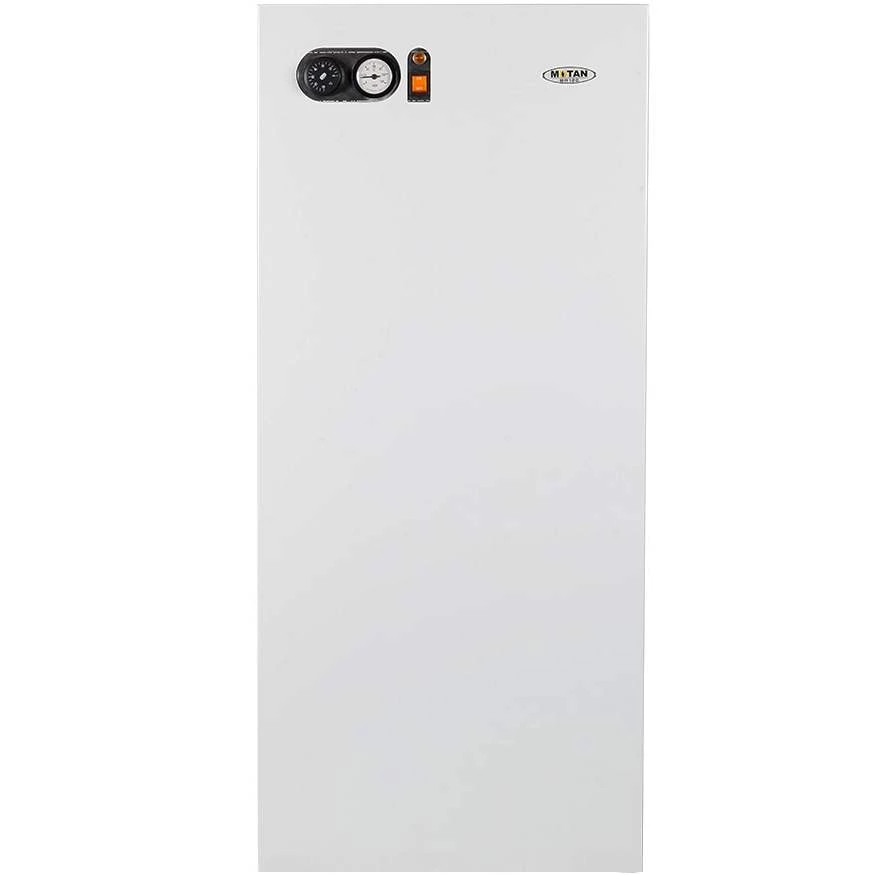

Storage Tank Motan BA120L-V1

Equipped with anti-scald mixing valve
The water heater’s body is made of Stainless Steel, which offers long-term shock and corrosion protection (about 10 years) and ensures the stored water quality
It works on the principle of heat accumulation and is attached to a gas boiler that produces domestic hot water instantaneously. The result is a gas boiler – water heater combination which offers superior efficiency and comfort.
It stores water at temperatures of up to 75–78 0 C, dramatically increasing the availability of stored domestic hot water. This eliminates the risk of Legionella growth and spread.
Heat losses are considerably reduced due to the use of high quality polyurethane foam insulation

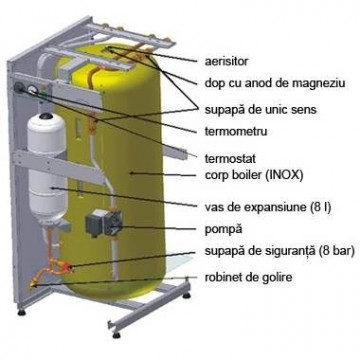

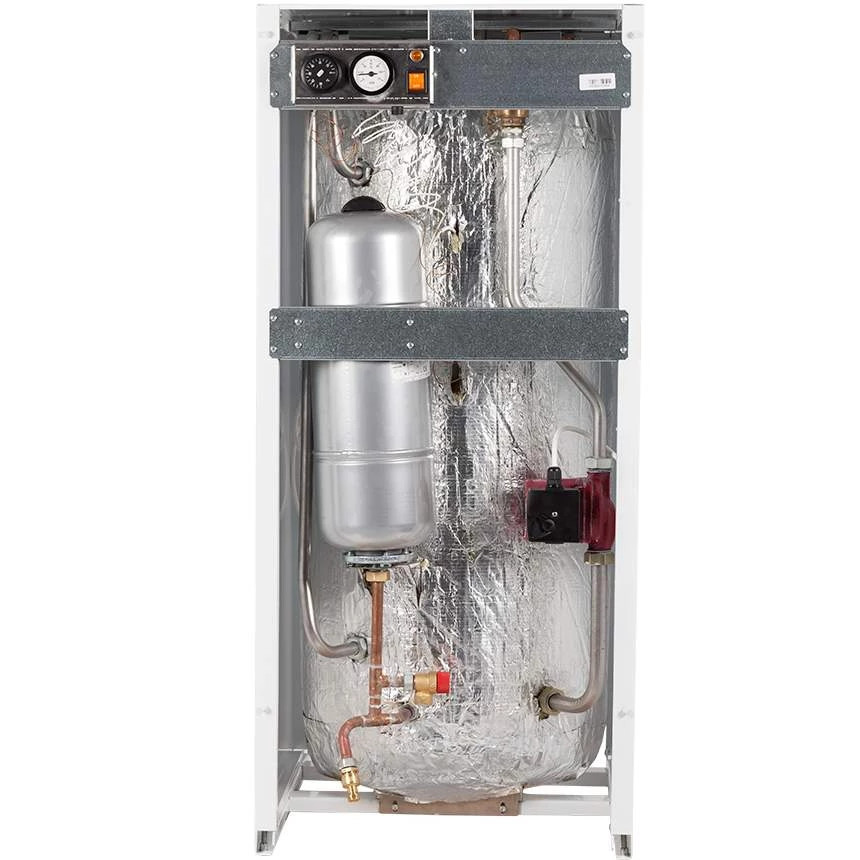

This is a compact product, which incorporates both safety elements: expansion vessel (8l), safety valves (8 bar), command and control elements: control panel consisting of a thermostat, thermometer, a circulation pump and a drain valve
Additional corrosion protection provided by the magnesium anode, which attracts the Ca and Mg ions.

Maximum value of airborne noise level	<50 dB(A)
Domestic hot water storage volume	120 litri
Maximum domestic hot water pressure	8 bar
Maximum supply pressure - recommended value	5 bar
Maximum domestic hot water inlet temperature	60°C
Consumer hot water outlet temperature (adjustable from mixing valve)	30 - 50°C
Consumer hot water outlet temperature (factory set)	≈45°C
Minimum storage temperature	5°C
Membrane expansion vessel volume	8 litri
Expansion vessel loading pressure	3,5 bar
Net weight (without water)	61 kg
Connections	40÷55°C
Cold water inlet	3/4 “
Domestic hot water outlet	3/4 “
Recirculated water outlet / inlet:	3/4 “
Dimensions (mm)	645 x 600 x 1150
Electrical specifications	230V/50Hz - 135W
