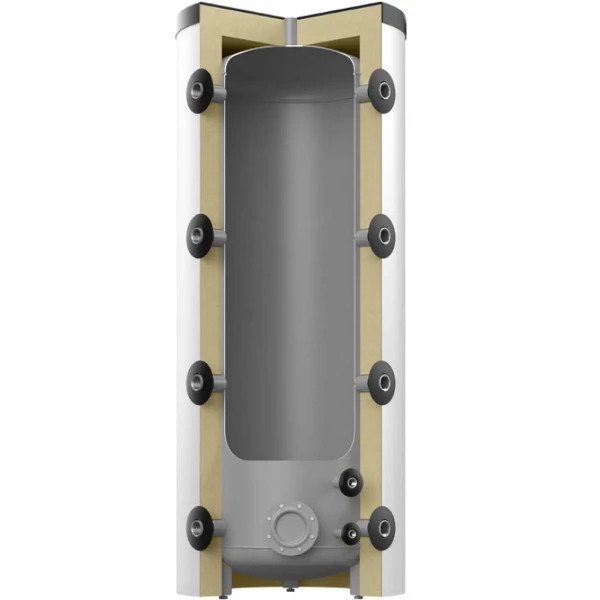

Storatherm Heat HF 1500/R_C Buffer cylinder

Reflex Storatherm Heat
Buffer tank for storing heating and cooling water. Optionally available in upright versions with/without flange or with one/two internal heat exchangers for connection of external energy sources.
The connector series for heat sources and consumers are vertical, offset through 100° configured as charging or discharging connectors. Between these connector series there also vertically arranged screw-in options for sensor sleeves, thermometers or similar (3 x Rp 3/4, 1 x Rp 1/2). Tanks with bare-tube exchanges also have flow and return connectors to the tube bundle heating surface.

Storage tank of steel S235JR+AR, inside uncoated and outside corrosion protected.

Buffer tank up to 1000 litre insulated with 100mm, buffer tank > 1000 litre with 120mm removable fleece insulation; according to DIN 4102-1 material class B2. Tanks up to 2000 litres are supplied ready-insulated. Tanks greater than 3000 litres are transported horizontally, without insulation. Insulation must be ordered separately. Tank available in energy efficiency class C.

The heat losses are measured on an externally certified test bed.

Type: HF 1500/R_C
Colour: silver
Insulation type: foil jacket
Insulation strength: 120 mm
Energy efficiency class: C
Nominal capacity: 1500 l
Number of sleeves: 9 St.
Operating temperature: 95 °C
Operating pressure: 6 bar
Connection: Rp 1 1/2"
Heat maintaining losses: 167 W
Diameter: 1240 mm
Height: 2120 mm
Tilt dimension approx.: 2178 mm
Weight: 189,00 kg
