Termet Apla 25/30 kW Condensing Boiler | Stainless Steel Exchanger
Description

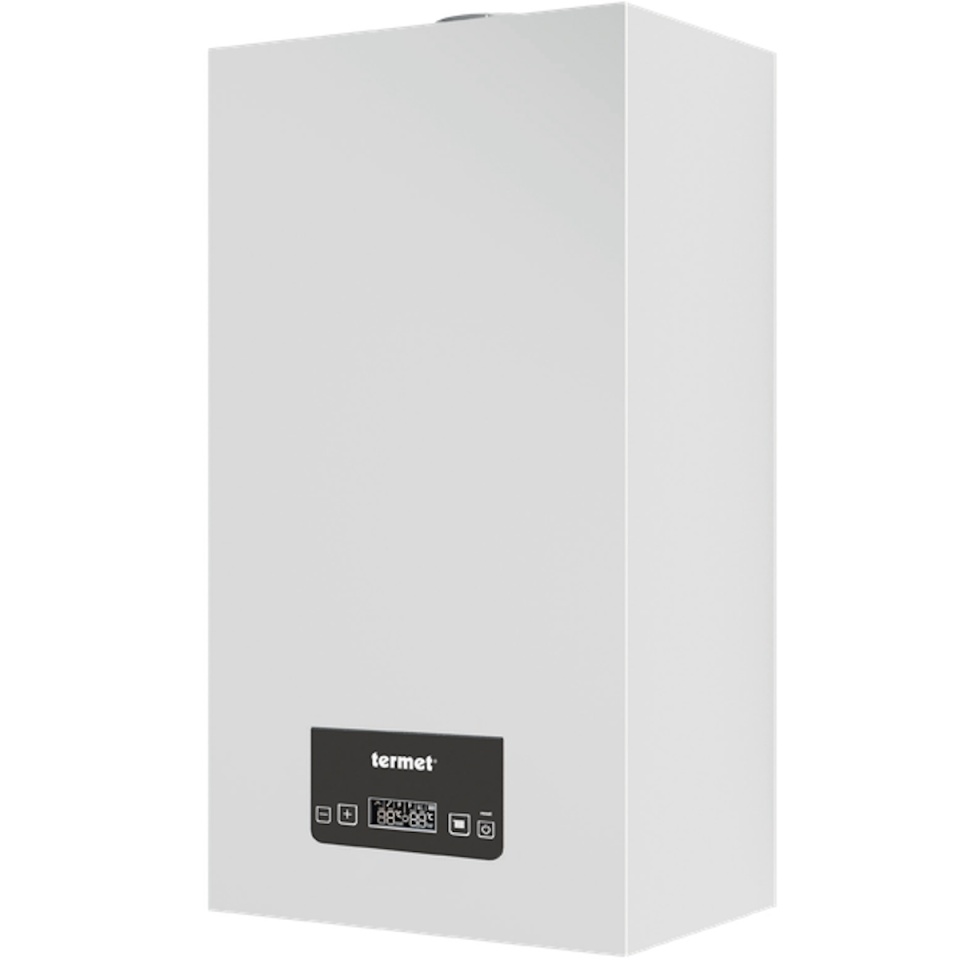

Termet Apla 25/30 kW Condensing Gas Boiler – Single-Coil Stainless Steel Heat Exchanger, Class A
The Termet Apla 25/30 is an energy-efficient and eco-friendly solution designed to ensure high thermal comfort in your home. Thanks to its advanced technology, it effectively recovers heat from exhaust gases (condensing technology), significantly reducing your heating bills. Quiet operation, a modern compact design, and intuitive controls make it the perfect choice for any modern household.
One of the boiler's main advantages is its ultra-compact size, making it ideal for installation in small, cramped spaces, kitchen cupboards, or non-standard niches. It is also an excellent option for retrofitting existing heating installations, where replacing an old heat source is often difficult due to strict space constraints.
β¨ Key Technical Advantages
-

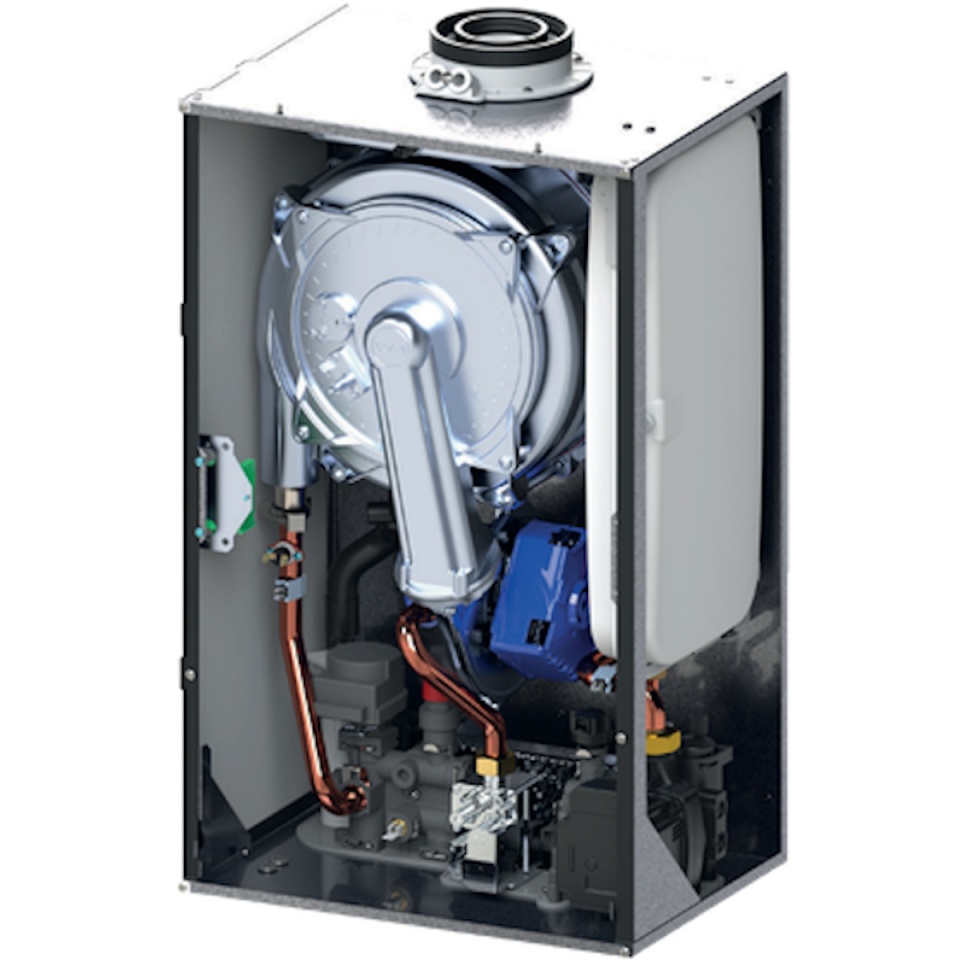

Latest Generation Stainless Steel Heat Exchanger: Features a single thick coil (monotub single-coil) that ensures optimal heat transfer fluid flow and exceptional heat exchange efficiency while minimizing limescale and clogging risks.
-
Exceptionally Wide Power Modulation Range (15% to 100%): The boiler automatically dials down its output to as low as 15% when the heating demand drops, eliminating frequent on/off cycles and drastically cutting gas consumption.
-
High Domestic Hot Water (DHW) Performance (XL Load Profile): Delivers up to 27.2 kW of utility power purely for hot water, ensuring a generous and stable flow rate of 13 liters per minute.
-
Smart Internet Control: Ready for complete room temperature management via smartphone or tablet using the optional Termet Comfort System package.
-
Eco-Friendly Cylindrical Burner: Made of high-quality stainless steel resistant to high temperatures and corrosion, achieving Class 6 NOx for exceptionally low emissions.
-
Premium Hydraulic Components: Equipped with a highly efficient circulation pump (EEI = 0.23) featuring an integrated automatic air vent and an electronically controlled variable speed fan.
-
Service-Friendly Access: The 8-liter expansion vessel is laterally positioned on the boiler, allowing quick and easy access immediately after removing the front casing.
-
Advanced Open-Therm Communication: Offers seamless connection for ambient temperature regulators using the Open-Therm protocol (e.g., the CR11011 controller) and is fully compatible with multi-zone heating modules.
π Technical Data Table
| Technical Parameters | Specifications: Termet Apla 25/30 (COMBI) |
| Central Heating (CH) Circuit | |
| Seasonal space heating energy efficiency class | A |
| Rated heat output | 23.3 kW |
| Seasonal space heating energy efficiency (etas) | 94 % |
| Annual energy consumption (QHE) | 48.1 GJ |
| Useful heat output (at 50/30oC temperature) | 3.9 – 25.7 kW |
| Useful efficiency at part load and 30oC}$ return water temp | 107 % |
| Max. system water pressure | 3 bar |
| Expansion vessel volume | 8 liters |
| Domestic Hot Water (DHW) Circuit | |
| Water heating energy efficiency class | A |
| Declared load profile | XL |
| Water heating energy efficiency (etawh) | 80 % |
| Useful heat output (at 80/60oC temperature) | 3.5 – 27.2 kW |
| Domestic hot water flow rate at Delta T = 30oC | 13 l/min |
| Annual fuel consumption (AFC) | 19 GJ |
| General & Dimensional Data | |
| Sound power level (Lwa) | 49 dB |
| Nitrogen oxides emissions (NOx) | 29 mg/kWh |
| Flue gas connection (Chimney connection) | Concentric 80/125 mm, 60/100 mm or dual simple 80/80 mm |
| Power supply type and voltage | ~ 230 +/-10% / 50 Hz |
| Unit dimensions (Height x Width x Depth) | 650 x 400 x 303 mm |
| Net weight | 31.0 kg |
π οΈ Specialist Installation Tip:
π‘ Termix Expert Advice: To achieve the maximum 107% condensing efficiency guaranteed by the Termet Apla 25/30, it is highly recommended to keep your return system water temperature below 50oC (ideal for underfloor heating or oversized radiators). To safeguard the high-efficiency electronic pump and single-coil exchanger over the long term, installing a magnetic dirt separator filter on the return pipe is mandatory.
π Upgrade your heating system with next-generation technology! Don't let space limitations dictate your comfort. The ultra-compact dimensions make the Termet Apla 25/30 your best choice for a hassle-free boiler replacement. Buy it now on Termix.ro and secure reliable warmth today! π
