Test pump RP 50-S

Description

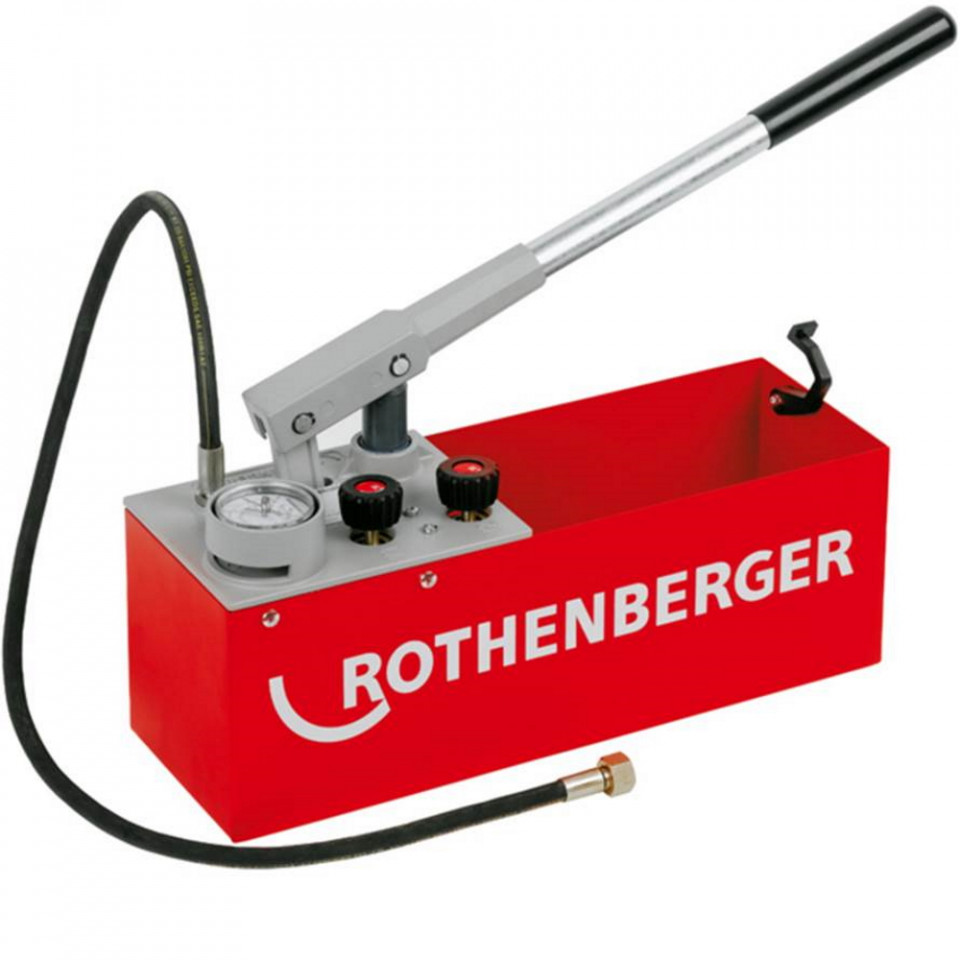

Test pump Rothenberger RP 50-S

Thanks to the robust DURAMANT coating, the RP 50 test pump offers you a durable solution for pressure tests up to 60 bar.

In addition to water, oil and glycol can also be used for testing.

A drag indicator displays the pressure so that a pressure drop in the system can be easily determined.

Reliable and precise measurement results: the dual valve system (twin valve) allows self-testing of the pump, as well as a precise fine adjustment of the pressure.

Especially accurate measurement if necessary: finely scaled (scaling 0.1 bar) pressure gauge optionally available

Testing hose with steel mesh prevents measuring errors caused by expansion of the hose during operation Type 50-S: Weather and cold-resistant steel container with DURAMANT coating Type 50-S stainless steel: high-quality corrosion-resistant stainless steel container.

Technical data

Working area Temperature (min-max) 0-50 °C
Test area (min-max) 0-60 bar
Test medium Glycol/Drinking water mixture, Drinking water, Tyfocor
Power pump (min-max) 0-45 ml/Hub
Content with unit of measure 12 l

General information

Net weight with unit of measure 7,215 kg
Gross weight with unit of measure 7,845 kg
Packaging Length with unit of measurement 53,000 cm
Packaging Width with unit of measurement 18,500 cm
Shipping weight with unit of measure 7,845 kg
Packaging height with unit of measurement 30,500 cm
