testo 340 S2 Flue gas analyzer
RON 16,327.11
(VAT Included)
RON 13,493.48
(VAT excluded)
Delivery costs are not included
How can we help you?
Description

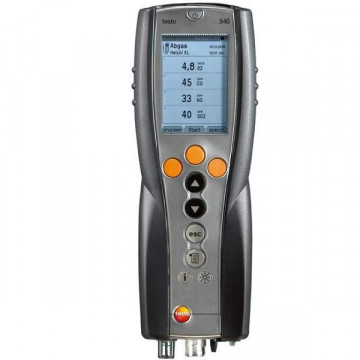

testo 340 S2 Flue gas analyzer for use in industry
-
Can measure CO, COlow, NO, NOlow, NO2 or SO2
-
Extended measuring range for use in environments with high gas concentrations
-
Precalibrated gas sensors for quick and easy sensor change
-
Integrated pressure difference and air flow measurements for mass flow calculations

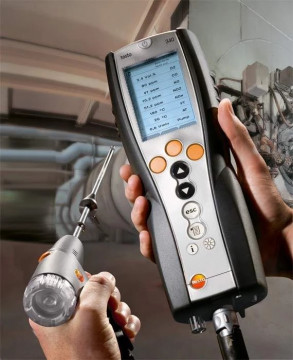

Emission control in industry: the testo 340 flue gas analyzer gives you professional technology, easy handling and practical execution in one instrument. The high-performance testo 340 flue gas analyzer is fitted with an O2 sensor and can be equipped with up to 3 additional sensors.
Product Description
Delivery Scope
testo 340 flue gas analyzer, calibration protocol, shoulder strap, O2 sensor and integrated flow and pressure difference measurements.
PLEASE NOTE: Your testo 340 must be fitted with a second gas sensor for it to work. Up to three additional sensors can be fitted.
Technical Data
| Differential Pressure - Piezoresistive | |
|---|---|
|
Measuring range |
-200 to 200 hPa |
|
Accuracy |
±0.5 hPa (-49.9 to 49.9 hPa) ±1.5 % of mv (Remaining Range) |
|
Resolution |
0.1 hPa |
| Absolute Pressure | |
|---|---|
|
Measuring range |
+600 to +1150 hPa |
|
Accuracy |
±10 hPa |
|
Resolution |
1 hPa |
| Flue gas O₂ | |
|---|---|
|
Measuring range |
0 to 25 Vol.% |
|
Accuracy |
±0.2 Vol.% |
|
Resolution |
0.01 Vol.% |
|
Reaction time t₉₀ |
< 20 s |
| Flue gas CO (with H₂-compensation) | |
|---|---|
|
Measuring range |
0 to 10000 ppm |
|
Accuracy |
±10 ppm or ±10 % of mv (0 to 200 ppm) ±20 ppm or ±5 % of mv (201 to 2000 ppm) ±10 % of mv (2001 to 10000 ppm) |
|
Resolution |
1 ppm |
|
Reaction time t₉₀ |
< 40 s |
| Flue gas COlow (with H₂-compensation) | |
|---|---|
|
Measuring range |
0 to 500 ppm |
|
Accuracy |
±2 ppm (0 to 39.9 ppm) ±5 % of mv (Remaining Range) data corresponds to 20°C ambient temperature. Additional temperature coefficient 0.25% of reading/K. |
|
Resolution |
0.1 ppm |
|
Reaction time t₉₀ |
< 40 s |
| Flue gas NO | |
|---|---|
|
Measuring range |
0 to 4000 ppm |
|
Accuracy |
±5 ppm (0 to 99 ppm) ±5 % of mv (100 to 1999 ppm) ±10 % of mv (2000 to 4000 ppm) |
|
Resolution |
1 ppm |
|
Reaction time t₉₀ |
< 30 s |
| Flue gas Nolow | |
|---|---|
|
Measuring range |
0 to 300 ppm |
|
Accuracy |
±2 ppm (0 to 39.9 ppm) ±5 % of mv (Remaining Range) |
|
Resolution |
0.1 ppm |
|
Reaction time t₉₀ |
< 30 s |
| Flue gas NO₂ | |
|---|---|
|
Measuring range |
0 to 500 ppm |
|
Accuracy |
±10 ppm (0 to 199 ppm) ±5 % of mv (Remaining Range) |
|
Resolution |
0.1 ppm |
|
Reaction time t₉₀ |
< 40 s |
To avoid absorption, a maximum measurement duration of 2 hours should not be exceeded.
| Flue gas SO₂ | |
|---|---|
|
Measuring range |
0 to 5000 ppm |
|
Accuracy |
±10 ppm (0 to 99 ppm) ±10 % of mv (Remaining Range) |
|
Resolution |
1 ppm |
|
Reaction time t₉₀ |
< 40 s |
To avoid absorption, a maximum measurement duration of 2 hours should not be exceeded.
| Differential Pressure flue gas Draught - Piezoresistive | |
|---|---|
|
Measuring range |
-40 to +40 hPa |
|
Accuracy |
±0.03 hPa (-2.99 to +2.99 hPa) ±1.5 % of mv (Remaining Range) |
|
Resolution |
0.01 hPa |
| Temperature | |
|---|---|
|
Measuring range |
-40 to +1200 °C |
|
Accuracy |
±0.5 °C (0 to +99 °C) ±0.5 % of mv (Remaining Range) |
|
Resolution |
0.1 °C |
| Flue gas degree of effectivity, Eta (calculated) | |
|---|---|
|
Measuring range |
0 to 120 % |
|
Resolution |
0.1 % |
| Flue gas loss (calculated) | |
|---|---|
|
Measuring range |
0 to 99.9 % |
|
Resolution |
0.1 % |
| Flue gas dewpoint (calculated) | |
|---|---|
|
Measuring range |
0 to 99.9 °Ctd |
|
Resolution |
0.1 °Ctd |
| Flue gas CO₂ calculation (calculated from O₂) | |
|---|---|
|
Measuring range |
0 to CO₂ max |
|
Accuracy |
±0.2 Vol.% |
|
Resolution |
0.1 Vol.% |
|
Reaction time t₉₀ |
< 40 s |
| General technical data | |
|---|---|
|
Weight |
960 g |
|
Dimensions |
283 x 103 x 65 mm |
|
Operating temperature |
-5 to +50 °C |
|
Product-/housing material |
TPE PC |
|
Protection class |
IP40 |
|
Connectable probes |
1 x flue gas probe; 1 x temperature probe; 1 x differential pressure |
|
Product colour |
Black |
|
Battery life |
> 6h (Pumpe an, Displaybeleuchtung aus, bei 20°C) |
|
Display type |
graphic Display |
|
Display size |
160 x 240 pixels |
|
Display function |
Graphic display |
|
Power supply |
Battery block 3.7 V / 2.4 Ah, Mains unit 6.3 V / 2 A |
|
User defined fuels |
10 user-defined fuels incl. test gas as fuel |
|
Pump flow |
0.6 l/min (regulated) |
|
Hose length |
max. 7.8 m (corresponds to two probe hose extensions) |
|
Max. pos. press./flue gas |
50 mbar |
|
Max. neg. press./flue gas |
-200 mbar |
|
Maximum memory |
100 folders |
|
Storage per folder |
Max. 10 sites |
|
Storage per site |
Max. 200 logs |
|
Miscellaneous |
The max. number of logs is determined by the number of folders or sites |
|
Interface |
Bluetooth®; USB; IR/IRDA interface; gas outlet; Mains connection; probe input/ probe inputs; Differential Pressure |
|
Storage temperature |
-20 to +50 °C |
