Description

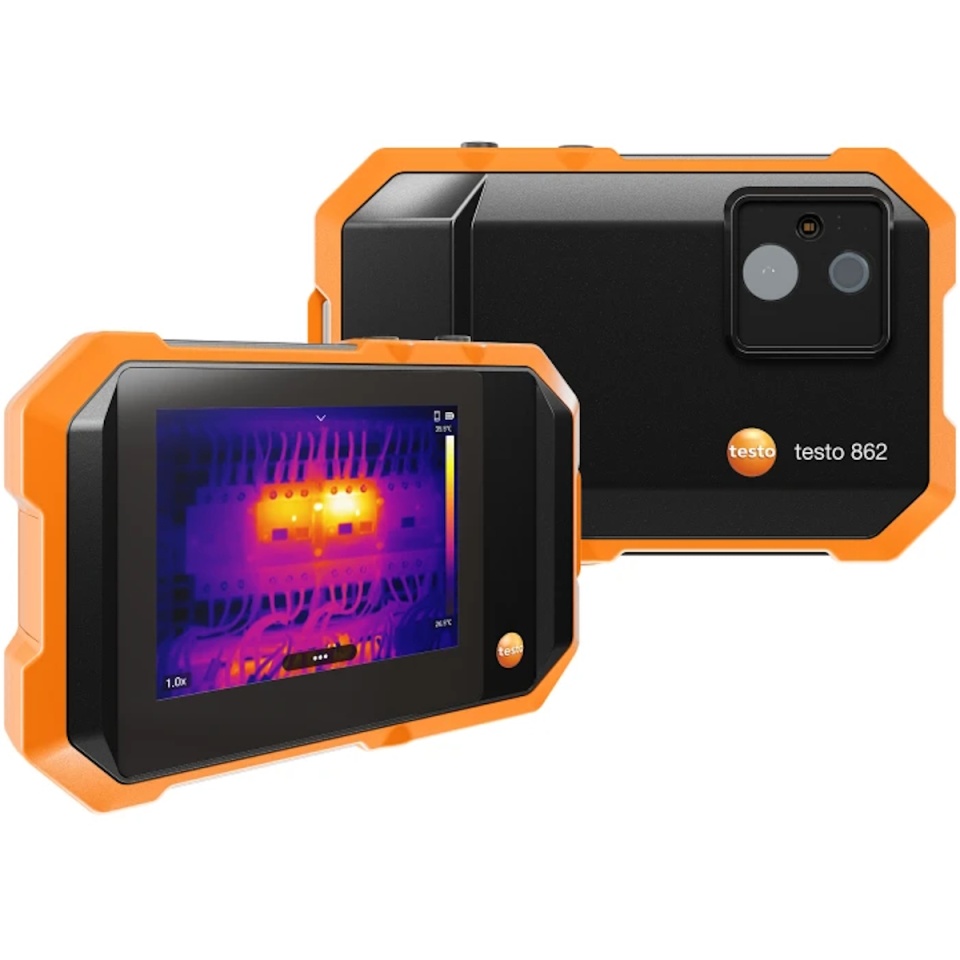

Testo 862-2 Thermal Imager (256 x 192 pixels)

Name: Testo 862-2 Thermal Imager (256x192 px) | Price Termix.ro
Brand: Testo
SKU: 05608622
Price: 4008.73 RON
Availability: InStock

The Testo 862-2 is the ideal compact and professional thermal imaging camera for HVAC technicians, electricians, and energy auditors. Designed in an ergonomic pocket-sized format, it delivers high-precision thermal images, allowing quick identification of thermal bridges, heat losses, and faults in electrical installations and heating systems.

Why Choose the Testo 862-2 Thermal Camera from Termix.ro?

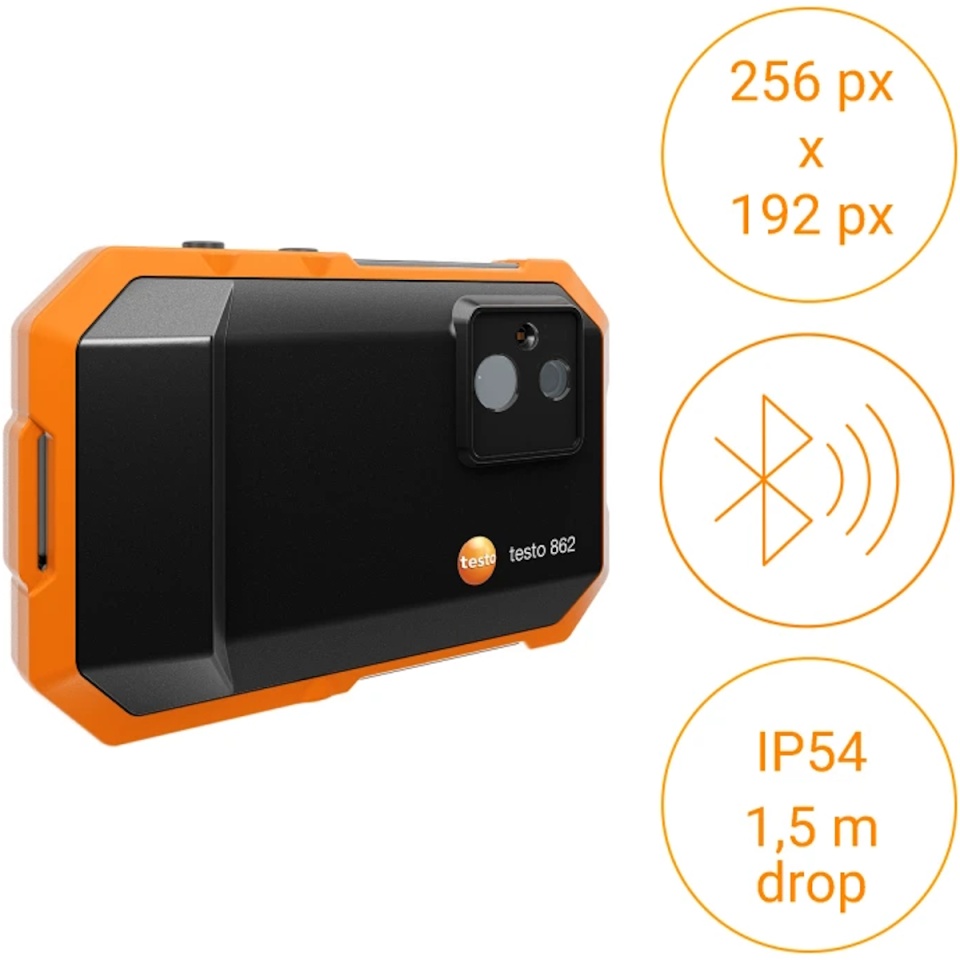

High-Resolution Imaging (256 x 192 px): Delivers crisp thermal details for accurate diagnostic work in all operating conditions.
High Thermal Sensitivity (NETD < 50 mK): Detects minute temperature differences, crucial for detecting hidden moisture and leaks.
Rugged IP54 Protection: Dust- and splash-resistant housing tested to withstand drops from up to 1.5 meters.

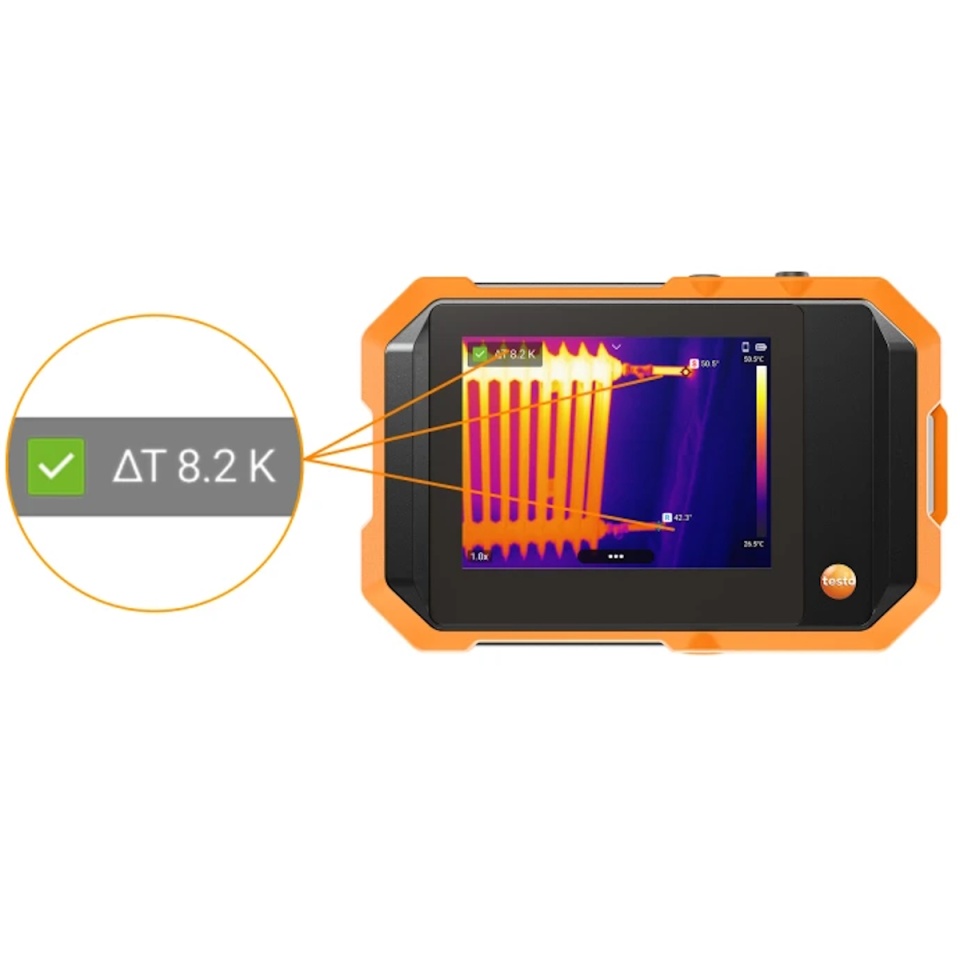

Built-in DeltaHeat Function: Automatically calculates temperature differentials across radiators and HVAC loops.
Smart Connectivity: Fast data transfer and seamless integration with Testo mobile apps and smart probes.

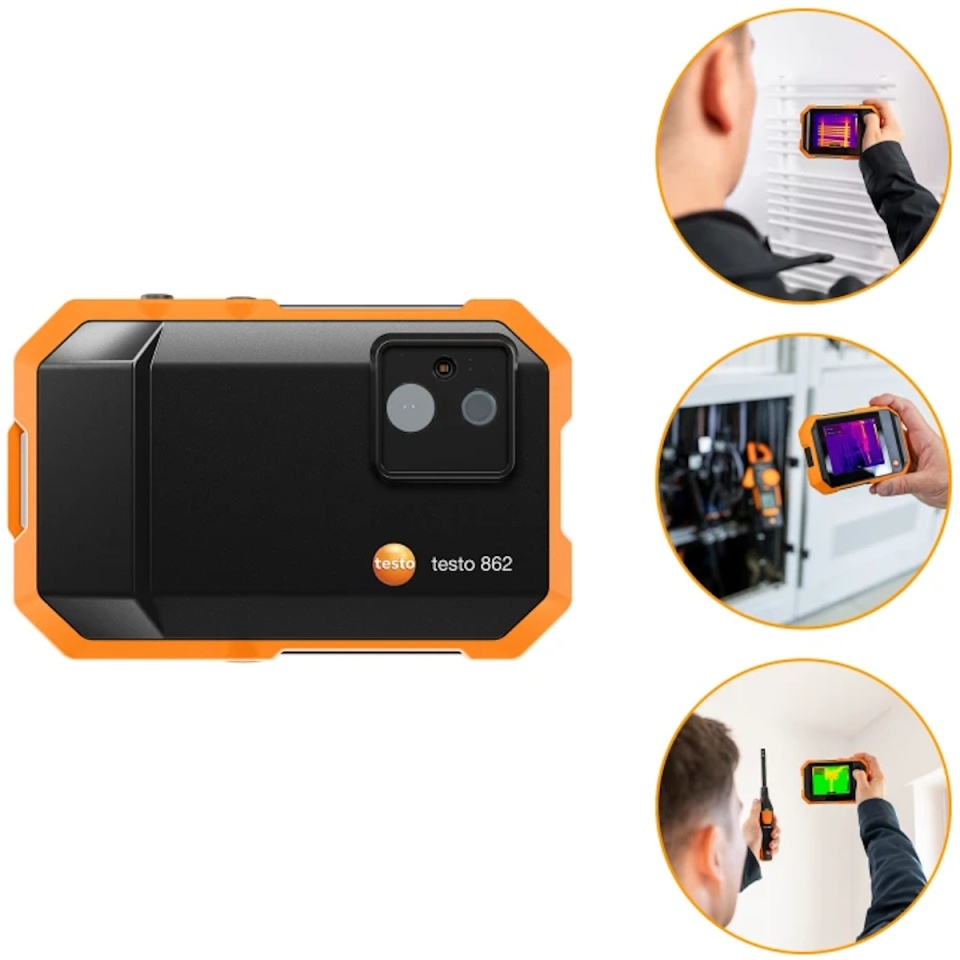

Primary Applications

Thanks to its compact design and intuitive interface, the Testo 862-2 is the perfect tool for:

Inspecting electrical cabinets and preventing terminal overheating.
Underfloor heating leak detection and circuit verification.
Identifying insulation defects, air leaks, and energy loss in buildings.
Preventive maintenance on industrial machinery and HVAC equipment.

Specifications

Category	Technical Parameter	Value / Specification
General	Protection class	IP54 (dust and splash water protection)
	Dimensions	135 x 88 x 25 mm
	Weight	215 g
	Tripod mount	1/4” UNC thread
Infrared Image (IR)	IR resolution	256 x 192 pixels
	Field of view (FOV)	56° x 42°
	Focus	Fixed focus
	Minimum focus distance	0.25 m
	Spatial resolution (IFOV)	3.75 mrad
	Image refresh rate	25 Hz
	Thermal sensitivity (NETD)	< 50 mK at +25°C
	Spectral range	8 to 14 µm
Visual Image & Display	Visual camera resolution	2 MP
	Min. focus distance (visual)	0.2 m
	Color palettes	Iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT, humidity palette
	Display options	IR / Visual / Fusion / Picture-in-Picture (PiP) / Humidity mode
	Digital zoom	Yes (up to 6.0x)
	Video recording	Non-radiometric on-device (.AVI)
	Full screen mode	Yes
Measurement	Temperature measuring range	-10 °C to +550 °C
	Accuracy	±2 °C / ±2% of m.v. (at +21 °C to +25 °C ambient)
	Emissivity adjustment	0.01 to 1

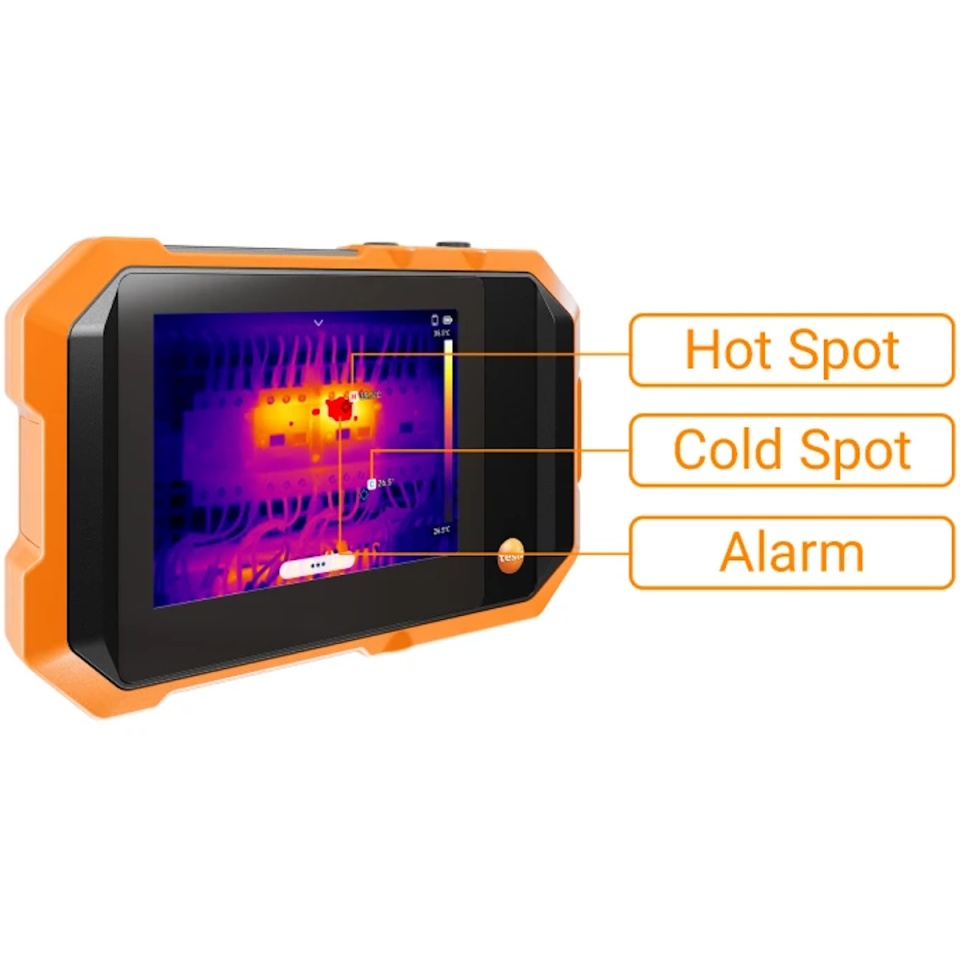

Analysis Functions	On-screen analysis	Hot spot, cold spot, DeltaHeat, Delta T, 5 adjustable spots, 3 regions of interest (ROI)

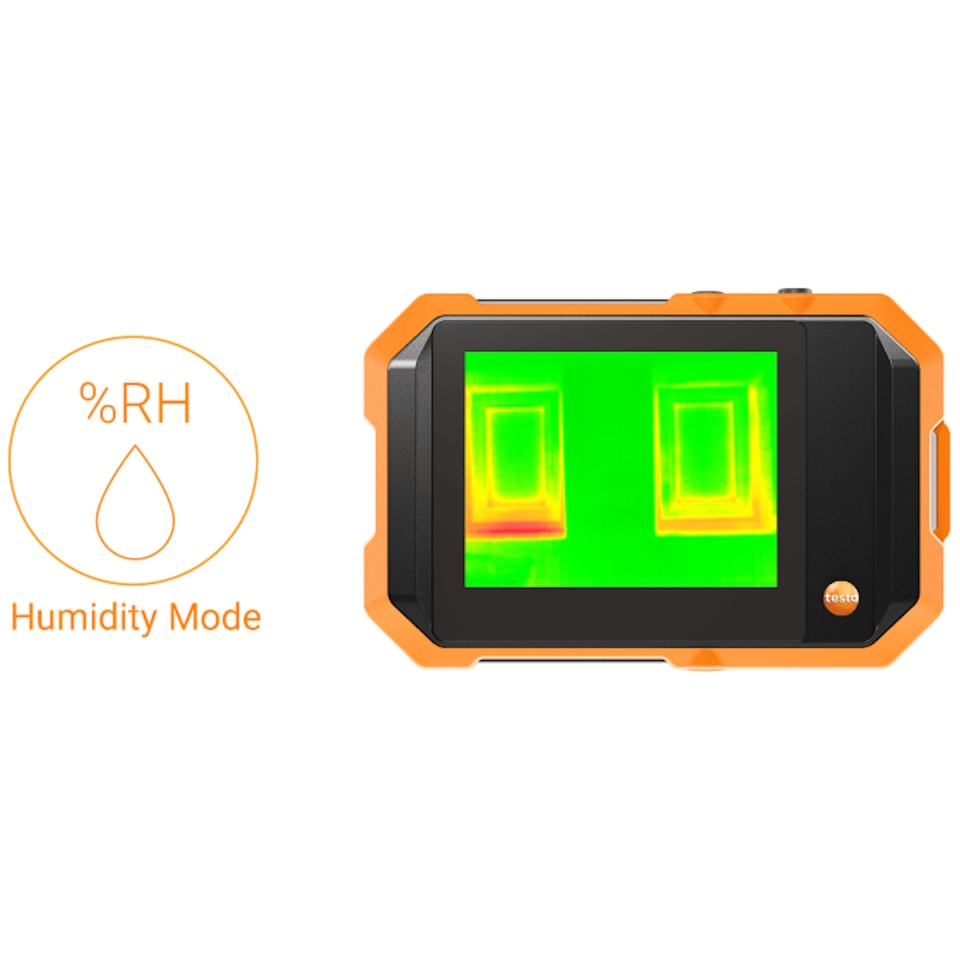

	Humidity mode (manual)	Yes
	Humidity measurement (Smart Probe)	Auto transfer from optional testo 605i thermohygrometer via Bluetooth
	Electrical measurement (Clamp Meter)	Auto transfer from optional testo 770-3 clamp meter via Bluetooth
	Electrical mode (manual)	Yes
	Application functions	DeltaHeat, Humidity mode
Connectivity & Storage	WLAN connectivity	Communication with Testo Smart App (IEEE 802.11b/g/n)
	Bluetooth	Peer-to-peer fast connection
	Image format	.bmt, .jpg
	Storage capacity	12 GB internal available memory
Power & Battery	Battery type	Integrated Li-ion rechargeable battery
	Charging method	USB-C interface
	Charging time	Approx. 170 min (15-min charge gives 25-min runtime)
	Battery life	Approx. 3 hours at +25 °C
Environmental & Robustness	Operating temperature	-10 °C to +50 °C
	Storage temperature	-20 °C to +70 °C
	Operating humidity	5 to 95 %RH (non-condensing)
	Drop resistance	1.5 meters
	Shock resistance	IEC 60068-2-27 with 30 g
	Vibration resistance	ISO2247:2000-03
PC Software	System requirements (testo IRSoft)	Windows® 11, Windows® 10
