Thermal energy Meter Zelsius C5-ISF qp 0.6 DN15
Description

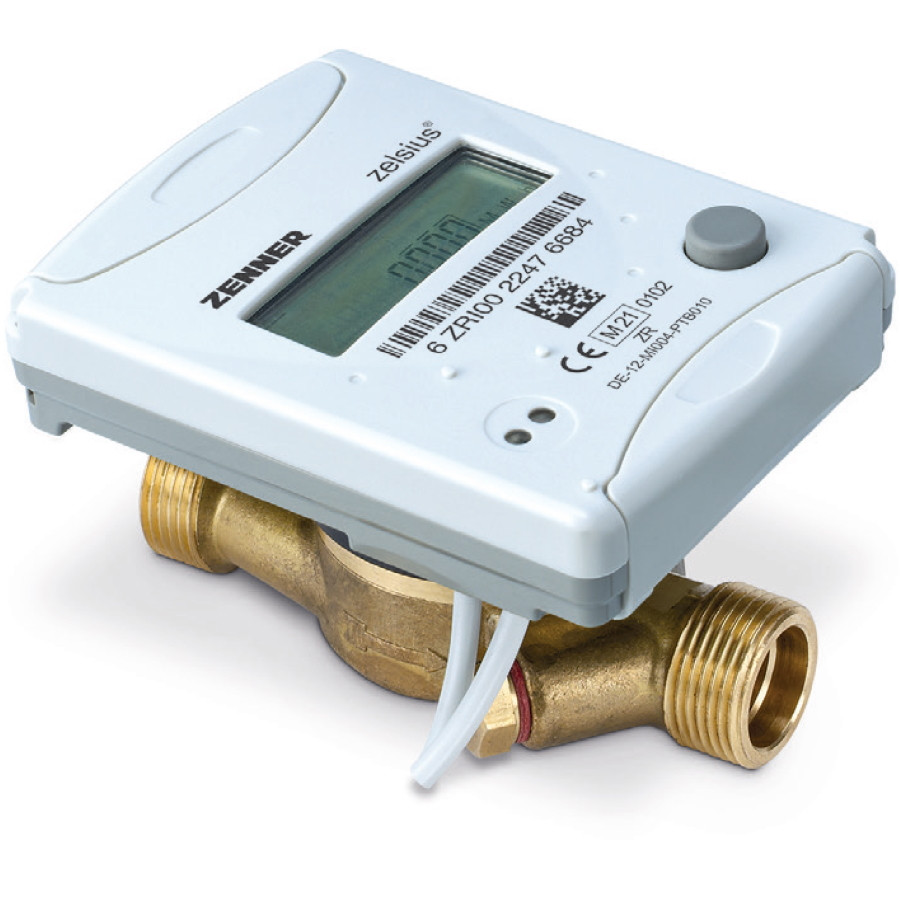

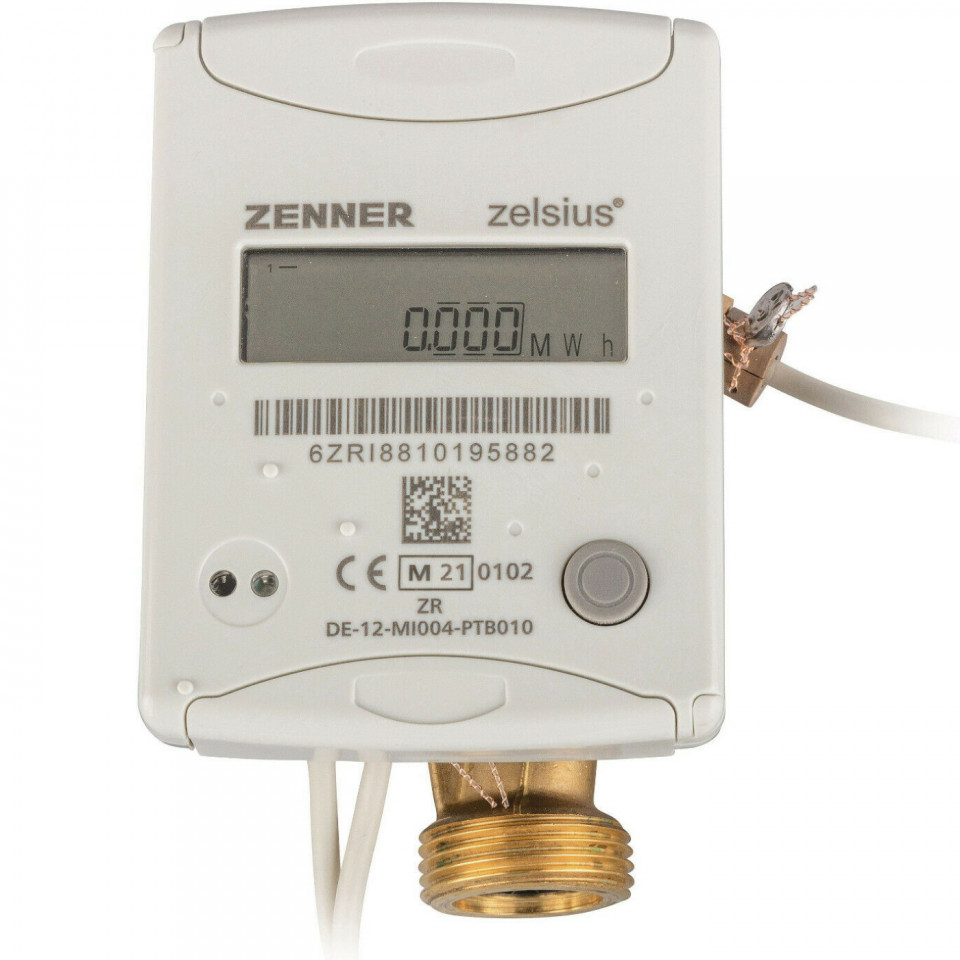

Thermal energy Meter Zenner Zelsius C5-ISF qp 0.6 DN15
Thermal energy measurement instrument with ultrasonic flow sensor (IUF) for heating and/or cooling systems
Optional interfaces: M-Bus, wireless M-Bus, LoRa® and 3 pulse inputs or outputs.
The thermal energy meter (also called heat or cold meter) zelsius® C5-IUF operates with an innovative ultrasonic technology, specially developed for a
broad scope of application from submetering to domestic and district heating and cooling.
Specially for district heating transfer and compact apartment stations with fast temperature changes, zelsius® C5-IUF is also available as a "fast response meter" in accordance with DIN EN 1434-1.
This wear-free ultrasonic technology is stable in the long run, insensitive to dirt and measures reliably, even with very small flow volumes. The ultrasonic flow sensors can be operated permanently up to a heat medium temperature of 130 °C and are optimally suited for application in district heat supply.
Because of the high overload capacity and the wearfree measurement technology they can also be used to measure energy in hot water supply systems in accordance with § 9 (2) of the German heating costs ordinance.
A single button is used to call up all the important device and consumption data, such as reference date values, maximum values or the stored monthly values over the entire lifetime of the meter.
Its diverse, optionally selectable communication interfaces mean that the zelsius® C5 guarantees efficiency and precision in the recording of consumption data, whether by M-Bus or radio.
Performance characteristics at a glance
■ MID type examination certificate DE-12-MI004-PTB010 in the metrological class 2
■ Domestic type examination certificate DE-20-M-PTB-0046 for cooling energy metering in metrological class 2
■ OMS certification for BSI-compliant smart meter gateway connection
■ Flow sensor with protection class IP 68
■ No straight inlet or outlet sections required
■ Permanent temperature load depending on the model up to 105 °C or 130 °C
■ Any installation position even "head down".
Technical data calculator
Temperature range °C 0...105 / 0...150
Temperature difference range K 3... 80 / 3...130
Display range LCD 8-digit + additional character
Ambient temperature during operation °C 5...55
Storage temperature °C -20...+65
Temperature resolution °C 0.01
Measuring intervals 1 s Flowrate: 2/ 4
Temperatures: 4/ 8/ 16/ 32
Unit to read the heat consumption
Standard: MWh
Optional: kWh, GJ
Data storage 1 x daily
