Description

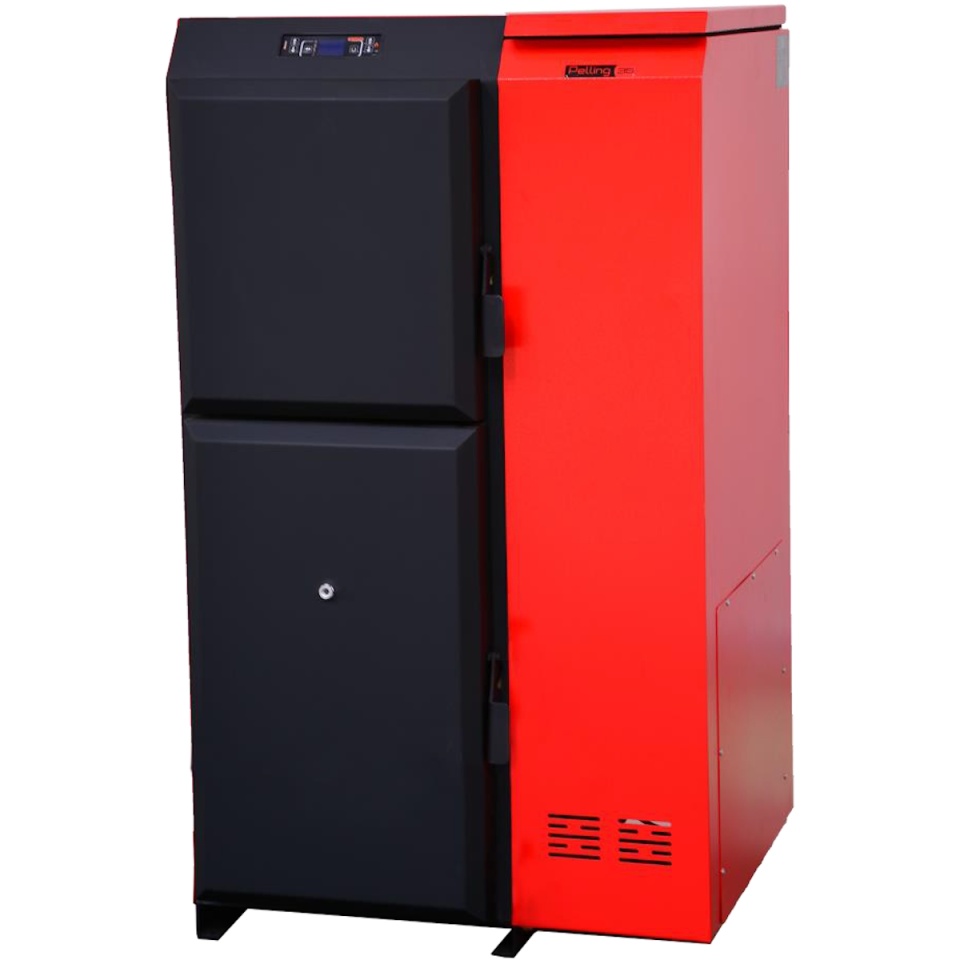

Thermoflux Pelling 50 kW Pellet Boiler (Pelling Maxi)

The Thermoflux Pelling 50 kW (also known as Pelling Maxi) is a compact, high-efficiency Class 5 pellet boiler engineered for residential heating in large homes, multi-family residences, or small commercial spaces up to 500 m². Featuring a spacious 185 kg max-capacity pellet hopper, 5-stage automatic power modulation, and superior fuel economy (>91% efficiency), it offers maximum thermal comfort with low maintenance.

Key Features & Benefits

Class 5 Eco Standard Compliance (EN 303-5)

Engineered to satisfy strict European Class 5 emission standards, guaranteeing exceptionally low flue gas emissions and high energy yield from every kilogram of wood pellets.

Dual-Fuel Capability (Pellets & Emergency Firewood)

Primarily designed for automated wood pellet feeding, the Pelling 50 can also be adapted to burn manual firewood by inserting an optional grate set into the combustion chamber.

Flexible Silo & Smart Control

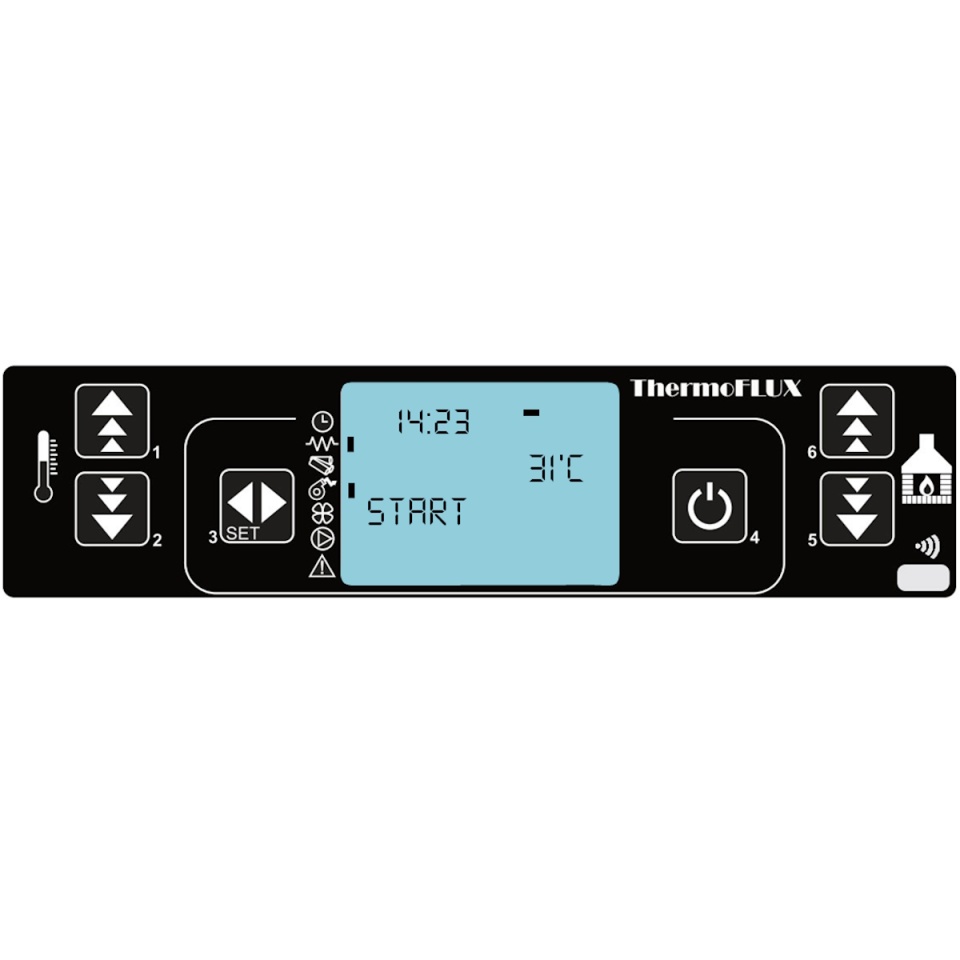

Equipped with an expandable pellet hopper (up to 185 kg) and an automated control system with 5-stage modulation, standby functionality, and optional Wi-Fi room thermostat support.

Technical Specifications – Thermoflux Pelling 50 kW

Parameter / Specification	Technical Value
Heating Output Range	16.5 – 50 kW
Boiler Water Capacity	120 Liters
Pellet Silo Capacity (Std. / Max.)	110 / 185 kg
Pellet Consumption (Min / Max)	3.5 – 11.1 kg/h
Efficiency Standard	Class 5 (EN 303-5)
Total Weight	436 kg

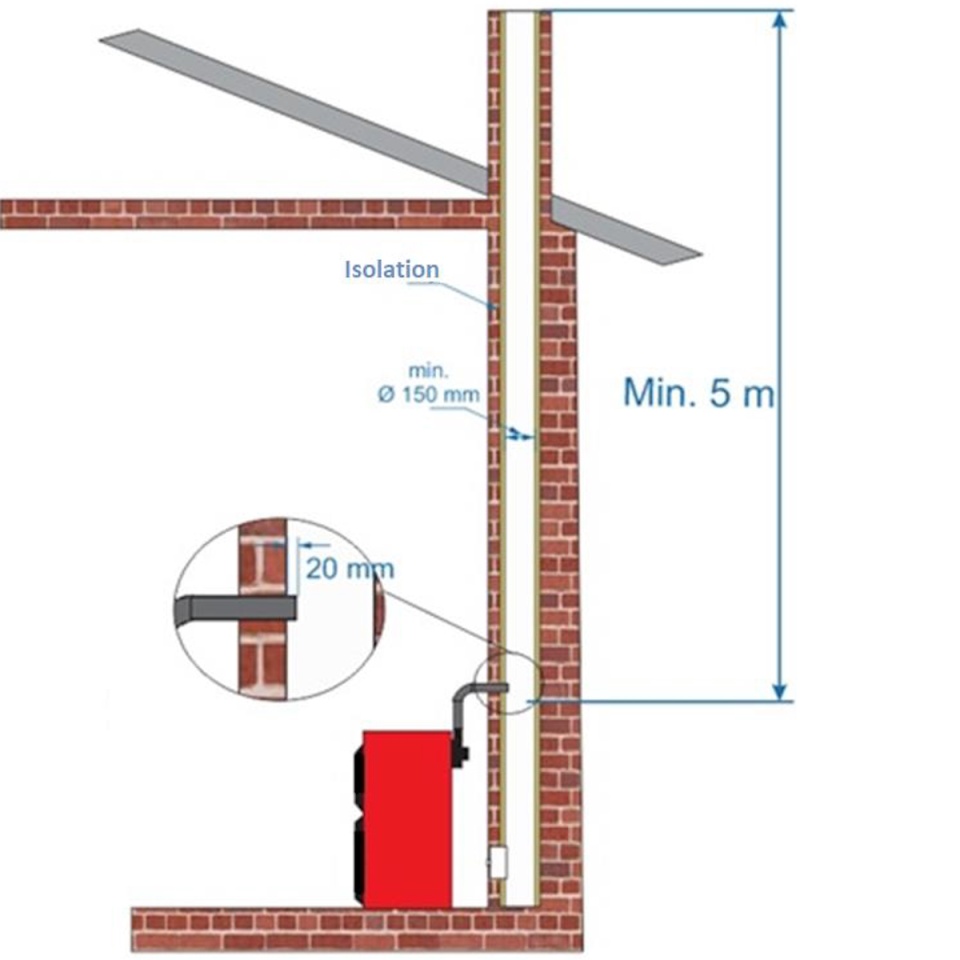

Flue Pipe Diameter	120 mm (Top exit)
Inlet / Outlet Connection	5/4"
Electrical Power Consumption (Nominal / Max)	190 W / 450 W
Cargo Door Opening (H x W)	350 x 375 mm
