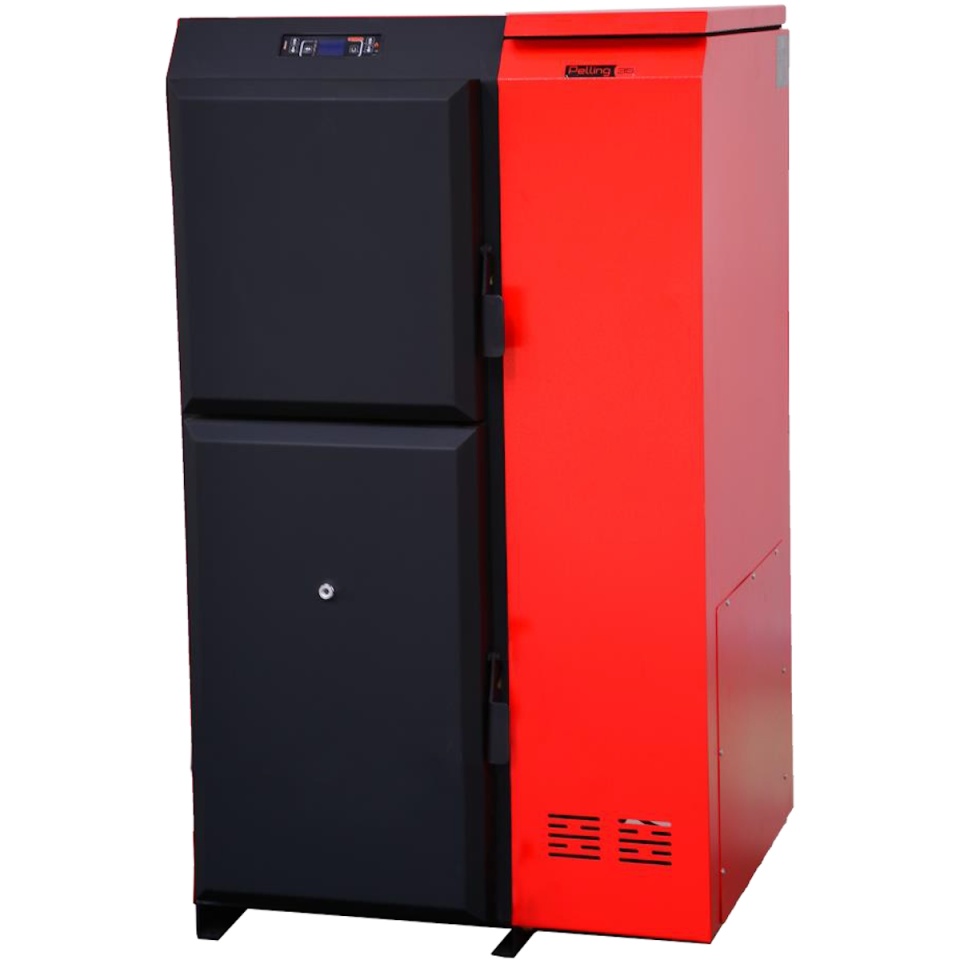

Thermoflux Pelling 75 kW Pellet Boiler

The Thermoflux Pelling 75 kW is a heavy-duty, Class 5-certified pellet boiler designed to deliver reliable central heating for large homes, commercial units, hotels, and agricultural facilities up to 800 m². Featuring a 270 kg pellet silo, 5-stage automatic modulation, and over 91% thermal efficiency, it ensures lower operational costs and hassle-free performance.

Key Features & Engineering Benefits

Class 5 Eco Standard Certification (EN 303-5)

Engineered to strictly comply with European Class 5 emission standards, ensuring reduced fuel consumption, low flue emissions, and maximum heat output.

High-Capacity 270 kg Integrated Silo

Equipped with a spacious 270 kg fuel container designed for extended continuous operation, minimizing daily refills during peak winter conditions.

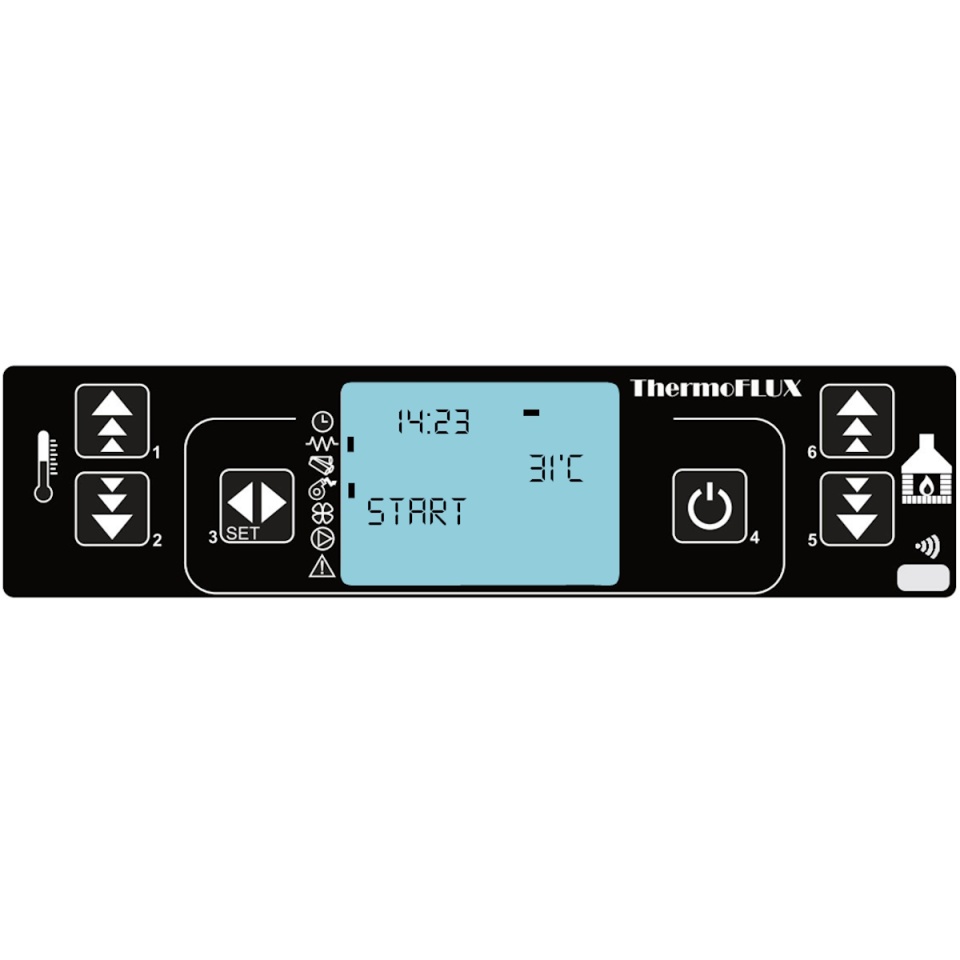

Intelligent 5-Stage Power Modulation

The automatic control unit self-regulates burner output across 5 distinct levels according to actual thermal demand, switching to standby mode once the desired target temperature is reached.

Technical Specifications – Thermoflux Pelling 75 kW

Parameter / Specification	Technical Value
Heating Output Range	25 – 75 kW
Boiler Water Capacity	154 Liters
Pellet Silo Capacity	270 kg
Pellet Consumption (Min / Max)	5.2 – 16.6 kg/h
Efficiency Standard	Class 5 (EN 303-5)
Total Weight	546 kg

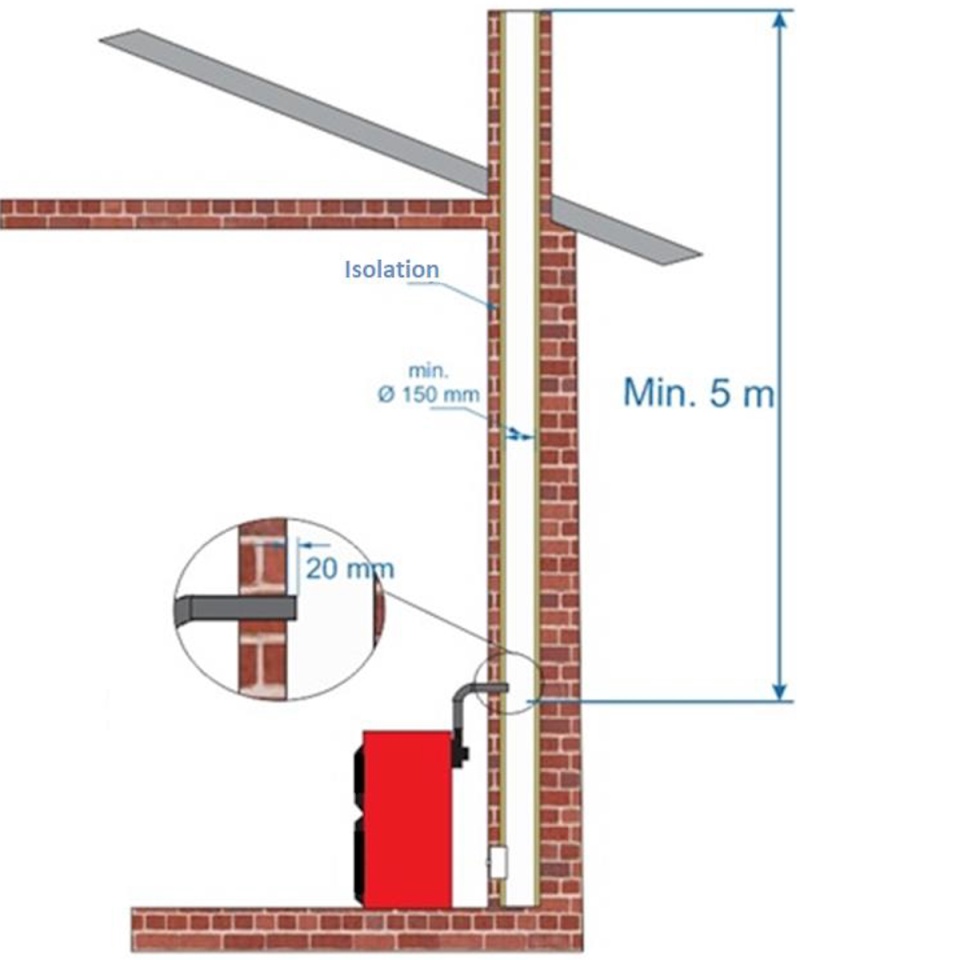

Flue Pipe Diameter	150 mm (Top outlet)
Inlet / Outlet Connection	6/4"
Electrical Power Consumption (Nominal / Max)	190 W / 450 W
Cargo Door Opening (H x W)	380 x 440 mm
