Thermoregulator Sensys

Description

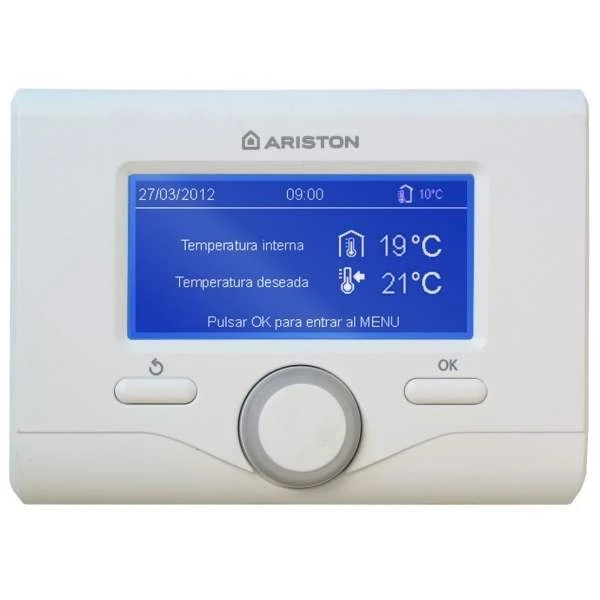

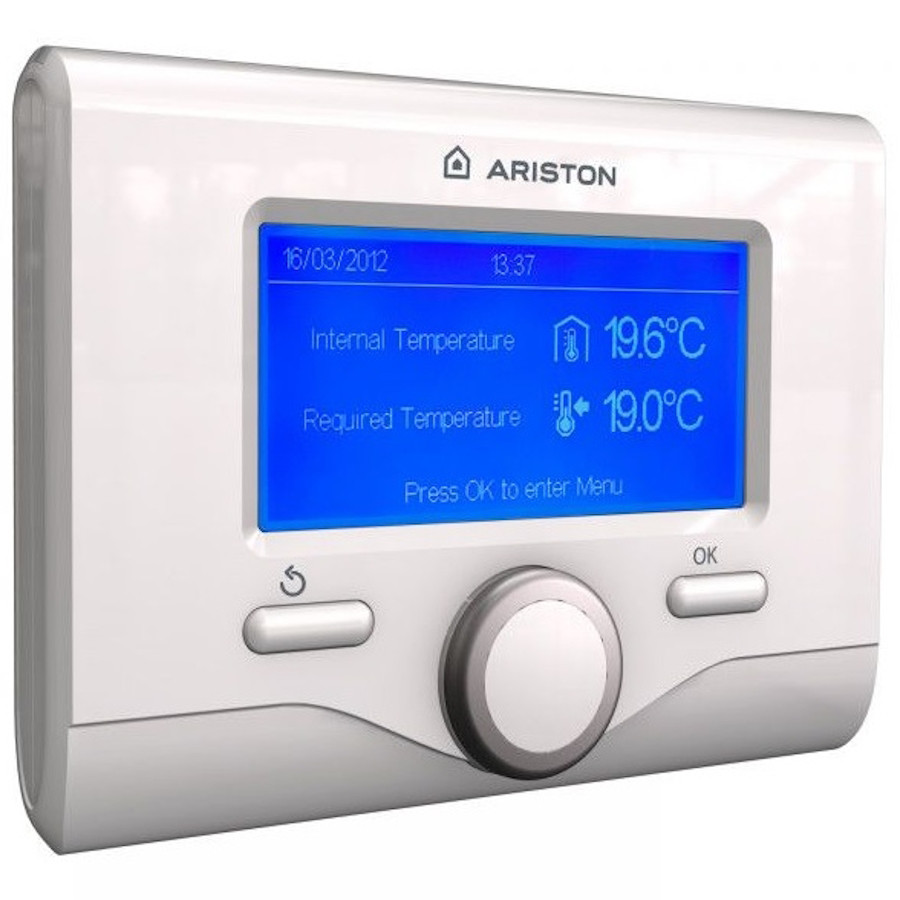

The new Ariston Sensys thermoregulator for system management

allows you to easily check the proper operation of the installation.

The large dot matrix display allows you to: check the gas-fired boiler, the solar heating system and the area management modules; customize the home screen; schedule heating and domestic hot water preparation time; view energy reports (stored solar energy kWh, active sources, reduction of CO2 emissions and possible number of showers)
Intuitive use
Large, illuminated display
Complete control over all system components through the new Bridgenet® Bus communication protocol
Scheduling heating and domestic hot water preparation
Display of stored solar energy (kWh)
Display of CO2 reduction due to renewable sources
Modulating thermoregulation
Adjusting the room temperature at night and during the day
Auto function
Italian design.
Power supply: BUS BridgeNet ®; Electrical absorption max. <0.5 W

Operating temperature -10 .. 60 ° C; Storage temperature -20 .. 70 ° C

Bus cable length and section (NOTE: WHEN CONNECTING BETWEEN THE ENVIRONMENTAL AND CONTROL UNIT SENSOR TO AVOID INTERFERENCE PROBLEMS, USE A SCREEN CABLE AND A TELEPHONE SPLITTER): max. 50 m - min. 0.5 mm2

Buffer = 2 h

Temperature sensor: NTC 5 k 1%; Degree of resolution 0.1 ° C.
