Thermostatic Mixing Valve TVM-H DN25

Description

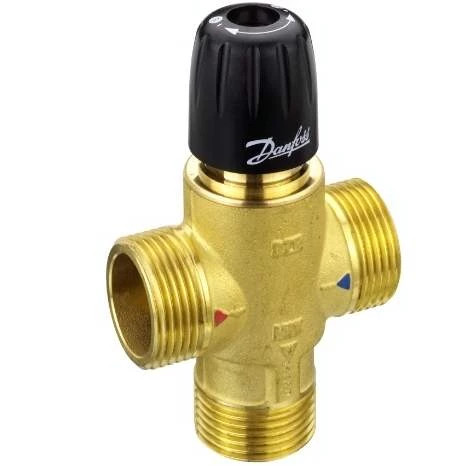

Thermostatic Mixing Valve Danfoss TVM-H DN 25

TVM-H limits and maintains constant Ievel of mixing temperature in heating applications.

The thermostatic mixing valve ensures a constant temperature of the mixed water at the outlet.

Advantages

• Constant temperature of the water at the outlet
• Variable setting of the nominal temperature range: 30 … 70°C
• Special design with anti-scalding coating
• System components: accessories and spare parts

Standard design

A thermostatic cartridge and a return spring ensure the constant blend temperature at the outlet.

Thanks to the design of the mixing valve, the thermostatic cartridge can be easily replaced in the installed valve if the performance decreases, which occurs due to normal wear and tear.

Product details

Gross weight 0.77 kg, Net weight 0.77 kg
Connection types External Thread
Description TVM-H DN 25, thermostatic mixing valve
Differential pressure range [bar] [Max] 5 bar
Factory setting [°C] 70 °C
Integrated non-return valve No
Kvs value with non-return valve [m3/h] 2.6 m³/h
Kvs value without non-return valve [m3/h] 3 m³/h
Label product Yes
Media temperature [°C] [Max] 100 °C
Pressure class PN 10
Product group Hot water balancing
REACH Candidate List substances >0.1% Lead
Temperature setting range [°C] [Max] 70 °C
Temperature setting range [°C] [Min] 30 °C
Type TVM-H
Valve body material DZR brass + antilimescale treatment
Valve size DN 25
