Description

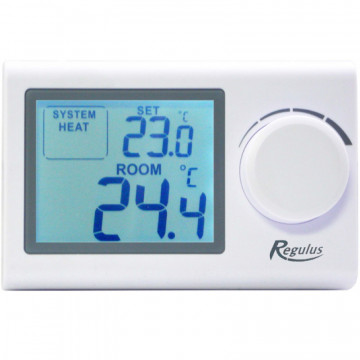

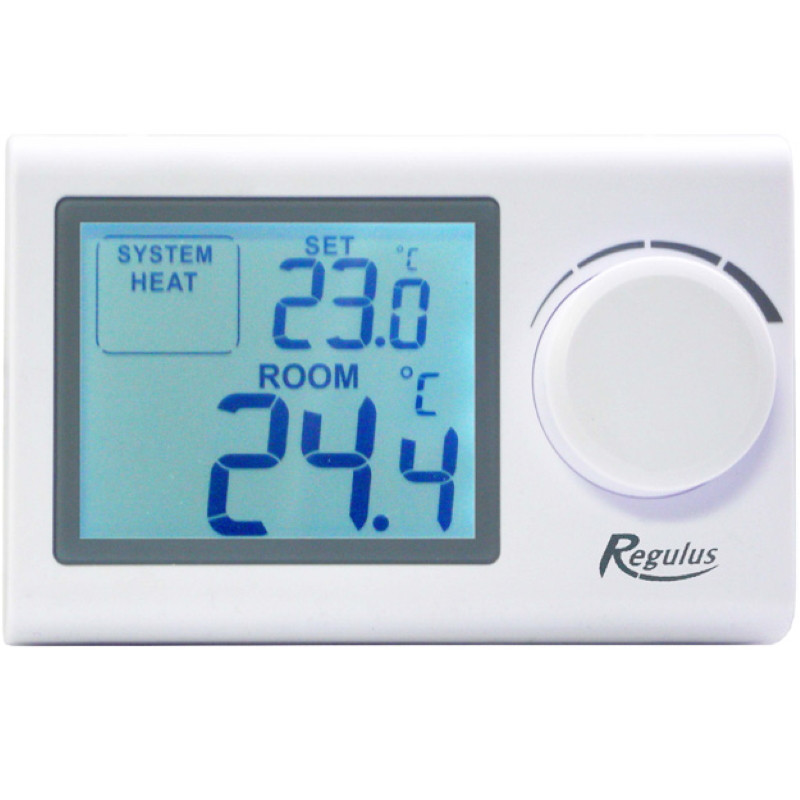

Regulus TP34 RF Room Thermostat
Simple wireless electronic room thermostat w. LCD display, for heating and cooling. It shows the room temperature, set temperature and actual thermostat state (heating/cooling/antifrost protection).
Battery operated, 2x AAA.
The receiver enables remote thermostatic control of a boiler or A/C, switching off the thermostat and manual control of a connected appliance.
The wireless digital thermostat is suitable to control temperature in a living room and is very easy to use. It allows you to control heating or cooling when the room temperature is lower or higher than set by the user.
Installation is very easy thanks to the step-by-step instructions.
Specifications
Transmitter (Thermostat)
1. Programmable: no
2. Displayed temperature range: 0-40 °C (in 0.1 °C increments)
3. Adjustable temperature range: 5-35 °C (in 0.5 °C steps)
4. Temperature measurement accuracy: ±1 °C (at 20 °C)
5. Power supply: 2x 1.5A AAA batteries, alkaline (not enclosed)
6. Load: 6(2) A, 230 V
7. Low Battery Indication: When the battery voltage drops below 2.7 volts, the symbol appears.
8. Standby power consumption: 30 μA, backlight ≤5,5 mA
9. Backlight colour: white
10. Dimensions: 120 x 77 x 28 mm (without support)

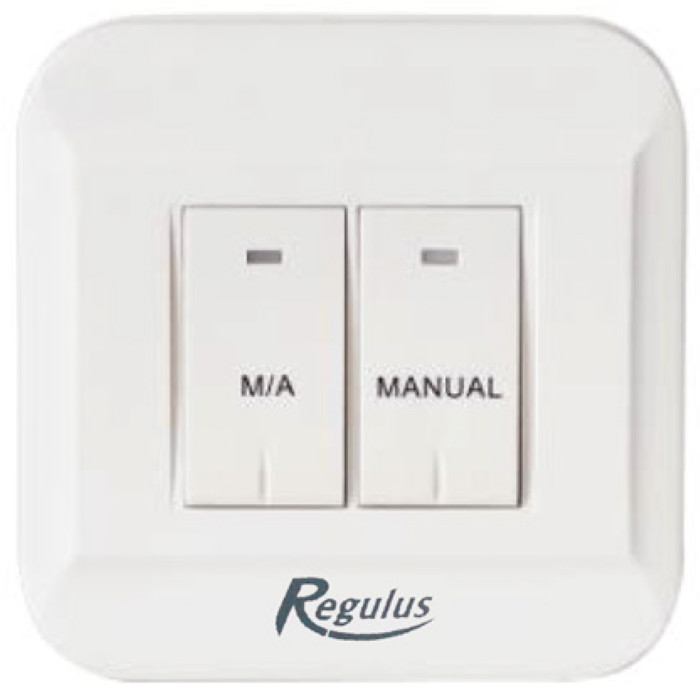

Receiver
1. Power supply: 230 V AC, 50 Hz
2. Operating frequency: 868,35 MHz
3. Transmission distance: approx. 100 m in open air
4. Consumption: 6 W
5. Max. load: 6(2) A, 230 V
6. Dimensions: 86 x 86 x 26 mm
