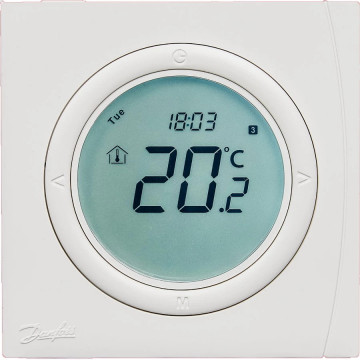

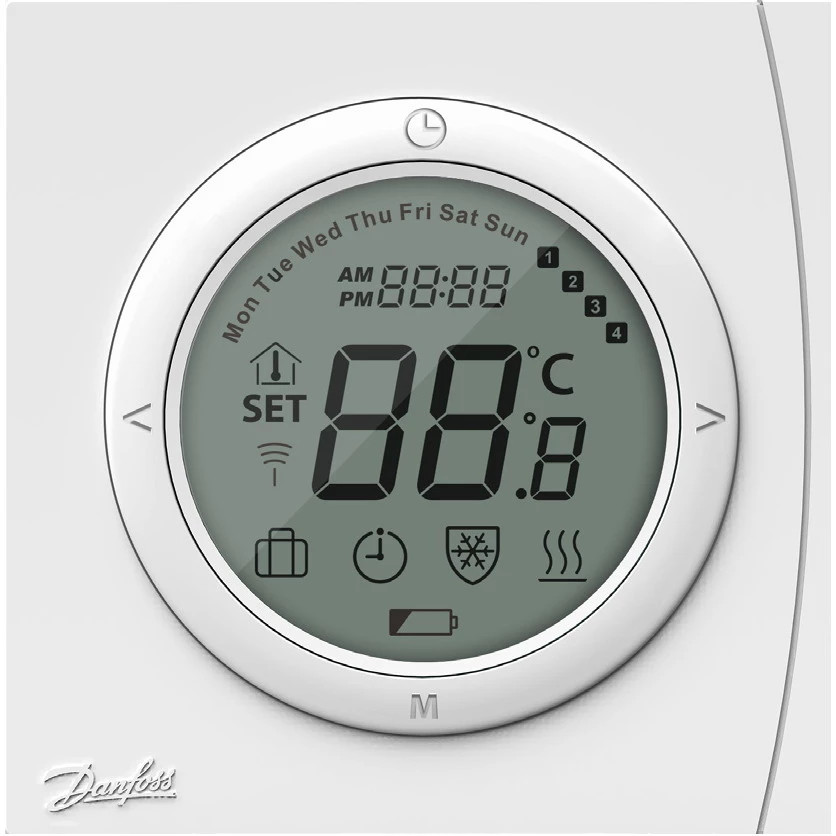

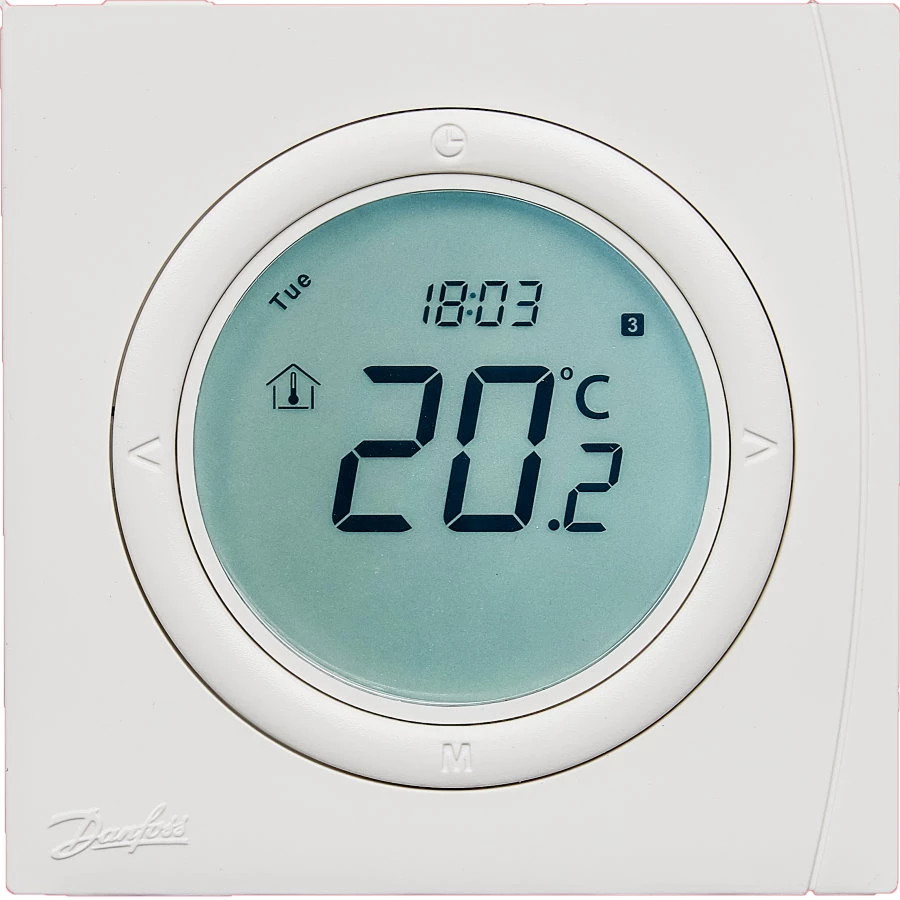

Name: TP5001RF+RX1-S RF Programmable Thermostat
Brand: Danfoss
SKU: 087N7936

Description

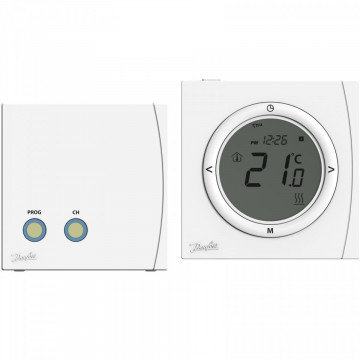

Danfoss TP5001RF+RX1-S, Battery powered RF digital electronic programmable room thermostat and mains powered single channel RF receiver

This model adds full heating schedule control to the features offered by the RET variants. The user can set 2 heating periods to ensure that the heating is either off or at a reduced temperature when they are away from home or asleep.

24 hour and 5/2 day scheduling
Increased levels of user control

Product details

Gross weight	0.45 kg
Net weight	0.36 kg

EAN

5702425239427

Ambient temperature [°C] [Max]	40 °C
Automatic daylight saving	Yes
Back lit display	Yes
Ball hardness test [°C]	75 °C
Battery type	2 x AA alkaline batteries
Built In sensor	Yes
Clock display	AM/PM or 24 hour display
Control pollution	Degree 2
Control Type	On/Off modulating control
Delayed start control	Yes
Depth [mm]	30 mm
Description	TP5001RF+RX1-S, Battery powered RF digital electronic programmable room thermostat and mains powered single channel RF receiver
Design standard	EN 60730-2-9
Displays time or temperature	Yes
Factory pre-set programmes	Yes
Frequency [Hz]	50/60 Hz
Frost protection	yes
Height [mm]	86 mm
Low battery indicator	Yes

On/Off control	Yes
On/Offs Per Day	4
Optimum start control	Yes
Output relay rating inductive [A]	1 A
Output relay rating resistive [A]	3 A
Override function	Yes
Product Group	Programmable Room Thermostats
Rated impulse voltage [kV]	2.5 kV
Remote sensor option	No
RF frequency [MHz]	433.92 MHz
RF range [m]	30 m
Schedule type	5/2 day, 24 hour
Service Interval timer	Yes
Supply Type	Batteries for thermostat + 230Vac for receiver
Switch type	SPDT
Temperature [°C] [Max]	35 °C
Temperature [°C] [Min]	5 °C
Type	TP5001
Width [mm]	86 mm
