UPA 15-90 Home Booster Pump

Description

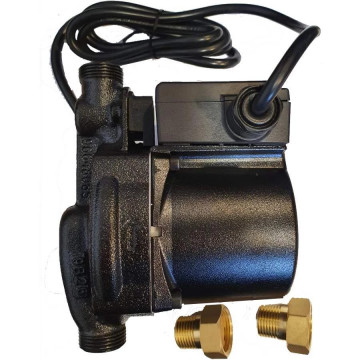

Grundfos UPA 15-90 Home Booster Pump

UPA is a compact domestic high-efficiency in-line boosting pump designed for residential homes. UPA increases water pressure to required levels at showers, taps and other tapping points.

Suitable for

• Basement
• Bathroom
• Domestic hot water recirculation
• Kitchen
• Living space
• Loft

Grundfos UPA 15-90 is a domestic booster designed for pressure boosting of drinking water supplied from an external source in residential homes. The UPA booster pumps increase the pressure of domestic water to make the required pressure available at showers, taps and other tapping points.

This pump has an inlet and outlet port of 3/4. The pressure rating of the pump corresponds with PN 10 and a port-to-port length of 160 mm. The UPA 15-90 provides the comfort of constant water pressure with automatic start and stop. This is controlled by the integrated flow switch ensuring optimal start/stop of the booster pump according to demand. The design is robust and built upon corrosion-free materials and cataphoresis-coated cast iron pump housing to ensure a long lifetime. The pump is a canned rotor pump type where pump and motor form an integral unit without shaft seal. This pump must always be installed with horizontal motor shaft. This booster has a 2-pole, asynchronous, squirrel-cage motor with built in impedance protection and short circuit proof. The bearings are lubricated by the pumped liquid. These constructional features ensure maintenance-free operation. The pump has the following approvals CE,WEEE,UKCA-UPA.

• Integrated flow switch: Automatic start and stop according to demand
• Low noise level
• Easy installation: plug and pump compact inline booster
• Integrated non-return valve
• Improved corrosion resistance
• Built in motor protection
