UPS RB-4027 800VA pure sine wave

Description

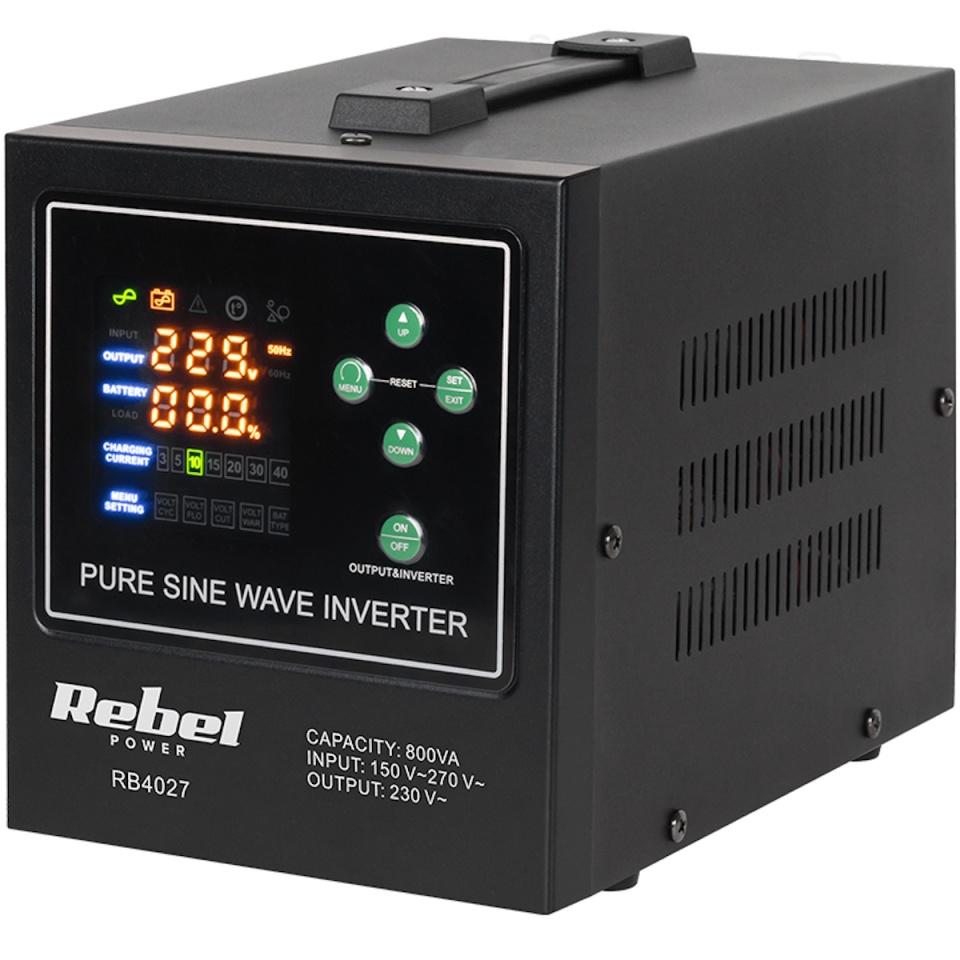

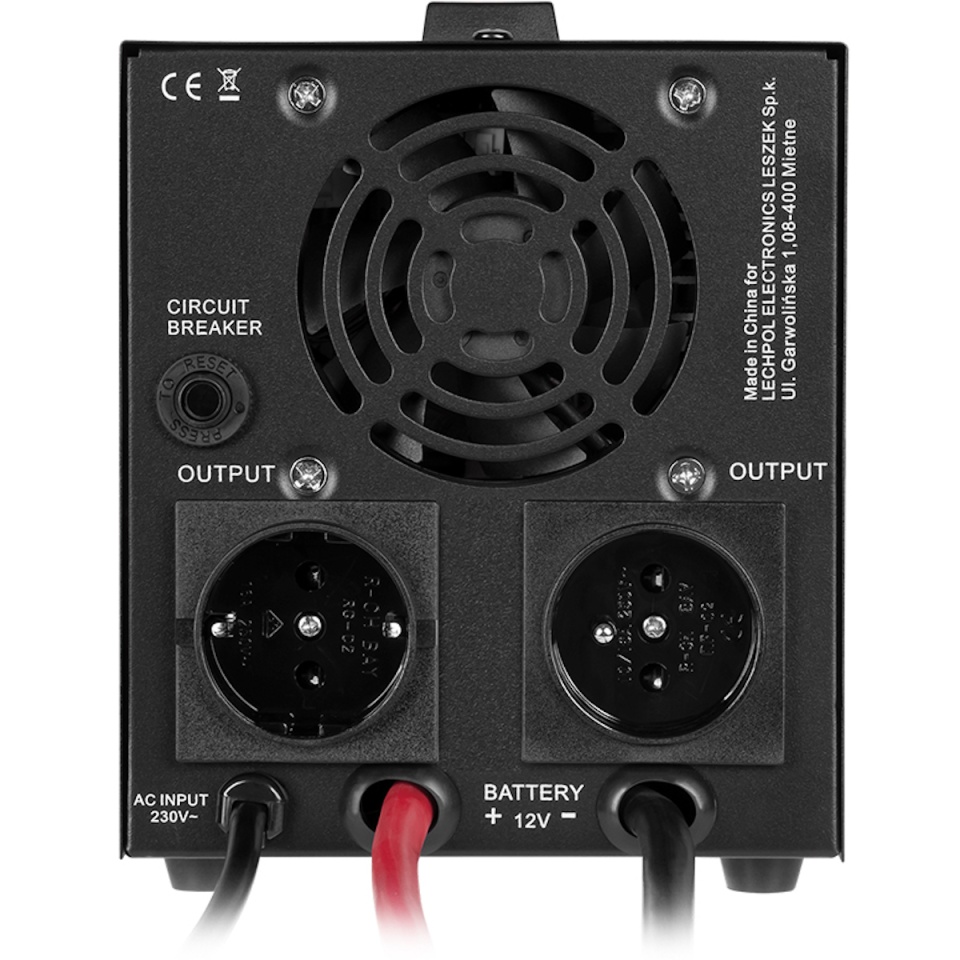

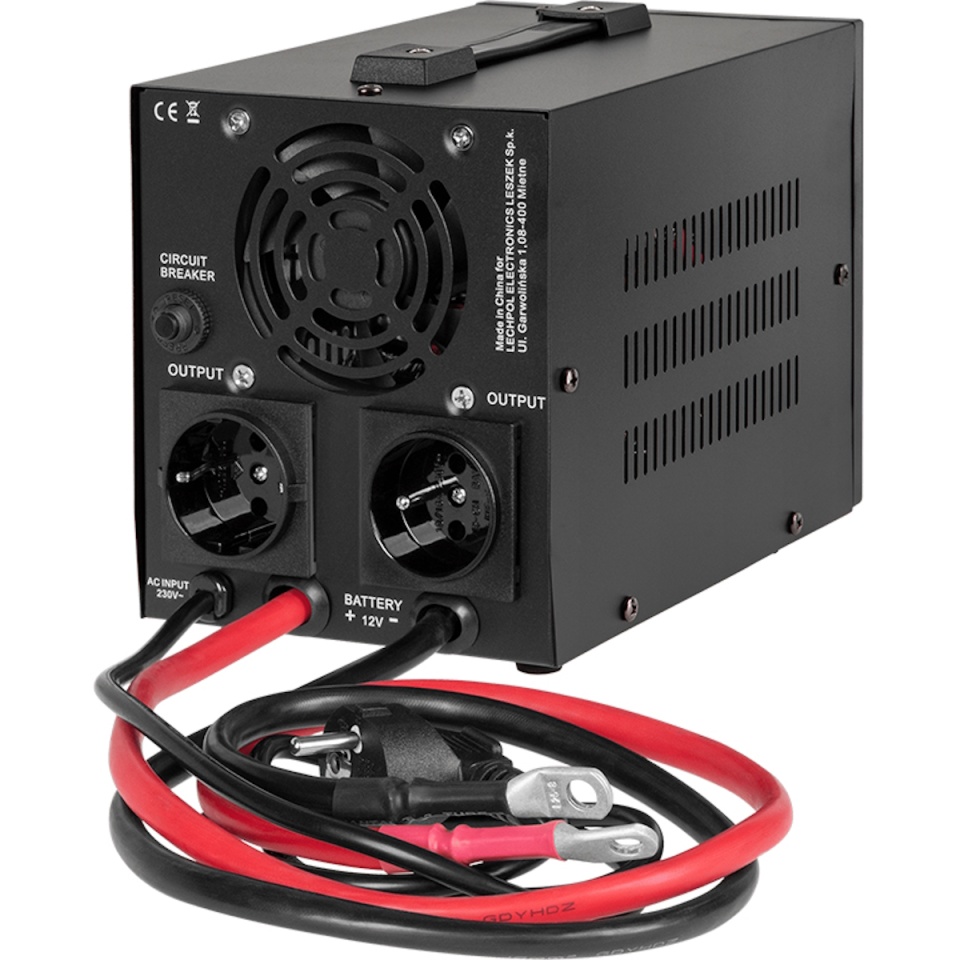

Emergency power supply device UPS Rebel RB-4027 800 VA / 500 W with pure sine wave and charging function

Rebel emergency power supply is designed for household and office use. Do not use this device with specialized equipment or apparatuses (e.g. industrial, medial equipment).

For optimum operation quality, use this device with gel or certain acid batteries (acid batteries which reach 14,5 V during charging), with maximum capacity of 100 Ah.

For optimum battery selection, refer to estimate formula below:
100 W of load = → 10 A current consumption for the battery.

Specifications

Nominal power 500 W
Battery voltage 12 VDC
Overvoltage protection point 15 VDC
AC Input voltage 150~270 VAC
AC Input frequency 45~60 Hz
AC Output voltage AC: 190-245 VAC ±8% / Inv. 230 VAC ±3%
AC Output frequency 50/60 Hz ±0.5 Hz
AC Output waveform Pure sine wave
AC output efficiency ≥ 85% (DC to AC)
Charge current 3 -15 A
Conversion time ≤ 4 ms
Protections Overload, short circuit, overvoltage, undervoltage
Environment temperature 0-40° C
Environment humidity 10-90%
Weight 4,7 kg
Dimensions 138 x 226 x 155 mm
