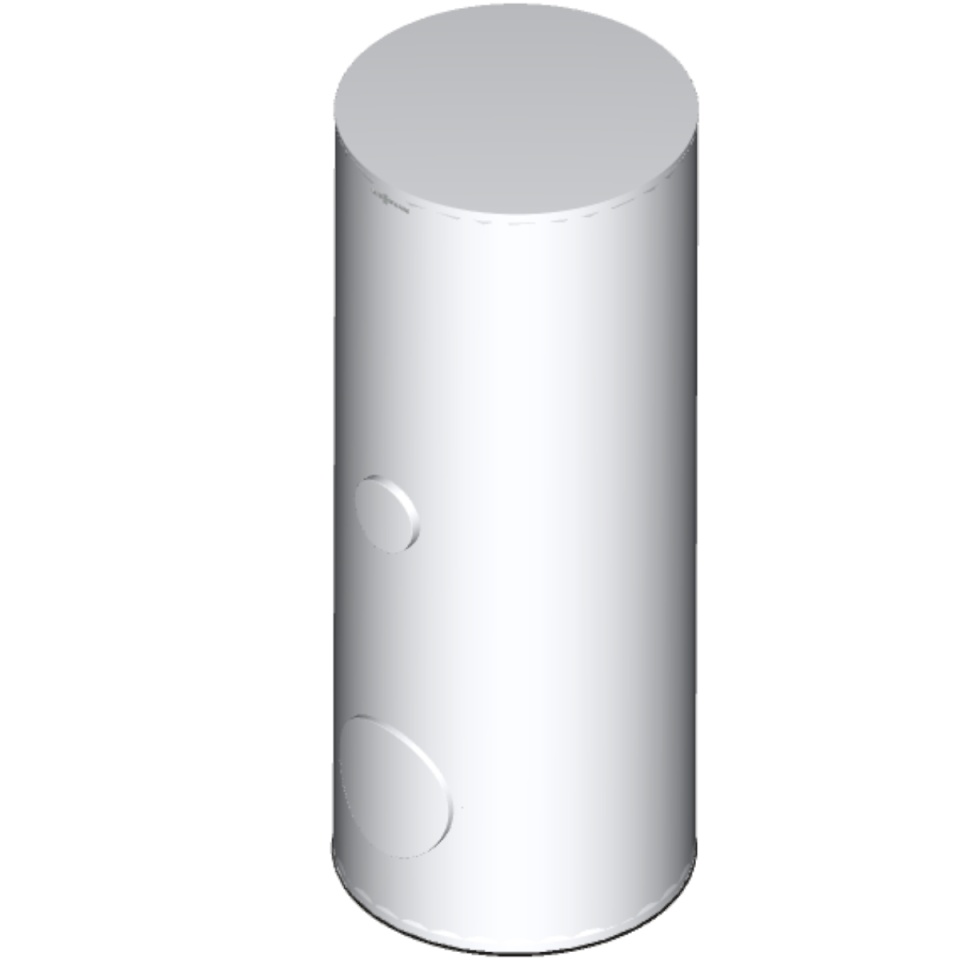

Viessmann Vitocell 100-B CVBC 300L Bivalent Solar Water Heater (Vitopearlwhite)

The Viessmann Vitocell 100-B CVBC 300-liter bivalent indirect cylinder (Manufacturer Part No. 7097564) is an high-efficiency domestic hot water (DHW) heating solution engineered for dual-energy systems. Equipped with two internal heating coils, it seamlessly integrates solar thermal collectors with auxiliary heating systems such as gas boilers, biomass units, or heat pumps.

Key Features & Benefits

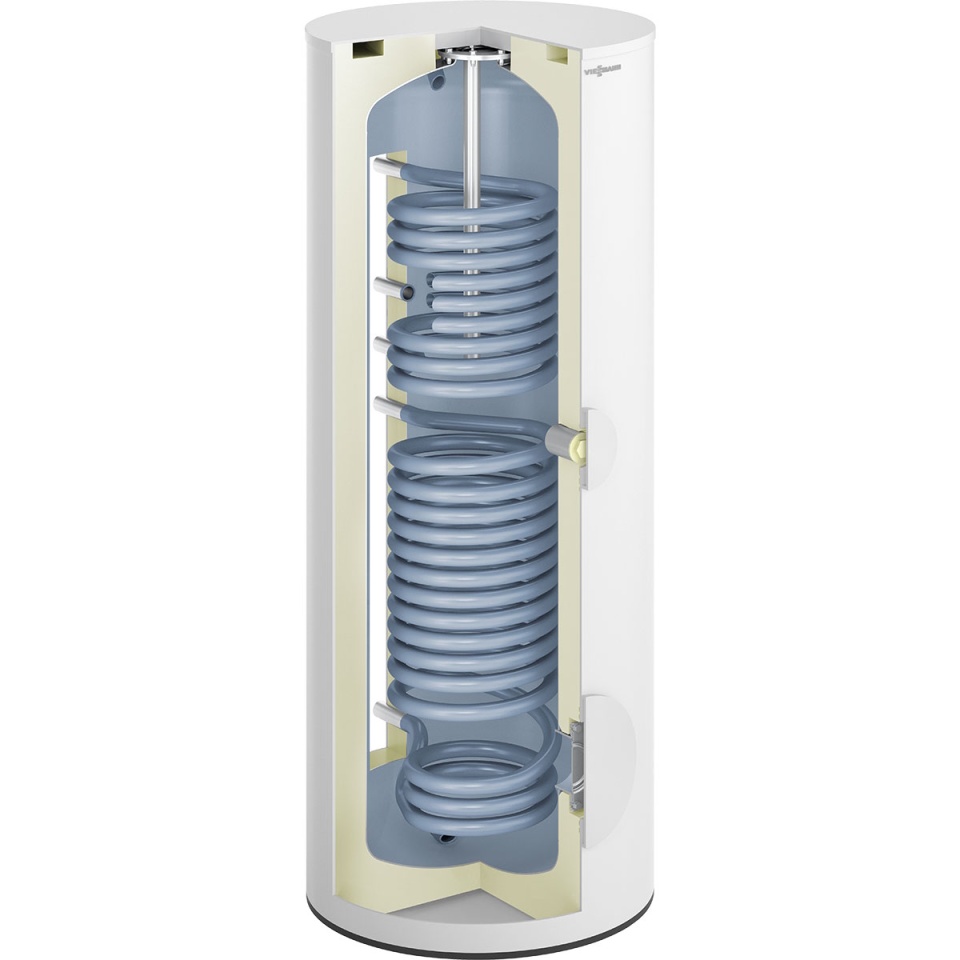

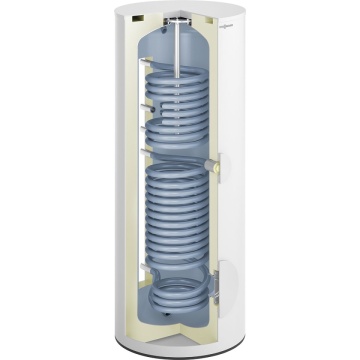

Bivalent Dual-Coil Design: The lower solar coil efficiently harnesses thermal energy across the entire water volume, while the upper auxiliary coil tops up temperature on demand.
Superior Ceraprotect Enameling: Heavy-duty internal steel tank coating paired with a protective magnesium anode for long-lasting corrosion defense.
ErP Class B Energy Efficiency: High-grade rigid polyurethane foam insulation limits standby heat losses to just 65 W.
Vitopearlwhite Premium Finish: Sleek, modern aesthetic suitable for clean technical utility rooms.
Easy Inspection & Serviceability: Features a front inspection opening for straightforward maintenance and descaling.

Technical Specifications

Technical Specification	Parameter / Value
Manufacturer / Brand	Viessmann
Model Series	Vitocell 100-B (Type CVBC S2)
Part Number (SKU)	7097564
Storage Capacity	300 Liters
Heat Exchanger Type	2 Coils (Bivalent / Twin Coil)
Solar Coil Surface Area (Lower)	1.5 m²
Auxiliary Coil Surface Area (Upper)	0.9 m²
ErP Energy Efficiency Class	B
Standby Heat Loss	65 W
Color	Vitopearlwhite
Dimensions (Diameter × Height)	667 × 1734 mm
Net Weight	approx. 161 kg

Frequently Asked Questions (FAQ)

Q: Which heating heat sources are compatible with the Vitocell 100-B 300L?

A: It is compatible with flat-plate or evacuated tube solar thermal systems, combined with gas condensing boilers, wood/pellet boilers, or heat pumps.

Q: Does it include corrosion protection out of the box?

A: Yes, it comes equipped with Ceraprotect double enamel coating and a built-in magnesium sacrificial anode. An impressed current anode can also be retrofitted for maintenance-free operation.
