Water Softener AS-B-BD75
Description

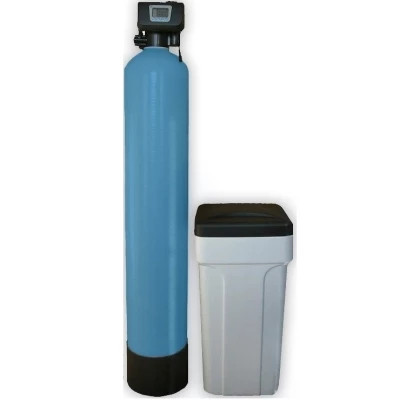

Water Softener Fitaqua AS-B-BD75
The advantages of the softener:
- Softened water foams better (thereby saving soap and washing powders)
- Eliminates limescale (thereby saving energy, pipelines, household appliances etc).
RX control valve enables setting the working parametres adjusted to water quality. Due to this feature one can use the device more economically. Regeneration is initiated automatically, which allows to save time and money.
RX control valves work on the basis of modern technology of rotary ceramic disks installed inside the valve. These disks are made of high-quality ceramics resistant to corrosion and attrition. This technology assures perfect sealing inside the valve, which, in turn, gives a long-lasting and non-failure operation. Ceramic elements of the control valve are resistant to precipitation of impurities (for example iron), therefore the impurities do not accumulate inside the valve.
The advantages of RX Control Valve:
- ceramic control valve
- time and volume control
- volume-immediate or volume-delayed regeneration
- working cycle indicator
- additonal manual change of cycle
- automatic keyboard lock-up
- bypass - possibility to switch off the valve without the necessity to turn off the water system.
Maximum capacity = 13.2 m3; nominal flow rate = 3 m3/h
Resin tank dimensions. Diameter/Height =13"/54"
Resin volume = 75 liters
Device dimensions WxHxH = 338/338/1556 mm
Salt tank dimensions WxHxH = 500/500/1080 mm
Salt tank volume = 190 liters; The volume of the salt content = 100 liters
Electric voltage / frequency = 220-240 V/ 50-60Hz; Working voltage = 12 V (1000 mA)
Power consumption = 5 W
Working temperature: 2-38 grdC
Pressure: 2-6 bar
Amount of salt required for regeneration = 15.5 kg
Regeneration control type: volumetric/temporal
