Description

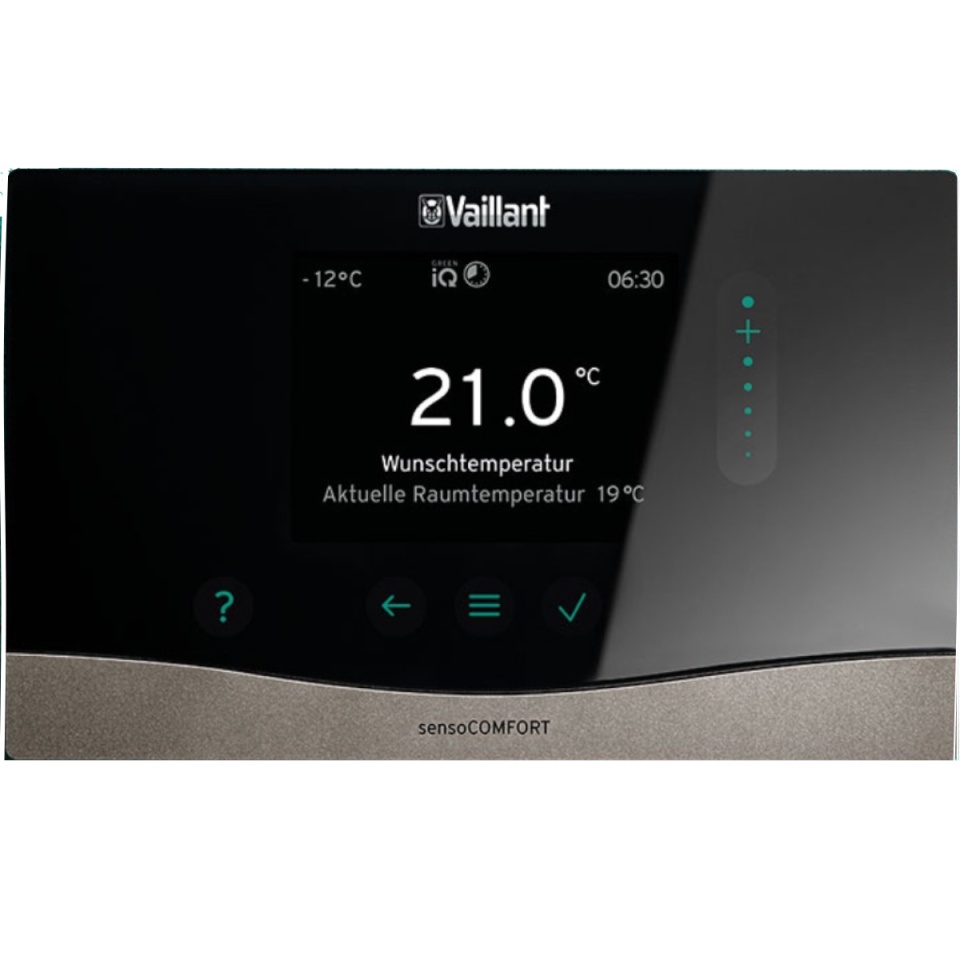

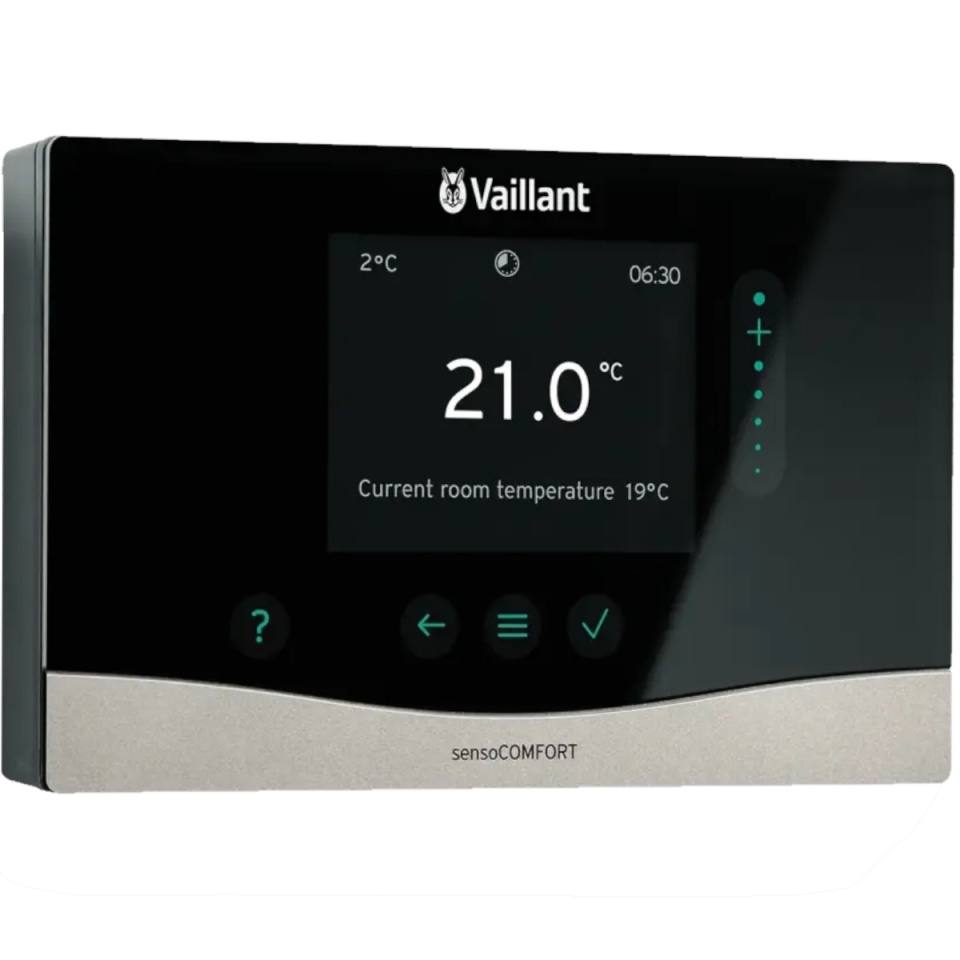

Weather-compensated system control Vaillant sensoCOMFORT VRC 720f

Monitoring your comfort has never been more intuitive

• Define your exact individual comfort with a tap
• Integrate your control into your existing smart home system – e.g. Google Home, Amazon Echo and Apple Home Kit
• Stay flexible with a future-ready system control and integrate renewables effortlessly e.g. solar thermal, photovoltaics or ventilation
• Configure your system hassle-free — all Vaillant appliance interfaces are aligned
• Enjoy modern high-quality control design – suitable for today’s living spaces

Your home deserves a smart control solution. In combination with our myVAILLANT connect internet module and our myVaillant App, the sensoCOMFORT VRC 720 gives you complete control over your heating system – both at home and on the road.

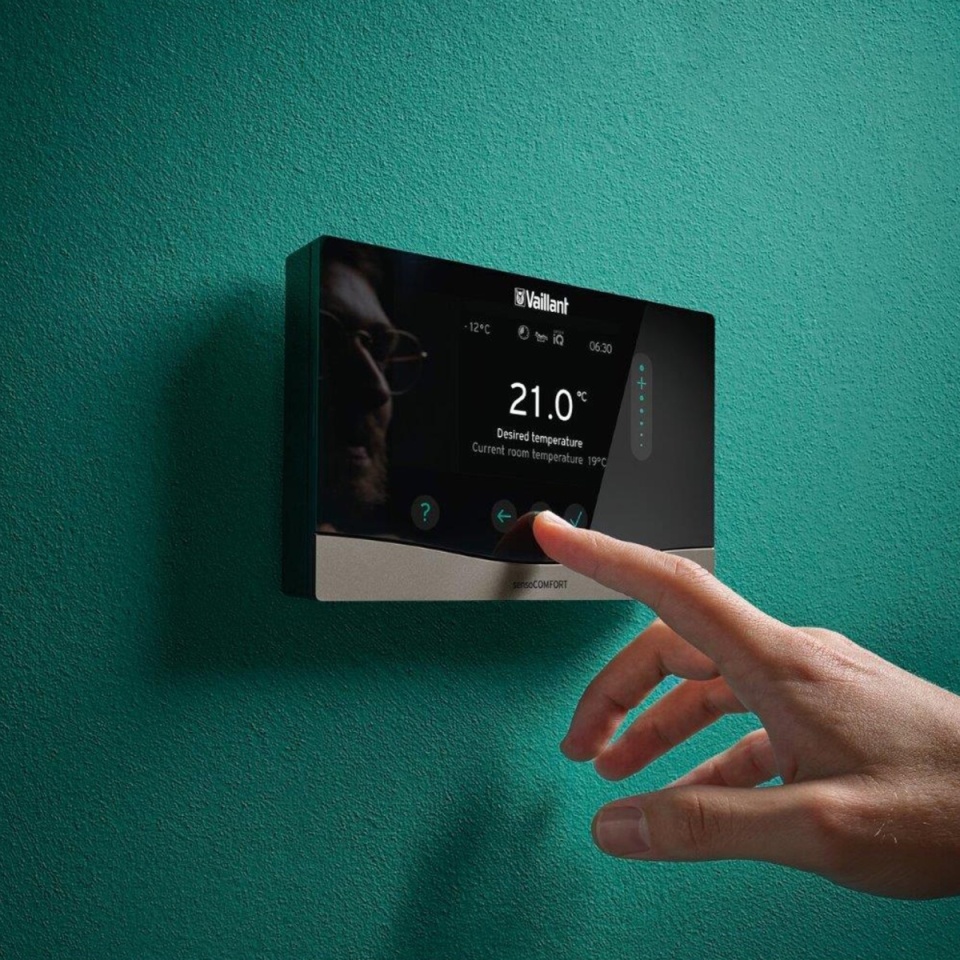

Individualise your comfort with a finger tap

Your feel-good temperature is just a few taps away. Thanks to the new sensoCOMFORT high-resolution display with a 3.5” screen, operation is more convenient than ever. Six sensitive touch buttons and convenient touch slider simplify interaction even in dark spaces – thanks to their backlight function. The clear menu structure and the question-guided personalisation assistant enable fast navigation and setting. And if you are missing some information, just use the question button for further help. With our myVaillant App you can control your heating from anywhere: set exact temperatures, define time windows exactly to the minute and use special functions like absence mode.

Enrich your current smart home system

Make your smart home even smarter with our new sensoCOMFORT. You can conveniently integrate it into existing systems like Google Home, Amazon Echo and Apple Home Kit. Just like all smart home components, sensoCOMFORT is of course capable of speaking in KNX. With sensoCOMFORT you get the missing piece to complete your smart home system and therefore maximise your individual comfort.

Upgrade your heating system with renewables

From solar thermal to photovoltaics and ventilation – with sensoCOMFORT you get a future-ready system control that is optimised for controlling all components in parallel. Of course, you can also manage your domestic hot water needs conveniently. Our sensoCOMFORT gives you the opportunity to handle several heating circuits and thus complex systems, e.g. for multifamily house applications.

Aligned system design for maximum ease of use

Our new boiler generation, sensoCOMFORT and myVaillant App have one essential thing in common: an aligned menu structure. After getting to know the appliance interface, you are ready to handle sensoCOMFORT and myVaillant App, as well. This makes operating your new control as convenient as possible.

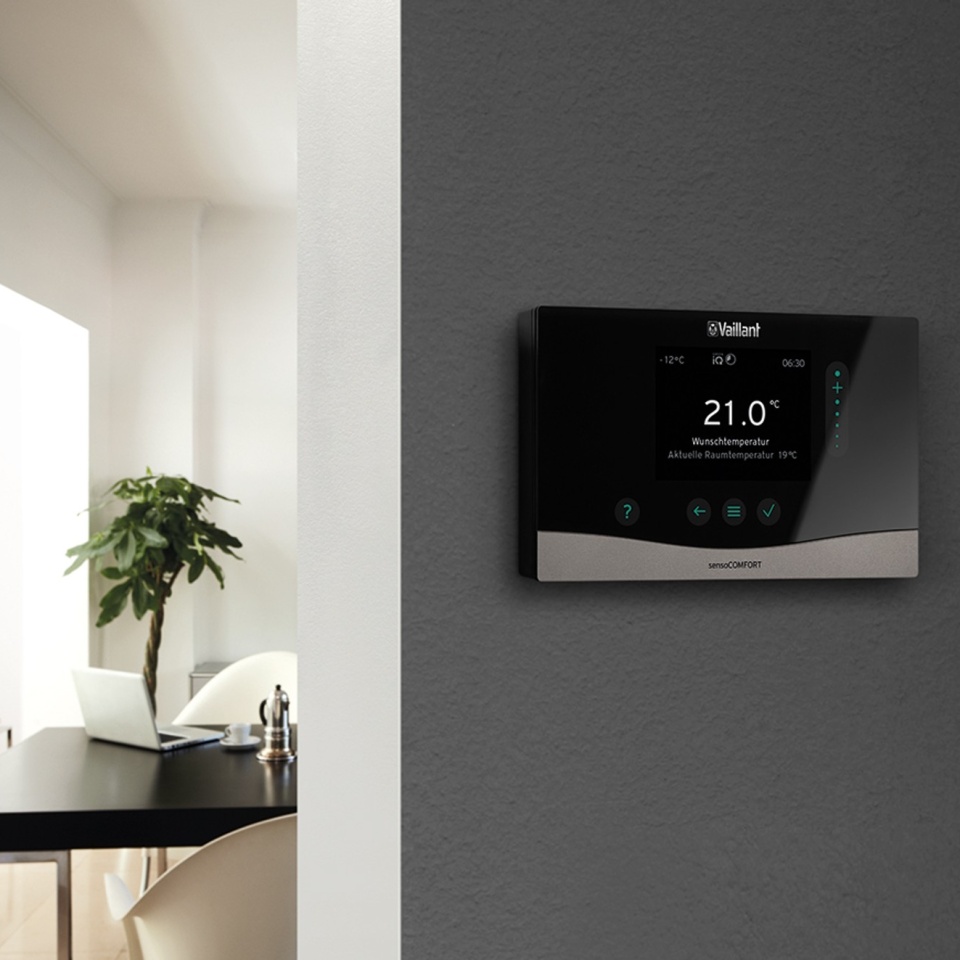

Designed for your contemporary home

A system control should fit naturally into your home. Bearing in mind how important your home is to you, we designed our new sensoCOMFORT accordingly. The high-quality design is eye-catching and familiar because it resembles modern smart devices. Thus, it integrates perfectly into modern living spaces. The same applies to our myVaillant App: the app impresses with a clean and modern design.

Technical data VRC 720f

Controller

Battery type LR06
Measured pulse voltage 330 V
Frequency band 868.0… 868.6 MHz
Maximum transmission power < 25 mW
Range in free field ≤ 100 m
Range in building ≤ 25 m
Grade of dirtiness 2
Protection degree IP 20
Protection class III
Temperature for ball pressure test 75 ℃
Max. permissible ambient temperature 0 … 45 ℃
Actual humidity room air 35 … 95 %
Operating mode Type 1
Dimensions: Height 109 mm, Width 175 mm, Depth 27 mm

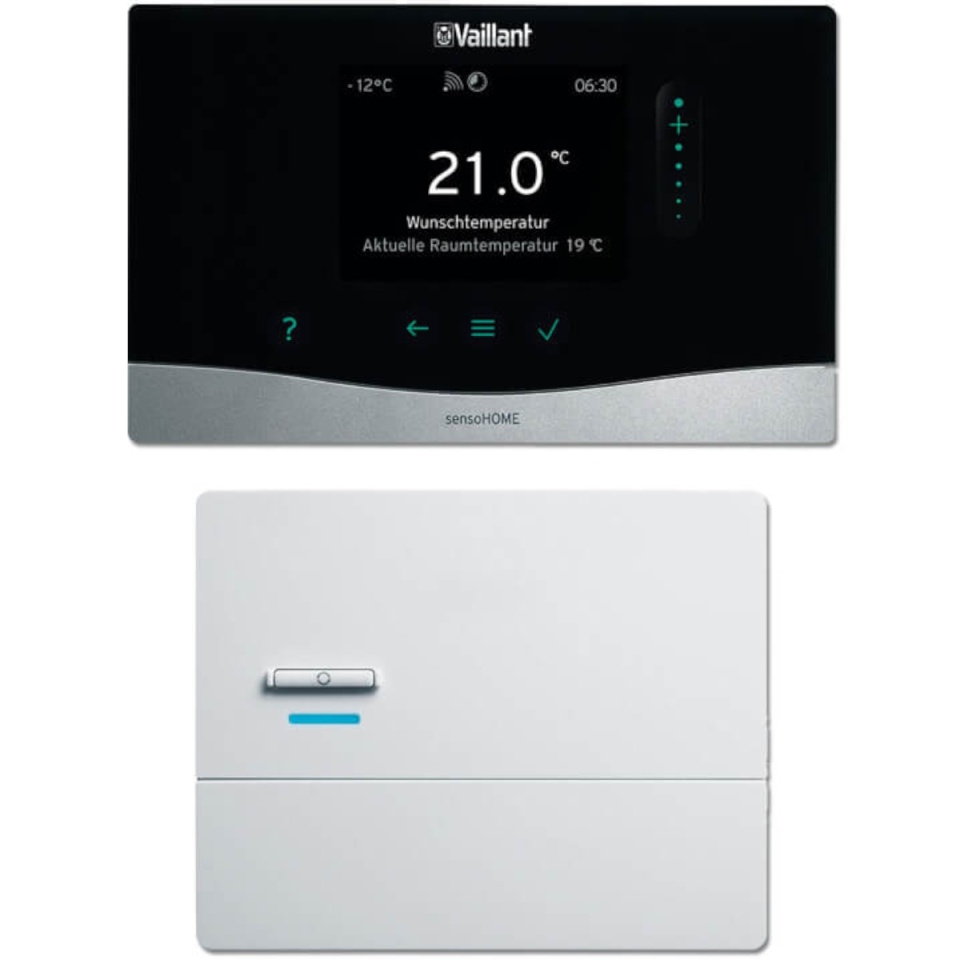

Radio receiver unit

Measuring voltage 9 … 24 V
Measuring current < 50 mA
Measured pulse voltage 330 V
Frequency band 868.0… 868.6 MHz
Maximum transmission power < 25 mW
Free field range ≤ 100 m
In-building range ≤ 25 m
Filter rating 2
Protection type IP 21
Protection class III
Temperature for ball pressure test 75 ℃
Max. ambient temperature permissible 0 … 60 ℃
Relative room humidity 35 … 90 %
Connection cable cross-section 0.75 … 1.5 mm²
Height 115.0 mm, Width 142.5 mm, Depth 26.0 mm

Outdoor temperature sensor

Power supply: Solar cell with energy storage device
Operating reserve without power supply (with charged energy storage device) ≈30 days
Measured pulse voltage 330 V
Frequency band 868.0 … 868.6 MHz
Maximum transmission power < 25 mW
Range in free field ≤ 100 m
Range in building ≤ 25 m
Grade of dirtiness 2
Protection type IP 44
Protection class III
Temperature for checking ball pressure 75 ℃
Temperature permissible working temperature -40 … 60 ℃
Height 110 mm, Width 76 mm, Depth 41 mm
