Wi-Fi Interface Module MAC-587IF-E

Description

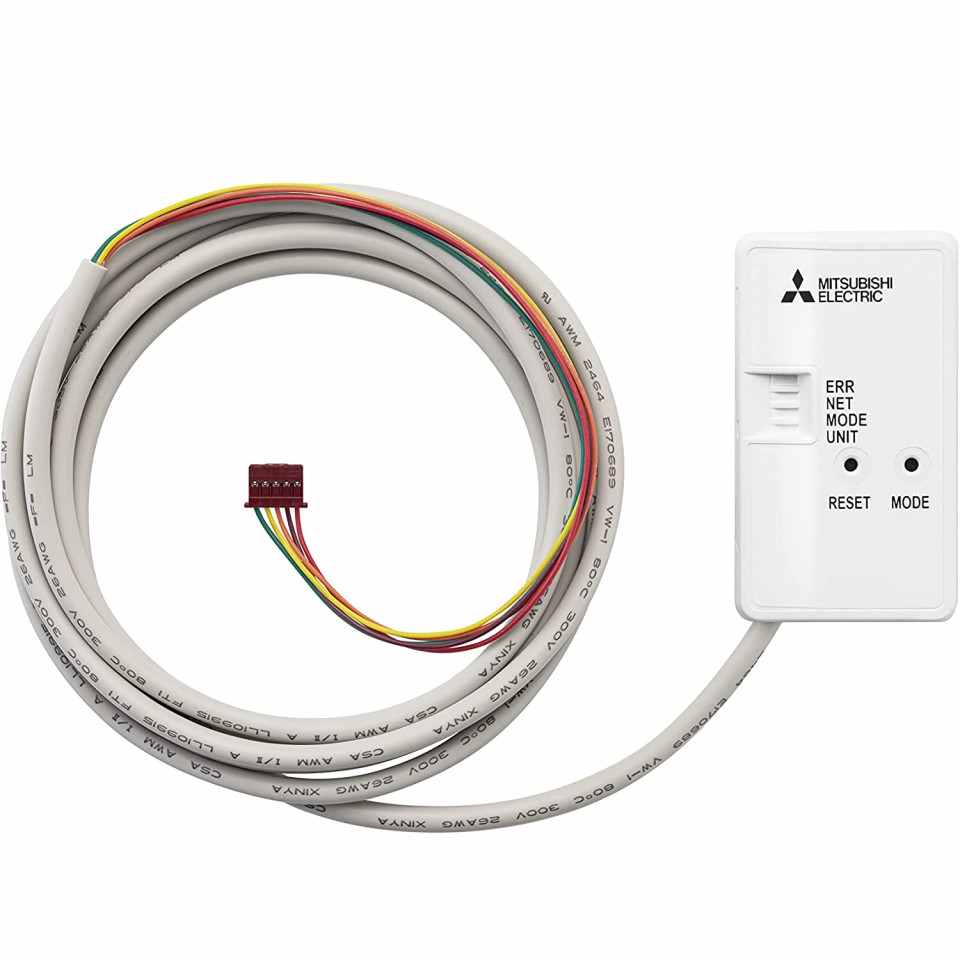

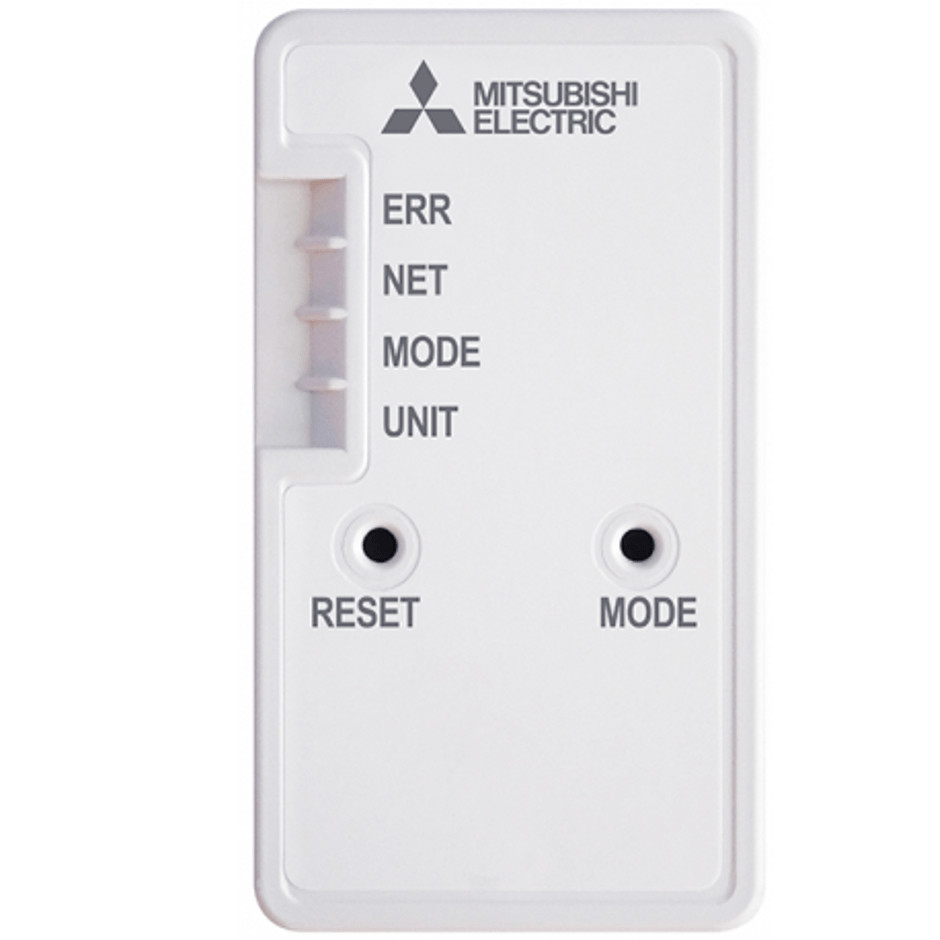

Mitsubishi Electric MAC-587IF-E Air Conditioner Wi-Fi Interface Module

• Control your air conditioning via Wi-Fi with the Mel Cloud app from Mitsubishi Electric
• Mel Cloud is compatible with Mitsubishi Electric Air Conditioners
• Mel Cloud can also be controlled by voice, thanks to the compatibility with Google Home and Amazon Alexa voice assistants
• With the support of the "Cloud" for transferring and receiving information and this dedicated WiFi interface (MAC-587IF-E), you can easily control your system via PC, tablet or smartphone.

Specifications

Input Voltage DC12.7 V (from indoor unit)
Power consumption MAX 2 W
Size H×W×D 73.5×41.5×18.5 mm
Weight (g) 95 (including cable)
Transmitter power level (MAX) 20 dBm @IEEE 802.11b
RF channel 1ch ~ 13ch (2412~2472 MHz)
Radio protocol IEEE 802.11b/g/n (20)
Encryption AES
Authentication WPA2-PSK
Software Ver XX.00
Length of cable 2,040 mm.

Applicable Models

MSZ-FT25,35,50VG
MSZ-AP15,20VG
MSZ-AP25,35,42,50,60,71VG
MSZ-EF18,22,25,35,42,50VGW,B,S
MSZ-BT20,25,35,50VG
MSZ-HR25,35,42,50,60,71VF
MSZ-DW25,35,50VF
MSZ-DM25,35VA
MFZ-KT25,35,50,60VG
MFZ-KW25,35,50,60VG
MLZ-KP25,35,50VF
S-series models
P-series models
MSY-TP35,50VF
MSZ-FH25,35,50VE2
MSZ-SF15,20VA
MSZ-SF25,35,42,50VE3
MSZ-GF60,71VE2
MSZ-WN25,35VA
