Wifi Thermostat Baxi Mago BSB

Description

Wifi Thermostat Baxi Mago BSB

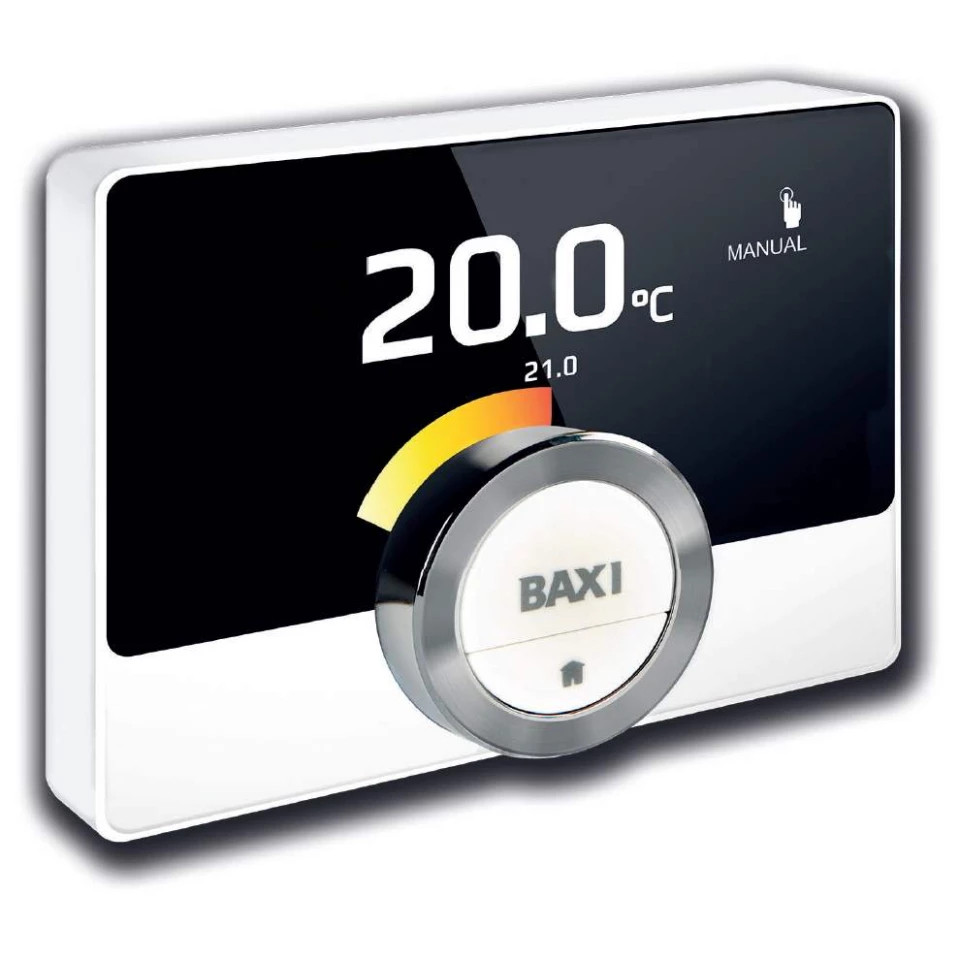

Baxi Mago BSB (thermostat + Gateway GTW17) is a programmable modulating thermostat with integrated Wi-Fi, designed to control Baxi boilers.

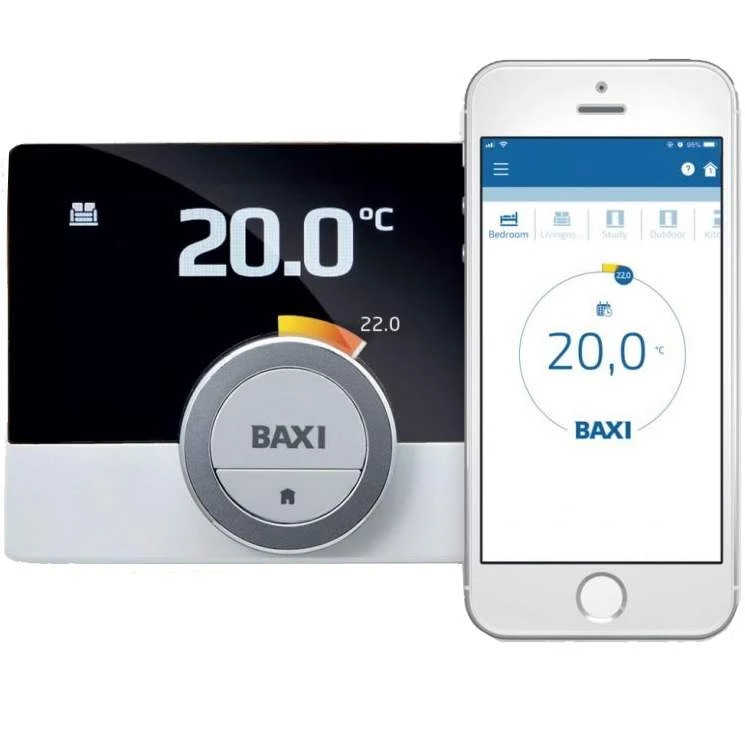

Mago allows you to control the comfort of your home (central heating / heat pump) via the Internet, using a dedicated application.

Connecting a Baxi Mago modulating thermostat to a boiler or to a heat pump results in a + 3% increase in heating energy efficiency (class 5 device).

Baxi Mago uses 3 different languages ​​to communicate with the boiler or heat pump - this model is for the following versions:

BAXI Luna Platinum +, Nuvola Platinum +, Power 32 thermal power plants that use BSB communication protocols and require connection to Baxi Mago via an adapter (Gateway GTW17).

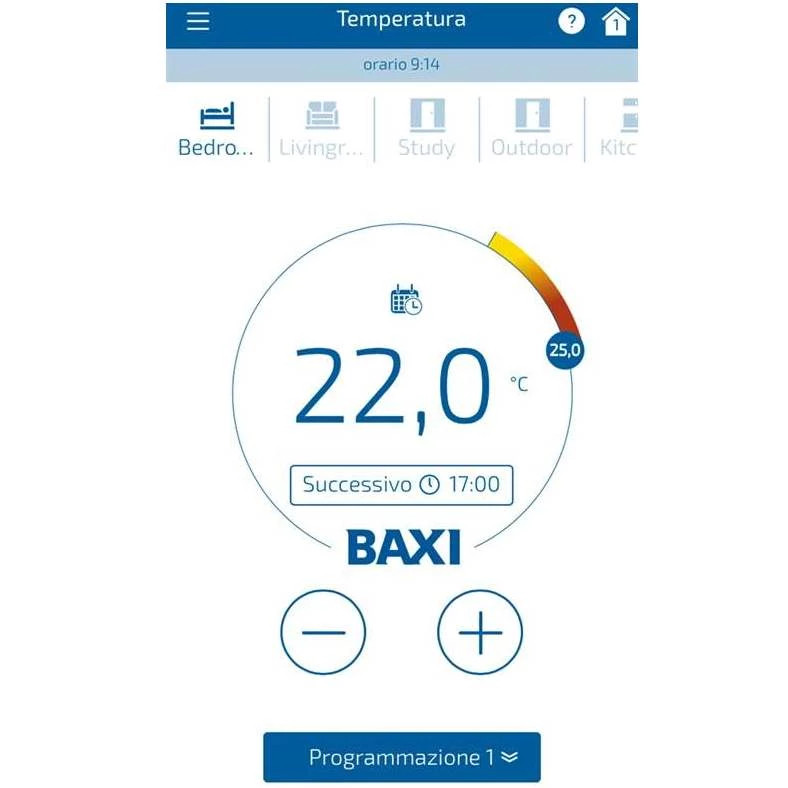

The application for iOS / Android can be installed on a mobile phone / tablet and allows the control of one or more homes by: controlling the ambient temperature and domestic hot water according to customizable programs, adjusting climate slopes, viewing operating parameters, displaying power consumption, notifications detailed breakdowns, Holiday mode setting, etc.

Width x height x depth: 121 x 90 x 29 mm.
Power supply: BUS cable connection voltage 24 V ± 5%;
Maximum power consumption 2 W.
Electrical connection: Max. dedicated Baxi Mago bus cable: 50 m.

Maximum cable resistance: 2 x 5 Ohm.
Wi-Fi connection: 2.4 Ghz (802.11 b / g) supported frequency band.
Room temperature measuring range: between 0 ° C and 50 ° C.
Temperature control zone: between 10 ° C and 30 ° C.
